| Code | Name | Period | Specifications |
|---|---|---|---|

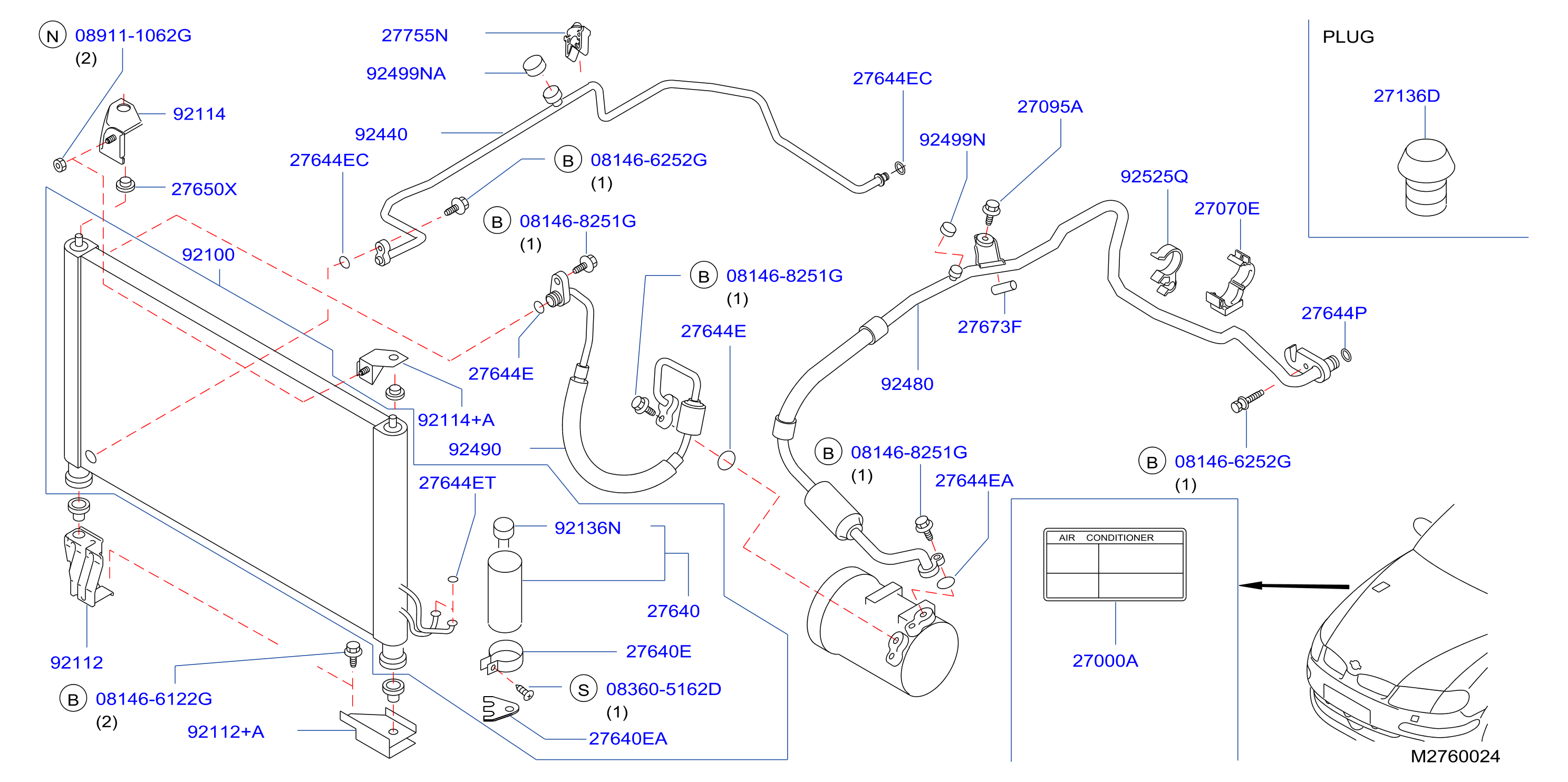

| 276A-003-01 | Condenser Liquid Tank Piping Condenser Liq Tank Assy | 2001 - 2002 |
BODY: 3HB
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01121S603E | 27095A | SCREW | ||
| 0143601261 | 27095A | SCREW | ||
| 0165801501 | 27136D | PLUG | ||
| 081466122G | 081466122G | BOLT - HEX | ||
| 081466252G | 081466252G | BOLT - HEX | ||
| 081468251G | 081468251G | BOLT - HEX | ||
| 083605162D | 083605162D | SCREW - MACHINE | ||
| 089111062G | 089111062G | NUT - HEX | ||
| 2422610V10 | 27070E | CLIP | ||
| 270905M400 | 27000A | LABEL - AIR CONDITIONER | ||
| 4627150L10 | 27755N | INSULATOR | ||
| 4627160U05 | 27755N | INSULATOR | ||
| 92100BM405 | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92100BM407 | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92112BM400 | 92112 | BRACKET ASSY - CONDENSER | ||
| 92112BM411 | 92112+A | BRACKET ASSY - CONDENSER | ||
| 92114AW000 | 92114 | BRACKET - CONDENSER | ||
| 92114AW010 | 92114+A | BRACKET - CONDENSER | ||
| 92114BM400 | 92114 | BRACKET - CONDENSER | ||
| 92114BM410 | 92114+A | BRACKET - CONDENSER | ||
| 921184M400 | 27650X | MOUNTING - RUBBER, CONDENSER UPPER | ||
| 921304M400 | 27640 | TANK ASSY - LIQUID | ||
| 92131AU420 | 27640 | TANK ASSY - LIQUID | ||
| 92131BM405 | 27640 | TANK ASSY - LIQUID | ||
| 92131BM40A | 27640 | TANK ASSY - LIQUID | ||
| 92131BM40B | 27640 | TANK ASSY - LIQUID | ||
| 92135BM400 | 27640E | BRACKET - LIQUID TANK | ||
| 92135BM405 | 27640E | BRACKET - LIQUID TANK | ||
| 921366J000 | 92136N | SENSOR ASSY - PRESSURE | ||
| 92145BM405 | 27640EA | BRACKET - LIQUID TANK | ||
| 92440BN001 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92440BN005 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92440BN900 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92471N8210 | 27644EC | SEAL - O RING | ||
| 92472N8210 | 27644E | SEAL - O RING | ||
| 92473N8210 | 27644P | SEAL - O RING | ||
| 92474N8210 | 27644EA | SEAL - O RING | ||
| 92480BM411 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480BM412 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480BM415 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480BN90A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92490BM401 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92490BM402 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92490BU101 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924999F500 | 92499N | CAP - CHARGE VALVE | ||
| 924999F600 | 92499NA | CAP - CHARGE VALVE | ||
| 9255164Y01 | 92525Q | CLIP | ||
| 925574M400 | 27673F | PROTECTOR - CLAMP TUBE |
