| Code | Name | Period | Specifications |
|---|---|---|---|

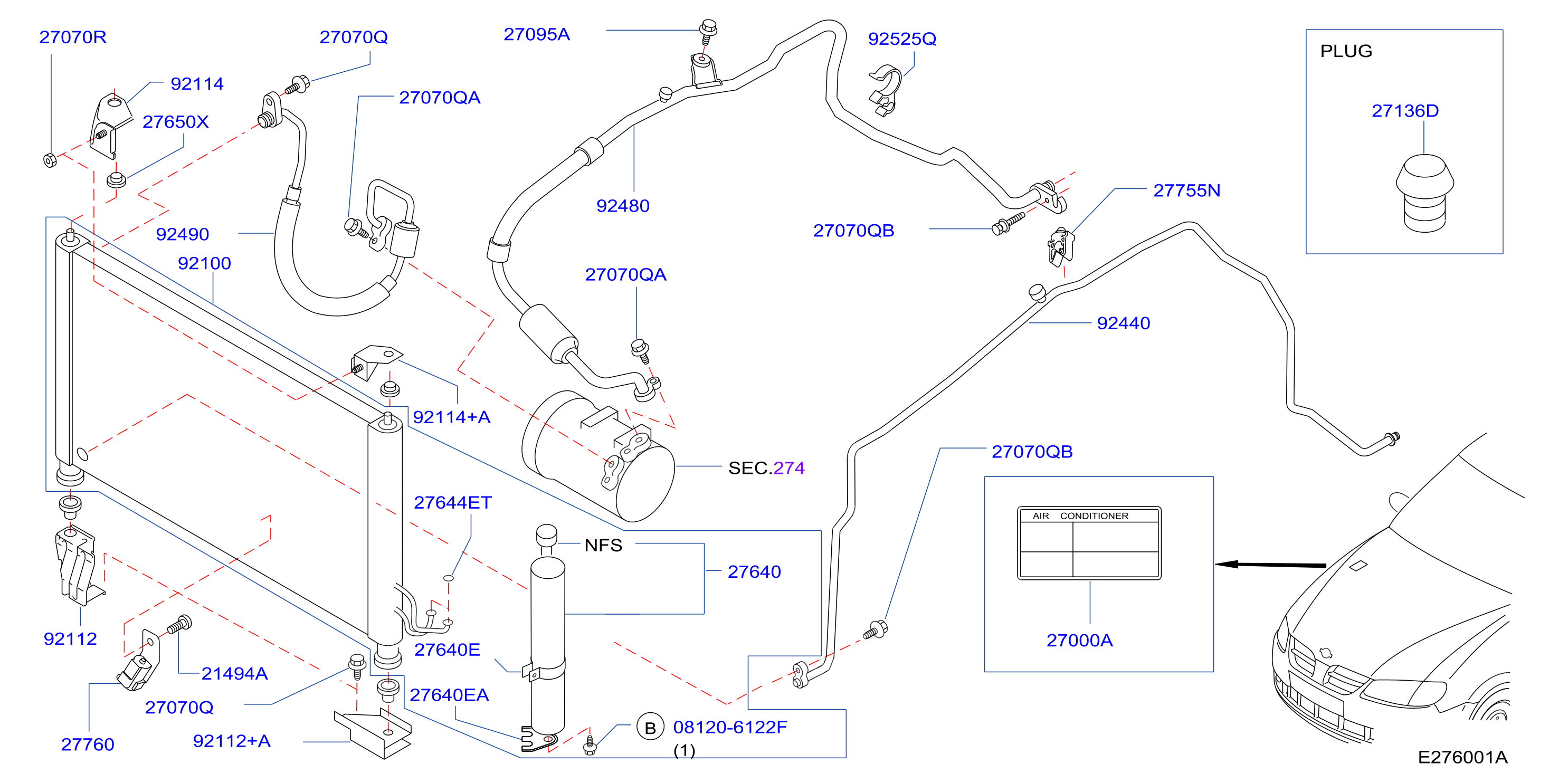

| 276A-002-01 | Condenser Liquid Tank Piping Condenser Liq Tank Assy | 2002 - ... |
BODY: 3HB
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01121S603E | 27095A | SCREW | ||
| 01125S616E | 27070Q | BOLT | ||
| 01125S803E | 21494A | BOLT | ||
| 0121100QAA | 27070R | NUT | ||
| 0122100QAA | 27070QA | BOLT | ||
| 0143601261 | 27095A | SCREW | ||
| 0165801501 | 27136D | PLUG | ||
| 081206122F | 081206122F | BOLT - HEX | ||
| 1406900QAB | 27070QB | BOLT | ||
| 270905M400 | 27000A | LABEL - AIR CONDITIONER | ||
| 27710BN800 | 27760 | SENSOR ASSY - AMBIENT | ||
| 4627150L10 | 27755N | INSULATOR | ||
| 4627160U05 | 27755N | INSULATOR | ||
| 92100BM405 | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92100BM407 | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92112BM400 | 92112 | BRACKET ASSY - CONDENSER | ||
| 92112BM411 | 92112+A | BRACKET ASSY - CONDENSER | ||
| 92114AW000 | 92114 | BRACKET - CONDENSER | ||
| 92114AW010 | 92114+A | BRACKET - CONDENSER | ||
| 92114BM400 | 92114 | BRACKET - CONDENSER | ||
| 92114BM410 | 92114+A | BRACKET - CONDENSER | ||
| 921184M400 | 27650X | MOUNTING - RUBBER, CONDENSER UPPER | ||
| 921304M400 | 27640 | TANK ASSY - LIQUID | ||
| 92131AU420 | 27640 | TANK ASSY - LIQUID | ||
| 92131BM405 | 27640 | TANK ASSY - LIQUID | ||
| 92131BM40A | 27640 | TANK ASSY - LIQUID | ||
| 92131BM40B | 27640 | TANK ASSY - LIQUID | ||
| 92135BM400 | 27640E | BRACKET - LIQUID TANK | ||
| 92135BM405 | 27640E | BRACKET - LIQUID TANK | ||
| 92145BM405 | 27640EA | BRACKET - LIQUID TANK | ||
| 92440BN001 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92440BN005 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92440BN900 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92471N8210 | 27644ET | SEAL - O RING | ||
| 92472N8210 | 27644ET | SEAL - O RING | ||
| 92480BM411 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480BM412 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480BM415 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480BN90A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92490BM401 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92490BM402 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92490BU101 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 9255164Y01 | 92525Q | CLIP |
