| Code | Name | Period | Specifications |
|---|---|---|---|

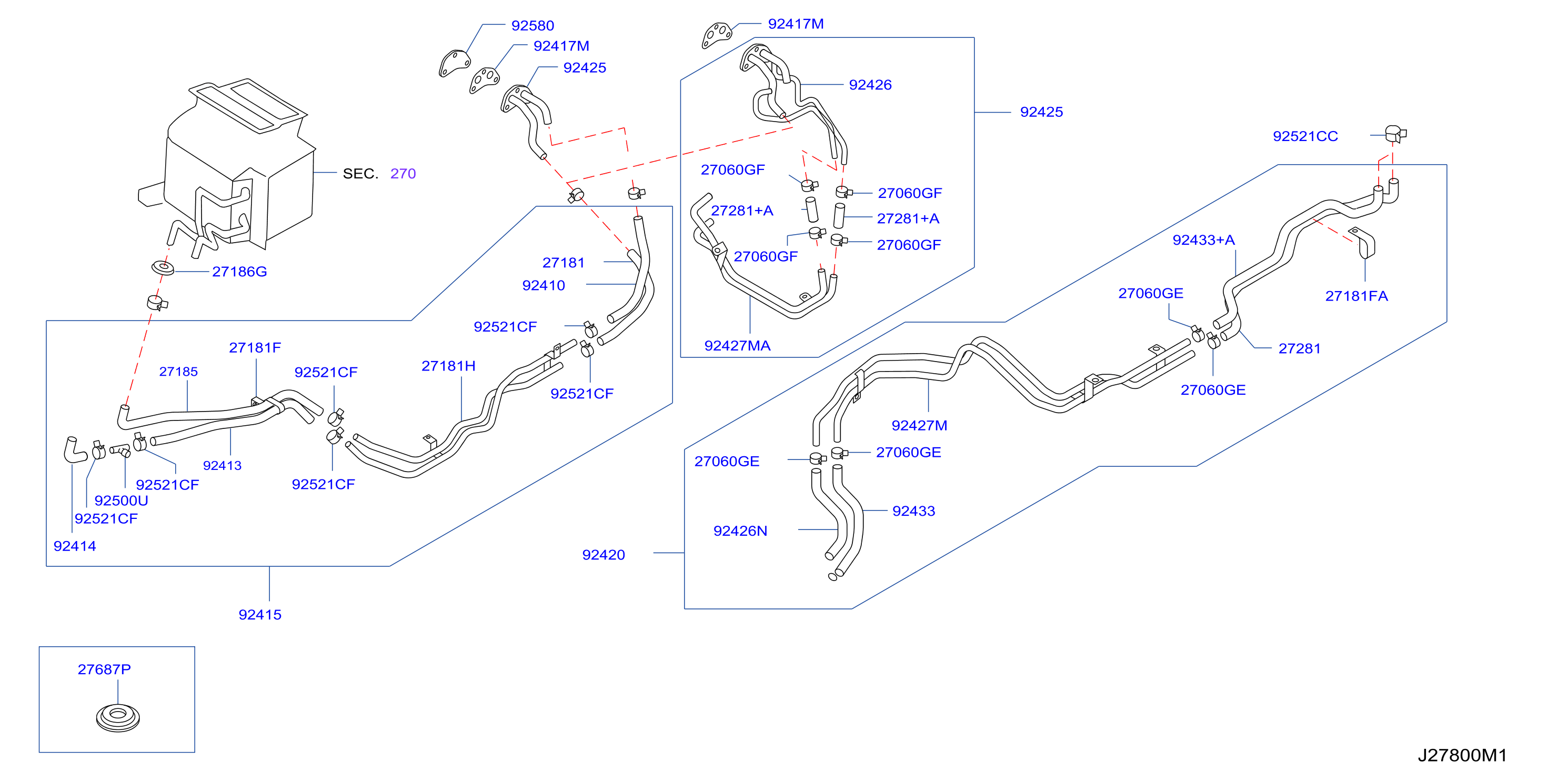

| 278C-003-01 | Heater Piping | 2007 - 2011 |
BODY: PNL
ENGINE: ZD30DD
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0155800191 | 92521CC | CLIP | ||
| 0155800221 | 92521CF | CLIP | ||
| 0155800291 | 92521CC | CLIP | ||
| 0155800511 | 27060GE | CLAMP | ||
| 0155800521 | 92521CC | CLIP | ||
| 0165800971 | 27687P | PLUG | ||
| 92401VW205 | 27181 | HOSE - FRONT HEATER | ||
| 92401VX100 | 27185 | HOSE - FRONT HEATER, 3 | ||
| 92401VZ21A | 27185 | HOSE - FRONT HEATER, 3 | ||
| 92402VW205 | 27181H | TUBE - WATER HEATER | ||
| 92402VZ21A | 27181H | TUBE - WATER HEATER | ||
| 92403VW200 | 92415 | TUBE ASSY - FRONT HEATER | ||
| 92403VW201 | 92415 | TUBE ASSY - FRONT HEATER | ||
| 92403VW205 | 27185 | HOSE - FRONT HEATER, 3 | ||
| 92403VW20A | 92415 | TUBE ASSY - FRONT HEATER | ||
| 92403VW20B | 92415 | TUBE ASSY - FRONT HEATER | ||
| 92403VZ20A | 92415 | TUBE ASSY - FRONT HEATER | ||
| 92410VZ20A | 92410 | HOSE - HEATER, OUTLET | ||
| 92410VZ21A | 92410 | HOSE - HEATER, OUTLET | ||
| 92411VW205 | 92410 | HOSE - HEATER, OUTLET | ||
| 92411VW20B | 92410 | HOSE - HEATER, OUTLET | ||
| 92413VW205 | 92413 | HOSE - HEATER, OUTLET | ||
| 92413VW20A | 92413 | HOSE - HEATER, OUTLET | ||
| 92413VZ02A | 92413 | HOSE - HEATER, OUTLET | ||
| 92413VZ21A | 92413 | HOSE - HEATER, OUTLET | ||
| 92414VW205 | 92414 | HOSE ASSY - HEATER | ||
| 92414VZ21A | 92414 | HOSE ASSY - HEATER | ||
| 92417VW200 | 92417M | GASKET - HEATER TUBE | ||
| 92420VZ15A | 92420 | HOSE - REAR HEATER, INLET | ||
| 92423VZ15A | 92426 | TUBE - REAR HEATER, INLET | ||
| 92425VW200 | 92425 | TUBE - REAR HEATER | ||
| 92425VW20A | 92425 | TUBE - REAR HEATER | ||
| 92425VW220 | 92425 | TUBE - REAR HEATER | ||
| 92425VW221 | 92425 | TUBE - REAR HEATER | ||
| 92425VW222 | 92425 | TUBE - REAR HEATER | ||
| 92426VW220 | 92427MA | TUBE ASSY - HEATER | ||
| 92426VW222 | 92427MA | TUBE ASSY - HEATER | ||
| 92427VX215 | 92427M | TUBE ASSY - HEATER | ||
| 92428VW220 | 27281+A | HOSE - REAR HEATER, 1 | ||
| 92428VW700 | 27281 | HOSE - REAR HEATER, 1 | ||
| 92436VX100 | 92433 | HOSE - WATER A | ||
| 92438VW700 | 92433+A | HOSE - WATER A | ||
| 92500VW006 | 92500U | CONNECTOR - HEATER HOSE | ||
| 92551VW205 | 27181F | CLIP | ||
| 92560VW200 | 92580 | GROMMET | ||
| 9258078E00 | 27186G | GROMMET - RUBBER |
