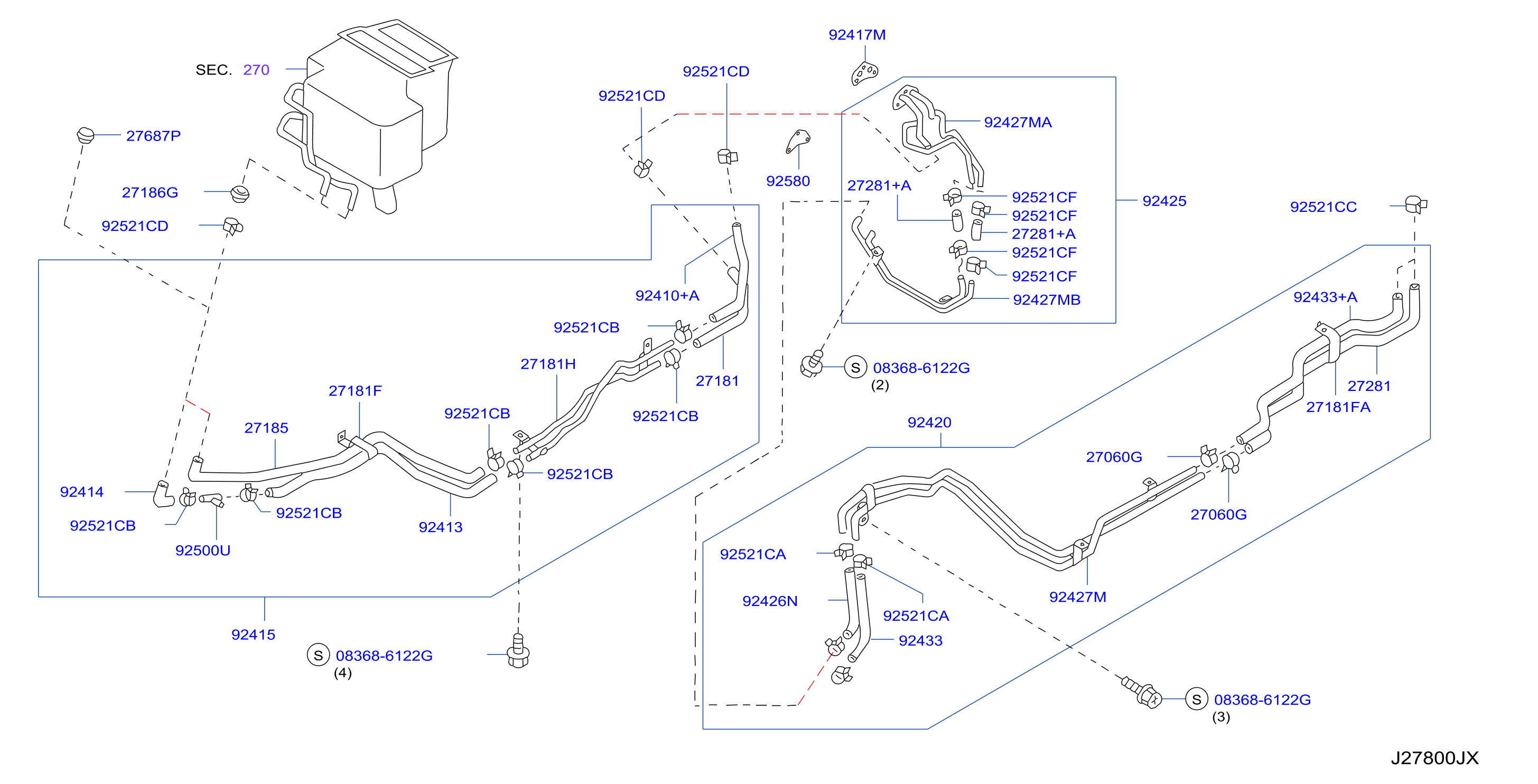

Parts in this diagram 40
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155500203 | 92521CA | CLIP | |||
| 0155500261 | 92521CA | CLIP | |||
| 0155800191 | 27060G | CLAMP | |||
| 0155800211 | 92521CA | CLIP | |||
| 0155800221 | 92521CB | CLIP | |||
| 0155800281 | 92521CA | CLIP | |||
| 0155800291 | 92521CC | CLIP | |||
| 0155800321 | 27060G | CLAMP | |||
| 0155800331 | 92521CD | CLIP | |||
| 0155800461 | 27060G | CLAMP | |||
| 0155800471 | 92521CA | CLIP | |||
| 0155800521 | 92521CC | CLIP | |||
| 0165800971 | 27687P | PLUG | |||
| 083686122G | 083686122G | SCR - HEX HD, PP W | |||
| 92401VW205 | 27181 | HOSE - FRONT HEATER | |||
| 92402VW205 | 27181H | TUBE - WATER HEATER | |||
| 92403VW200 | 92415 | TUBE ASSY - FRONT HEATER | |||
| 92403VW201 | 92415 | TUBE ASSY - FRONT HEATER | |||
| 92403VW205 | 27185 | HOSE - FRONT HEATER, 3 | |||
| 92403VW20A | 92415 | TUBE ASSY - FRONT HEATER | |||
| 92403VW20B | 92415 | TUBE ASSY - FRONT HEATER | |||
| 92411VW205 | 92410+A | HOSE - HEATER, OUTLET | |||
| 92413VW205 | 92413 | HOSE - HEATER, OUTLET | |||
| 92413VW20A | 92413 | HOSE - HEATER, OUTLET | |||
| 92414VW205 | 92414 | HOSE ASSY - HEATER | |||
| 92417VW200 | 92417M | GASKET - HEATER TUBE | |||
| 92425VW200 | 92425 | TUBE - REAR HEATER | |||
| 92425VW20A | 92425 | TUBE - REAR HEATER | |||
| 92425VW220 | 92425 | TUBE - REAR HEATER | |||
| 92425VW221 | 92425 | TUBE - REAR HEATER | |||
| 92425VW222 | 92425 | TUBE - REAR HEATER | |||
| 92426VW220 | 92427MA | TUBE ASSY - HEATER | |||
| 92426VW222 | 92427MA | TUBE ASSY - HEATER | |||
| 92427VW221 | 92427MB | TUBE ASSY - HEATER | |||
| 92427VX215 | 92427M | TUBE ASSY - HEATER | |||
| 92428VW220 | 27281+A | HOSE - REAR HEATER, 1 | |||
| 92500VW006 | 92500U | CONNECTOR - HEATER HOSE | |||
| 92551VW205 | 27181F | CLIP | |||
| 92560VW200 | 92580 | GROMMET | |||
| 9258078E00 | 27186G | GROMMET - RUBBER |
