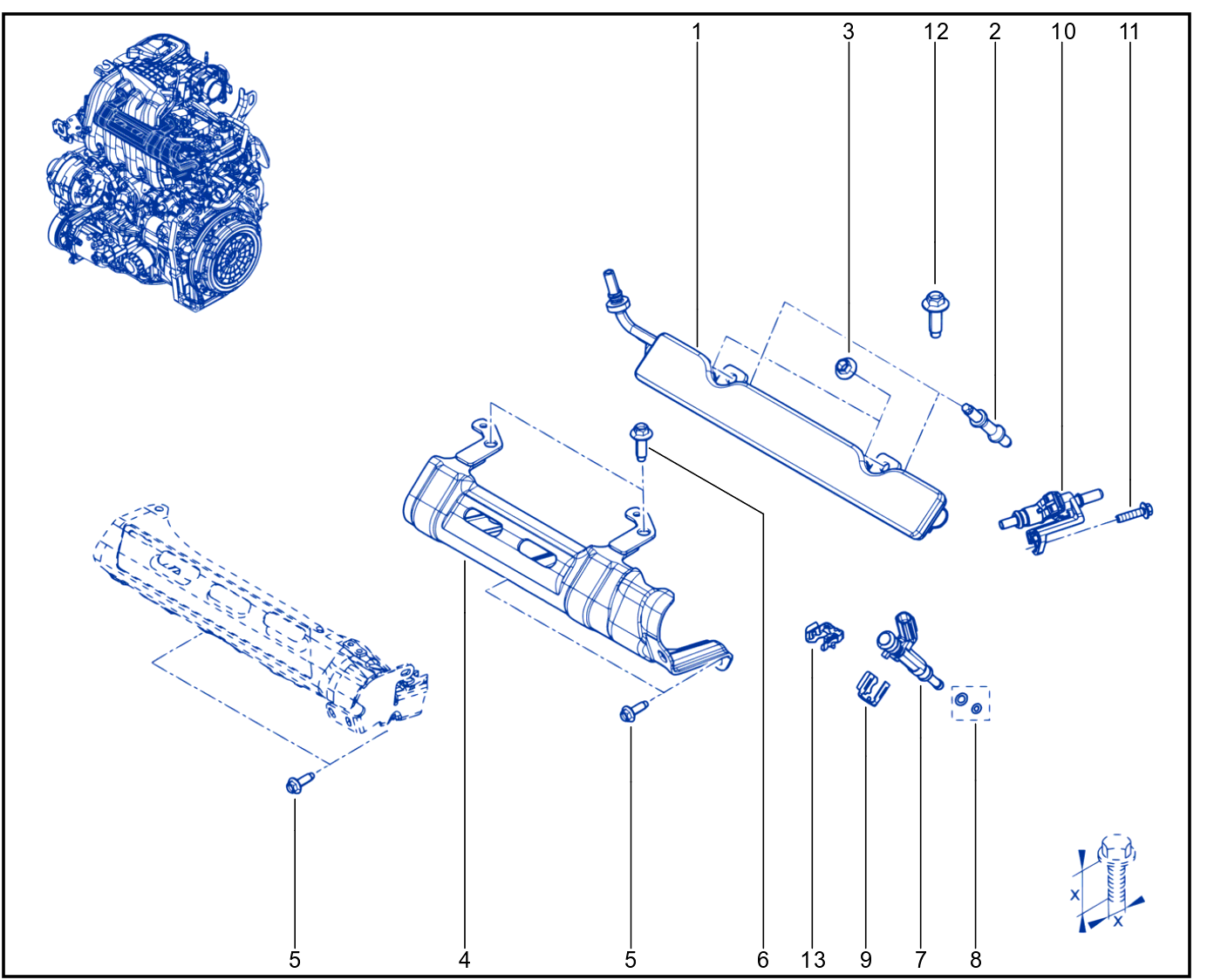

Injection - 01117683
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 01117683 | Injection - 01117683 | 2012 - 2021 |
ENGINE: H4M
MODEL: F67
TRANSMISSION: JR5
|
Parts in this diagram 34
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 7701065102 | 6 | MOUNTING SCREW | |||
| 7701065116 | 5 | SCR-TIMING COVER MTG | |||
| 7703002651 | 11 | FLGD H HEAD SCREW M6X100-25 8-8 SA2GS | |||
| 7703002792 | 5 | FLGD HEX HD SCREW M8X125-30 10-9 SA3GS | |||
| 7703002836 | 6 | FLGD HEX HD SCR M6X100-30 8-8 SA3GS | |||
| 7703033205 | 5 | FLANGED HEX NUT M6X100 8 SA1GS | |||
| 01125E6021 | 6 | BOLT-FLG HEX | |||
| 01125E8031 | 12 | BOLT-FLG HEX | |||
| 01225E8011 | 3 | NUT-HEX,FLG | |||
| 162654PM0A | 4 | PROTR-FUEL TUBE |
