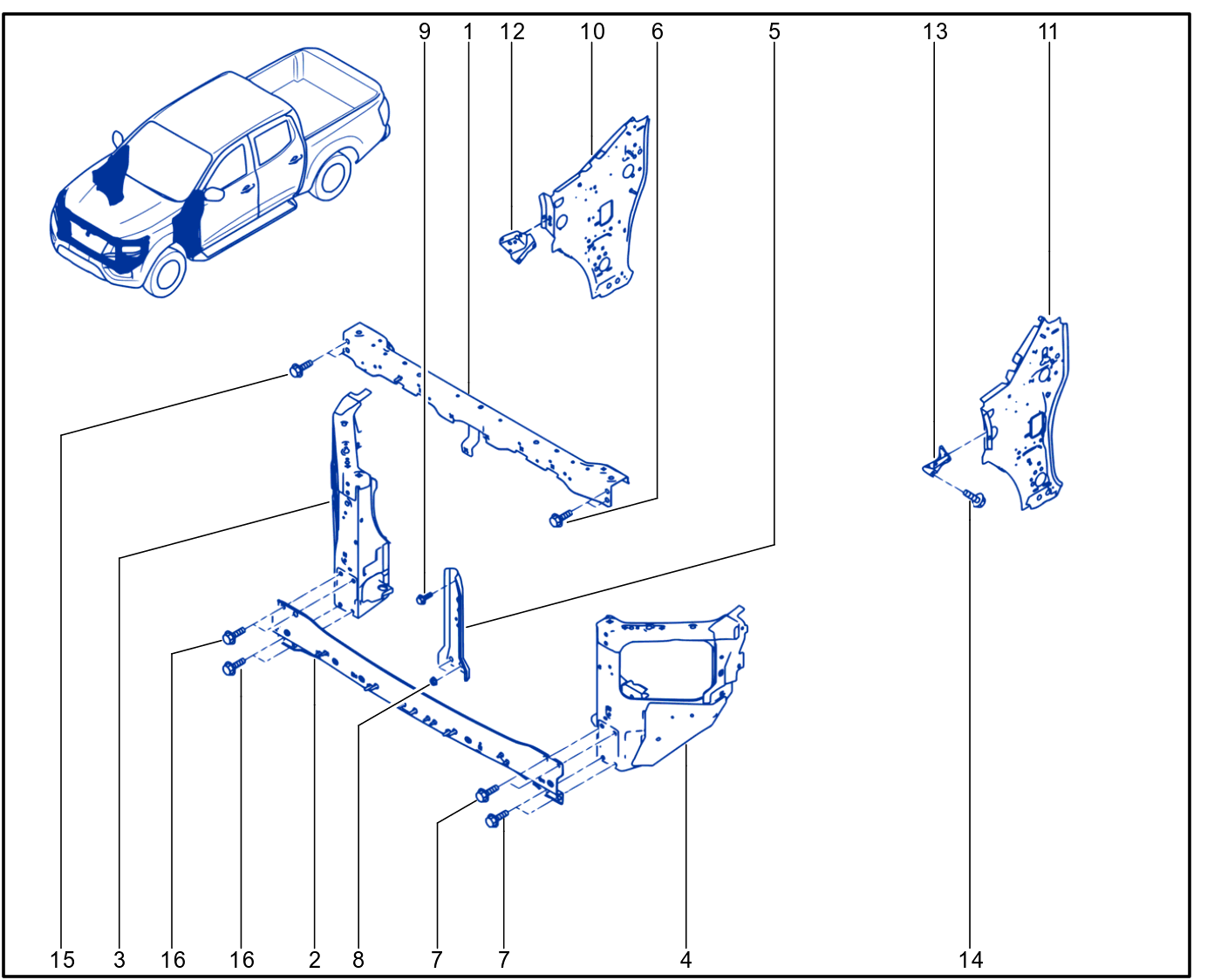

Front Panel - 01091232
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 01091232 | Front Panel - 01091232 | 2016 - 2020 |
ENGINE: M9T
MODEL: U55
TRANSMISSION: HG1
|
No illustration for this section
The full parts list is available below
Parts in this diagram 23
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 011250028U | 14 | BOLT-FLG HEX | |||
| 0112503601 | 7 | BOLT,HEX-FLG,M10,7T,8G,TORQUER | |||
| 081268202H | 6 | BOLT-HEX,PP W/CON SPW 7T M8 | |||
| 081468202G | 9 | BOLT-HEX,PP W/CON SPW 4T M8 | |||
| 089111082G | 8 | NUT-HEX,W/CON SPW M8 | |||
| 112988H304 | 16 | BOLT-FLG | |||
| 625104KH0A | 1 | SUPT ASSY-RAD CORE,UPR | |||
| 625204KE5A | 2 | SUPT ASSY-RAD CORE,MAIN | |||
| 625504KH5A | 5 | STAY ASSY-HOOD LOCK SUPT | |||
| 641904KE0B | 12 | CONN ASSY-HOODLEDGE,RH |
