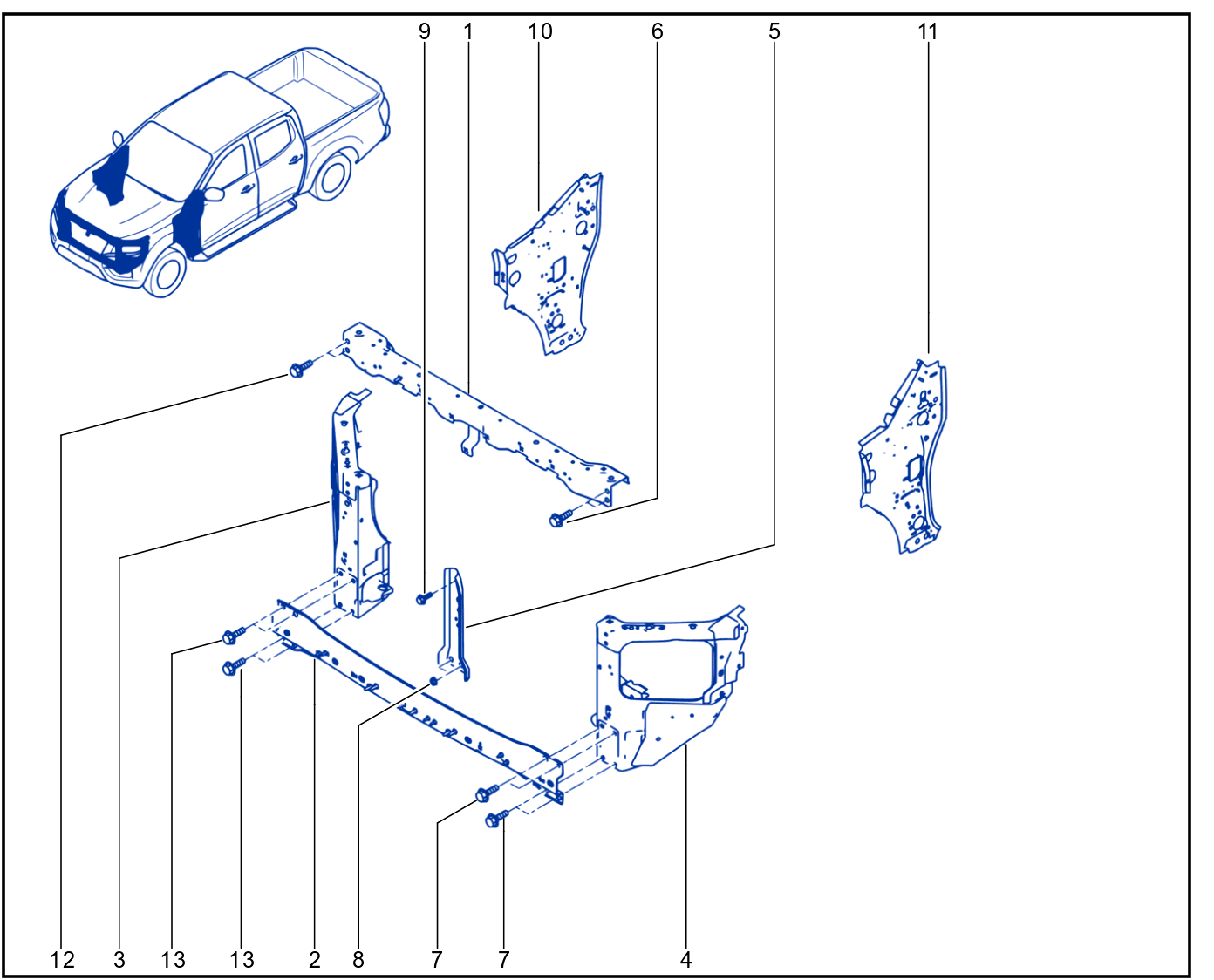

Front Panel - 01091209
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 01091209 | Front Panel - 01091209 | 2016 - 2020 |
ENGINE: M9T
MODEL: U55
TRANSMISSION: HG1
|
No illustration for this section
The full parts list is available below
Parts in this diagram 11
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081268202H | 6 | BOLT-HEX,PP W/CON SPW 7T M8 | |||
| 081468202G | 9 | BOLT-HEX,PP W/CON SPW 4T M8 | |||
| 089111082G | 8 | NUT-HEX,W/CON SPW M8 | |||
| 112988H304 | 7 | BOLT-FLG | |||
| 625105JL0A | 1 | SUPT ASSY-RAD CORE,UPR | |||
| 625505JL5A | 5 | STAY ASSY-HOOD LOCK SUPT | |||
| 676005JL0J | 10 | DASH ASSY-SIDE,RH | |||
| 676015JL0J | 11 | DASH ASSY-SIDE,LH | |||
| F25205JLEA | 2 | SUPPORT ASSY-RADIATOR CORE | |||
| F25205JLMA | 3 | SUPPORT-RADIATOR CORE SIDE,RH |
