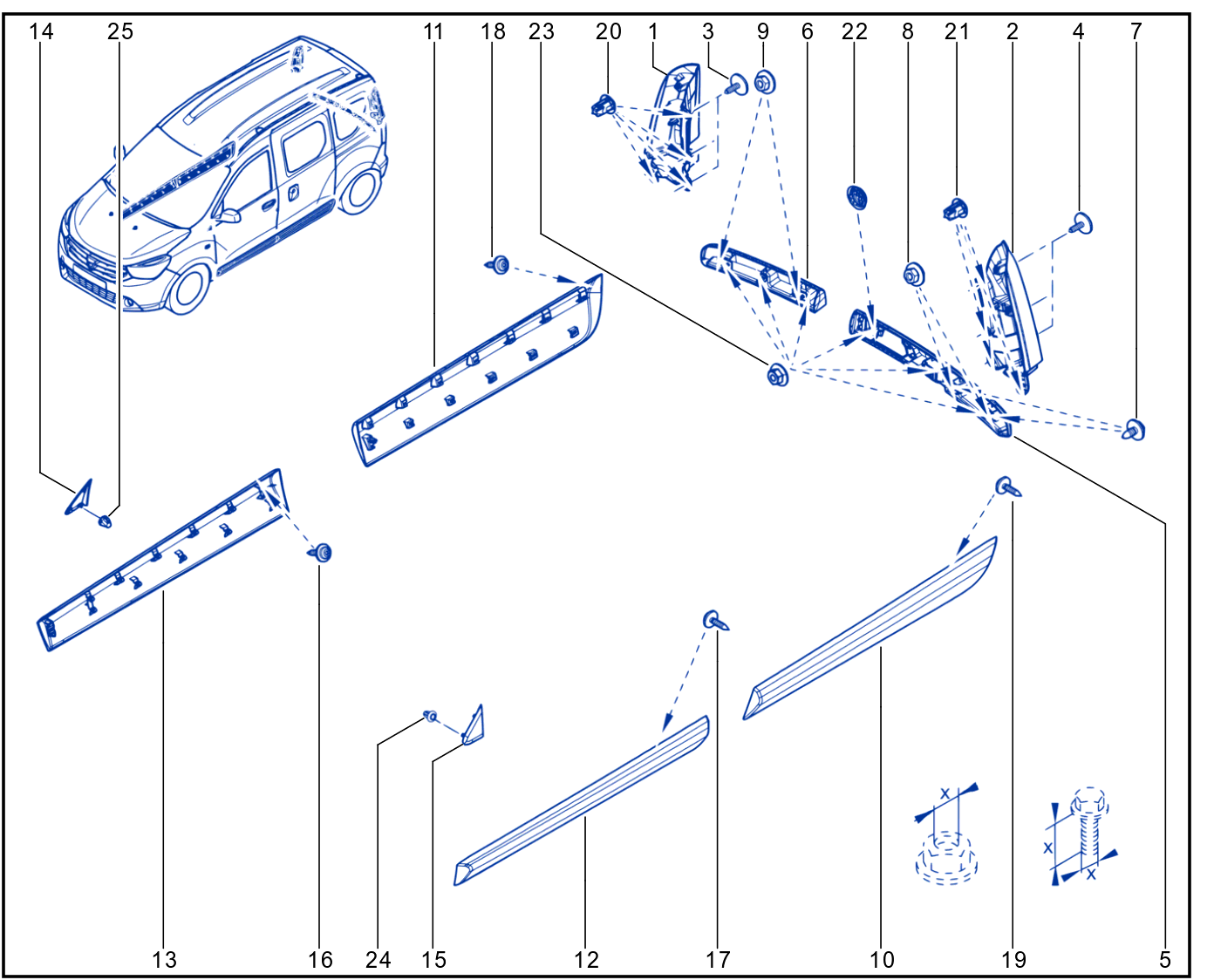

Protection Strip - Trim - 01089724
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 01089724 | Protection Strip - Trim - 01089724 | 2012 - 2021 |
ENGINE: H5F
MODEL: K67
TRANSMISSION: JR5
|
Parts in this diagram 30
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 638743083R | 14 | MLDG-FR RH FDR | |||
| 638756739R | 15 | MLDG-FR LH FDR | |||
| 7703016575 | 3 | LRG RND HD TAPPING SCR W/WAS 4,2X16 C | |||
| 7703017108 | 16 | SCREW - RAIS CHEE 4,5-13F SOFT MAT SA1ND | |||
| 7703033156 | 23 | FLANGED HEX NUT M6X100 8 SA1GS | |||
| 7703033163 | 8 | HEXAGON NUT WITH WASHER M6X100 8 SA1GD | |||
| 7703035048 | 8 | HEX NUT W/FLNG SELF-CLNG M6X100 8 SA1GS | |||
| 7703074662 | 22 | PLUG 30 MM | |||
| 7703081212 | 24 | RETAINING CLIP-EMBLEM | |||
| 7703081225 | 20 | RETENTION CLIP |
of
3
