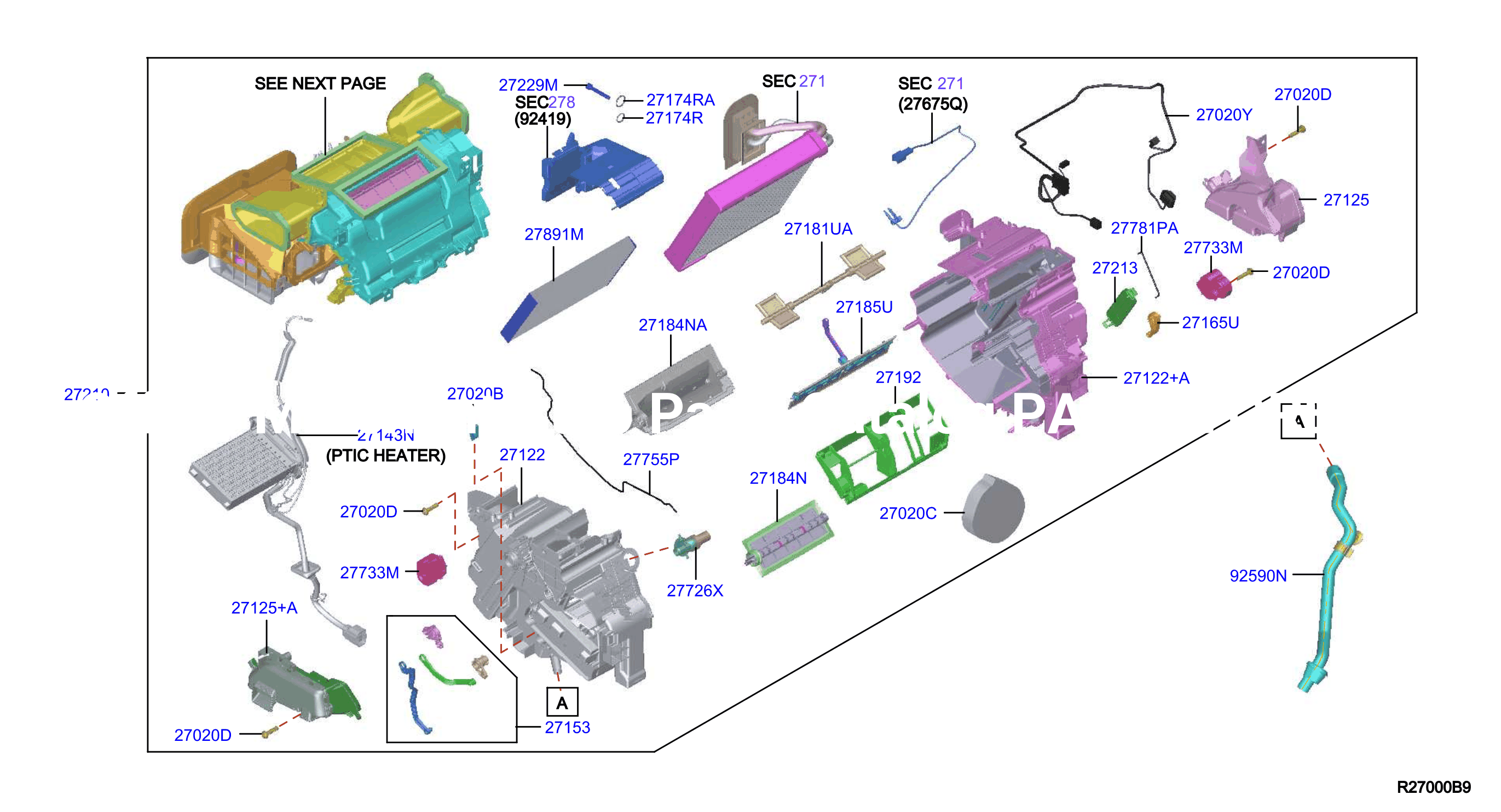

Parts in this diagram 25
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 271253NF0A | 27125 | DUCT - FOOT | |||
| 271263NF0A | 27125+A | DUCT - FOOT | |||
| 271433NF1B | 27143N | HEATER ASSY - PTC | |||
| 271533NL0A | 27153 | LINK - MIX DOOR | |||
| 271653NL0A | 27165U | LEVER - VENTILATOR | |||
| 271814DA0A | 27181UA | DOOR ASSY - VENTILATION | |||
| 271843NF0A | 27184N | DOOR ASSY - MIX | |||
| 271843NF1A | 27184NA | DOOR ASSY - MIX | |||
| 271853NF0A | 27185U | DOOR ASSY - FOOT | |||
| 271903NF0A | 27192 | AIR GUIDE - RH | |||
| 271993SG0A | 27020D | SCREW | |||
| 272063NF0A | 27020Y | HARNESS - SUB, BLOWER UNIT | |||
| 272293NL0A | 27229M | BOLT | |||
| 272883NF0A | 27755P | SEAL - FOAM | |||
| 274623SG0A | 27020B | NUT | |||
| 27726EM01A | 27726X | ASPIRATOR | |||
| 277313NK0A | 27733M | ACTUATOR ASSY - MODE | |||
| 277813SG0C | 27781PA | ROD | |||
| 278913SG0A | 27891M | AIR FILTER ASSY | |||
| 278919AE0A | 27891M | AIR FILTER ASSY | |||
| 924193SG0A | 27213 | COVER - HEATER | |||
| 92477AX000 | 27174R | SEAL - O RING | |||
| 92477AX005 | 27174RA | SEAL - O RING | |||
| 925803NF0A | 27020C | GROMMET | |||
| 925903NA0A | 92590N | HOSE - DRAIN |
