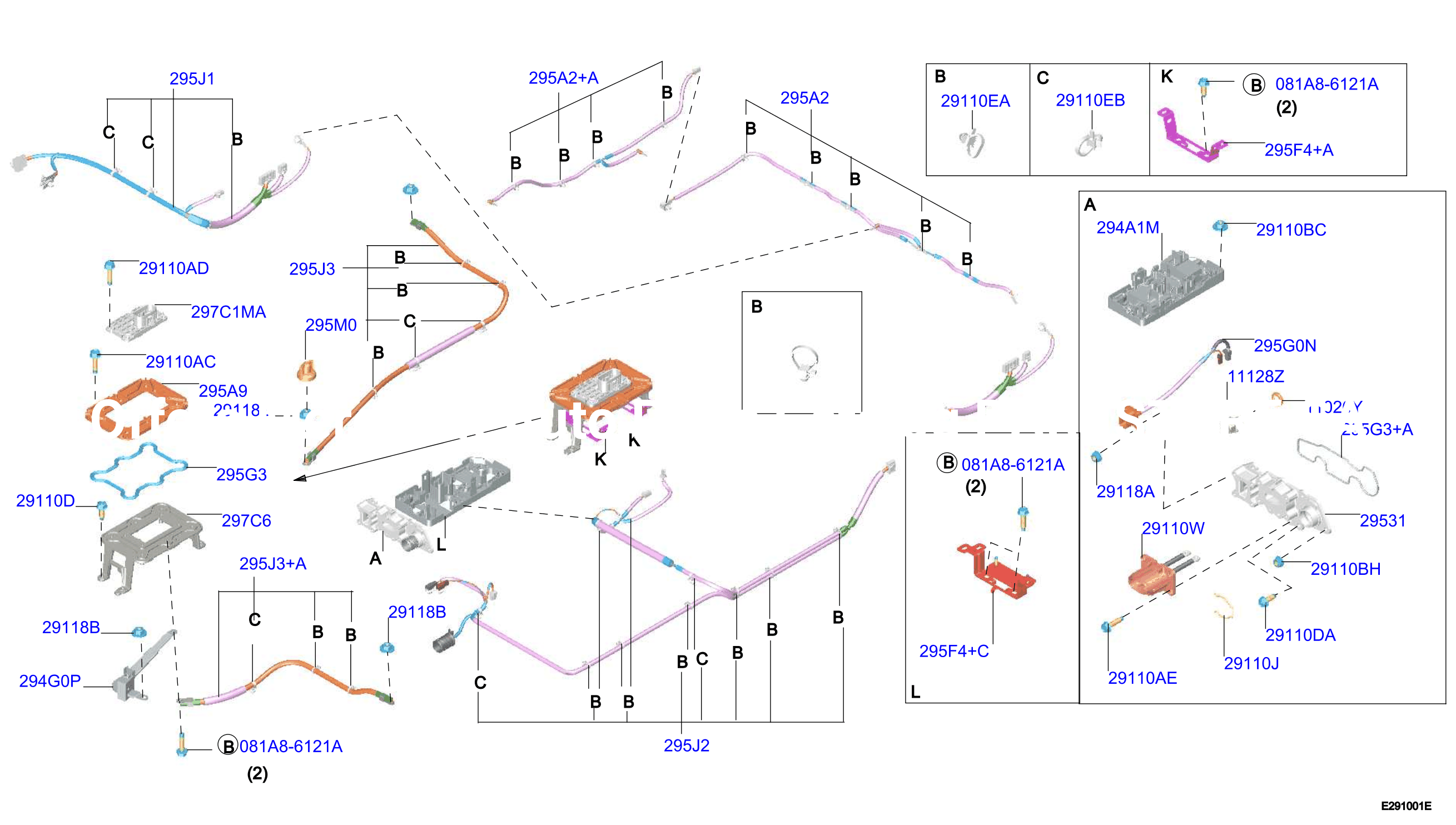

Electric Vehicle Battery 4 Battery Harness
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 291A-003-01 | Electric Vehicle Battery 4 Battery Harness | 2019 - 2020 |
BODY: 5HB
|
No illustration for this section
The full parts list is available below
Parts in this diagram 29
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6071 | 29110AC | BOLT | |||
| 0122100361 | 29110BH | NUT | |||
| 01221N6011 | 29110BC | NUT | |||
| 0145600031 | 29110D | SCREW | |||
| 081A86121A | 081A86121A | BOLT | |||
| 1102601M02 | 11026Y | WASHER - DRAIN PLUG | |||
| 1112801M0B | 11128Z | PLUG - DRAIN | |||
| 242257991A | 29110EA | CLIP | |||
| 24225C991A | 29110EB | CLIP | |||
| 243473NF1A | 29110W | HOUSING ASSY - CONNECTOR |
of
3
