| Code | Name | Period | Specifications |
|---|---|---|---|

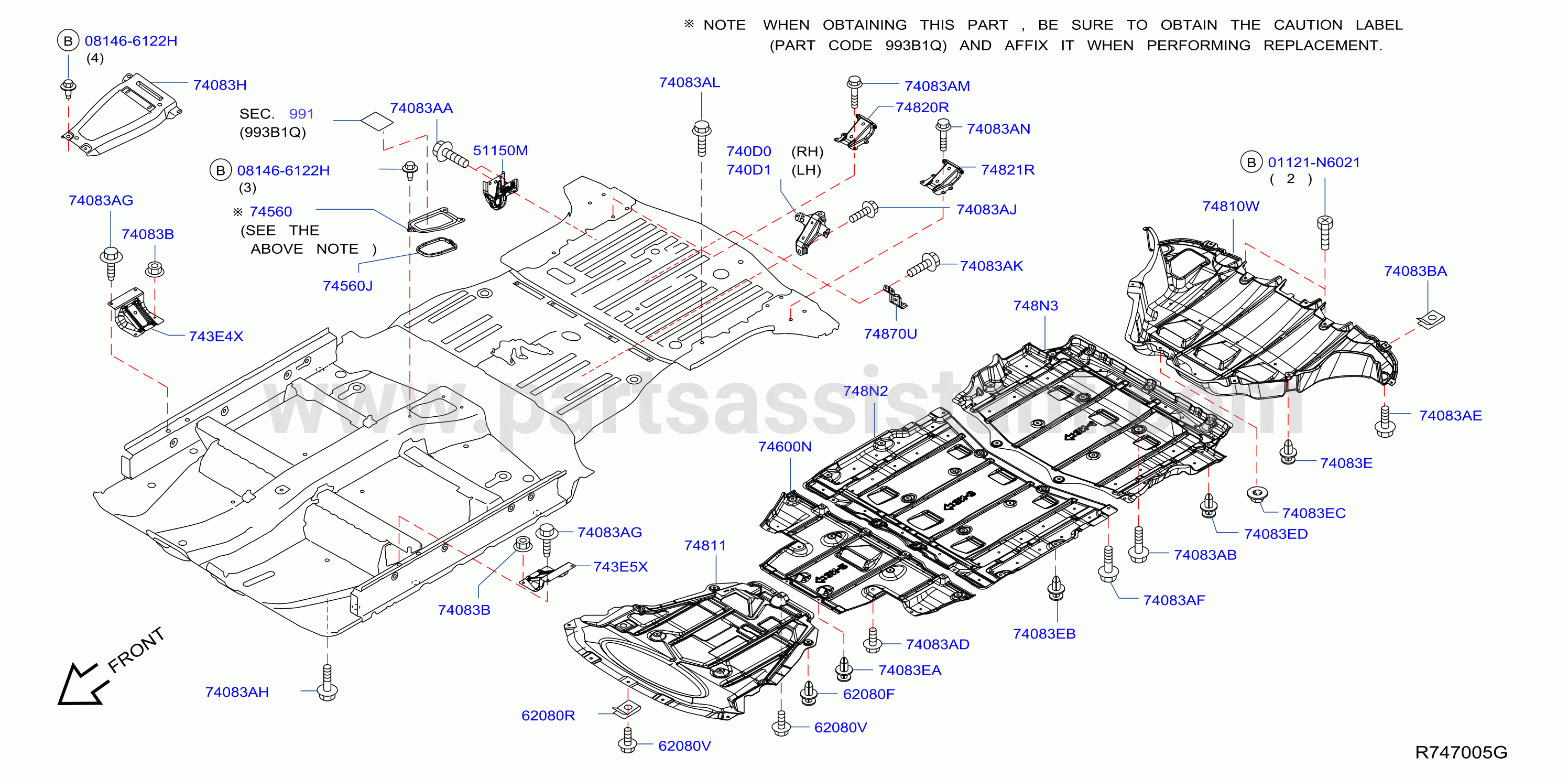

| 747A-001-02 | Floor Fitting | 2014 - 2015 |
BODY: HB
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01121N6021 | 74083AB | BOLT | ||
| 01121N6041 | 74083AE | BOLT | ||
| 01121N8041 | 74083AG | BOLT | ||
| 01121N8201 | 74083AG | BOLT | ||
| 01125N0111 | 74083AJ | BOLT | ||
| 01125N2021 | 74083AA | BOLT | ||
| 01125N2101 | 74083AD | BOLT | ||
| 01125N8031 | 74083AK | BOLT | ||
| 01225N8011 | 74083B | NUT | ||
| 012410009U | 62080R | NUT - SPRING | ||
| 0145600691 | 62080V | SCREW | ||
| 0155305323 | 74083E | CLIP | ||
| 0155305933 | 62080F | CLIP | ||
| 015532DR9A | 62080F | CLIP | ||
| 081466122H | 081466122H | BOLT - HEX | ||
| 511503NF0A | 51150M | TOWING HOOK - REAR | ||
| 63848G5100 | 74083EC | CLIP | ||
| 740D03NF0A | 740D0 | BRACKET ASSY - BATTERY MOUNTING, REAR RH | ||
| 740D13NF0A | 740D1 | BRACKET ASSY - BATTRY MOUNTING, REAR LH | ||
| 743E43NF0A | 743E4X | GUSSET - FRONT FLOOR REAR, RH | ||
| 743E53NF0A | 743E5X | GUSSET - FRONT FLOOR REAR, LH | ||
| 748113NF0A | 74600N | COVER - ENGINE | ||
| 748473NF0A | 74560J | SEAL - INSPECTION HOLE COVER | ||
| 748483NF0A | 74560 | COVER - INSPECTION HOLE | ||
| 748A23NF0A | 74810W | DIFFUSER ASSY - REAR | ||
| 748B03NF0A | 74820R | GUSSET - FLOOR REAR, RH | ||
| 748B13NF0A | 74821R | GUSSET - FLOOR REAR, LH | ||
| 748G03NF0A | 74870U | BRACKET - REAR DIFFUSER, REAR | ||
| 748J23NF0A | 74083H | COVER - HOLE | ||
| 748N23NF0A | 748N2 | COVER - BATTERY | ||
| 748N33NF0A | 748N3 | COVER - BATTERY | ||
| 758923NF0A | 74811 | COVER - UNDER, ENGINE |
