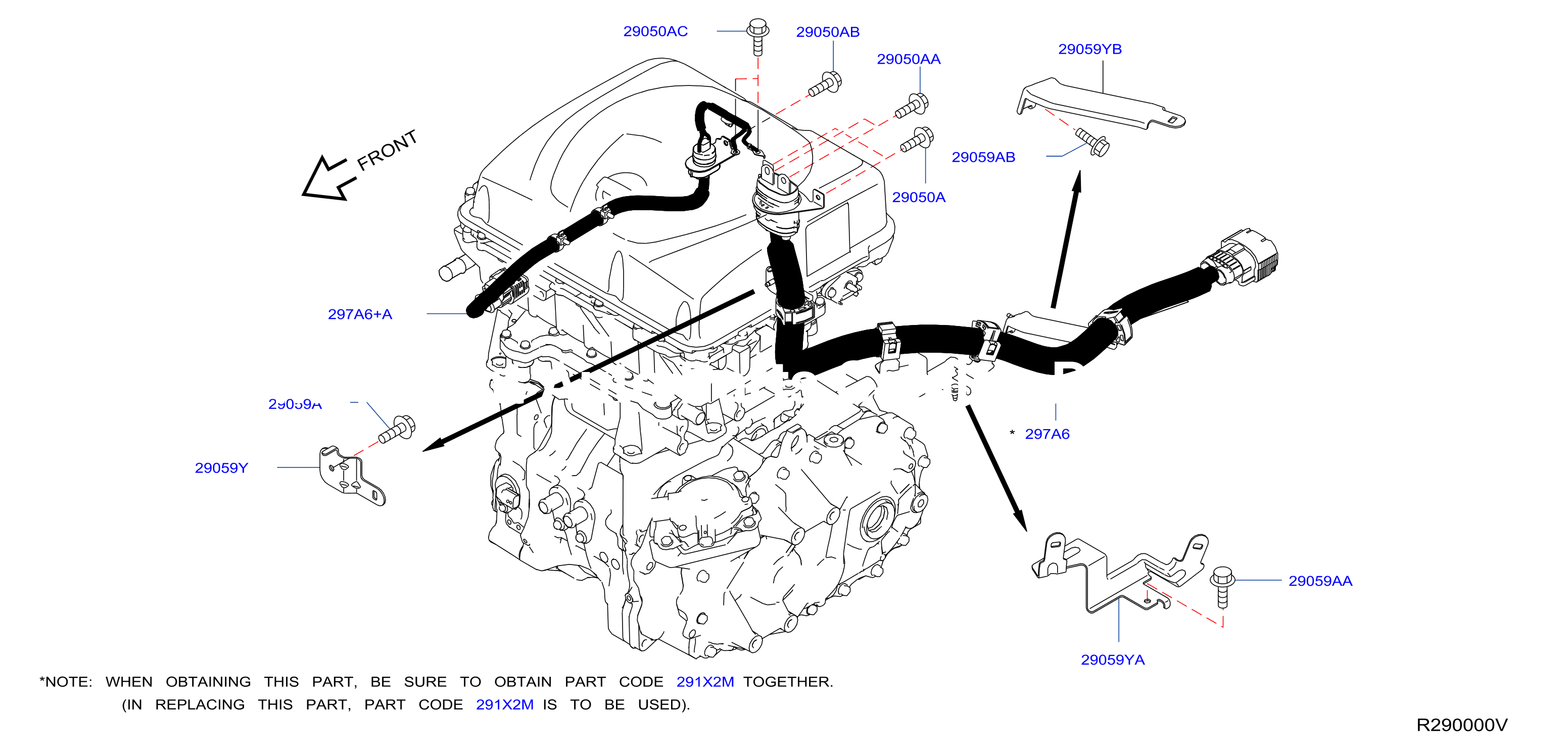

Electric Vehicle Drive System Cable Assy
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 290A-004-01 | Electric Vehicle Drive System Cable Assy | 2013 - 2014 |
BODY: HB
|
No illustration for this section
The full parts list is available below
Parts in this diagram 8
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6011 | 29050A | BOLT | |||
| 242393NF5A | 29059Y | BRACKET - HARNESS | |||
| 242393NF5B | 29059YA | BRACKET - HARNESS | |||
| 242393NF5C | 29059YB | BRACKET - HARNESS | |||
| 291X23NF0A | 291X2M | COVER - POWER DELIVERYMODULE | |||
| 291X24NR0A | 291X2M | COVER - POWER DELIVERYMODULE | |||
| 297A63NF0B | 297A6 | CABLE ASSY - INVERTER TO COMPRESSOR | |||
| 297A63NF1A | 297A6+A | CABLE ASSY - INVERTER TO COMPRESSOR |
