| Code | Name | Period | Specifications |
|---|---|---|---|

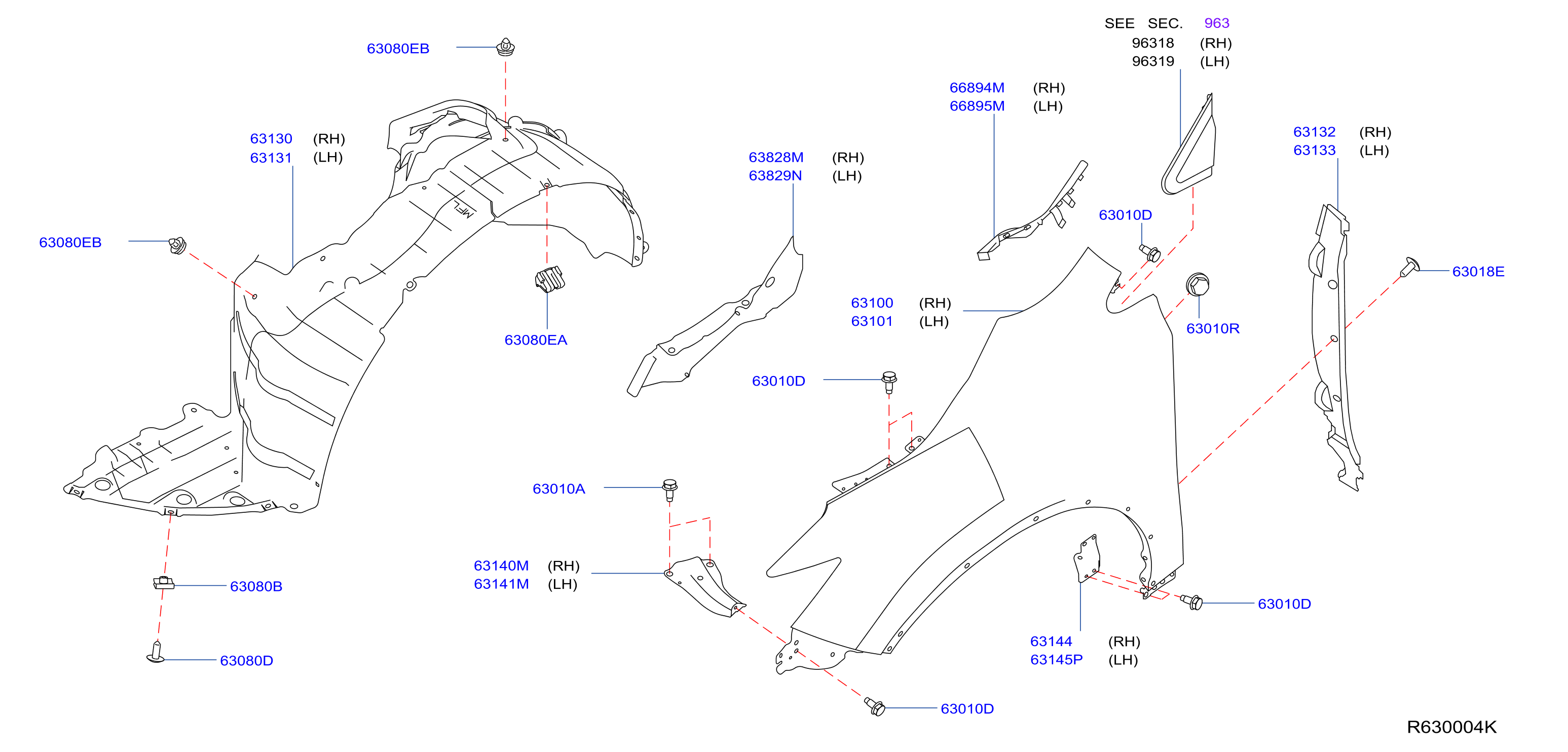

| 630A-001-04 | Front Fender Fitting | 2020 - ... |
BODY: W
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01121N6141 | 63010A | BOLT | ||
| 01125N6061 | 63010D | SCREW | ||
| 012410030U | 63080B | NUT | ||
| 0145100841 | 63080D | SCREW | ||
| 01454N5061 | 63080D | SCREW | ||
| 014660002U | 63010D | SCREW | ||
| 0146600051 | 63010D | SCREW | ||
| 0155305233 | 63080EA | CLIP | ||
| 0155305933 | 63080EB | CLIP | ||
| 0155306451 | 63018E | CLIP | ||
| 015532DR9A | 63080EB | CLIP | ||
| 631005AA0A | 63100 | FENDER - FRONT, RH | ||
| 631015AA0A | 63101 | FENDER - FRONT, LH | ||
| 631325AA0A | 63132 | BAFFLE PLATE - FRONT FENDER, RH | ||
| 631335AA0A | 63133 | BAFFLE PLATE - FRONT FENDER, LH | ||
| 631605AA0A | 63144 | BRACKET - FRONT FENDER LOWER, RH | ||
| 631615AA0A | 63145P | BRACKET - FRONT FENDER LOWER, LH | ||
| 631805AA0A | 63140M | STAY - FRONT FENDER, RH | ||
| 631815AA0A | 63141M | STAY - FRONT FENDER, LH | ||
| 638405AA0A | 63130 | PROTECTOR - FRONT FENDER, RH | ||
| 638409UF0A | 63130 | PROTECTOR - FRONT FENDER, RH | ||
| 638435AA0A | 63131 | PROTECTOR - FRONT FENDER, LH | ||
| 638E85AA0A | 63828M | COVER - FRONT FENDER DRIP, RH | ||
| 638E95AA0A | 63829N | COVER - FRONT FENDER DRIP, LH | ||
| 668945BC0A | 66894M | COVER - FRONT FENDER, RH | ||
| 668949UA0A | 66894M | COVER - FRONT FENDER, RH | ||
| 668955BC0A | 66895M | COVER - FRONT FENDER, LH | ||
| 668959UA0A | 66895M | COVER - FRONT FENDER, LH | ||
| 768D91JA0A | 63010R | RIVET |
