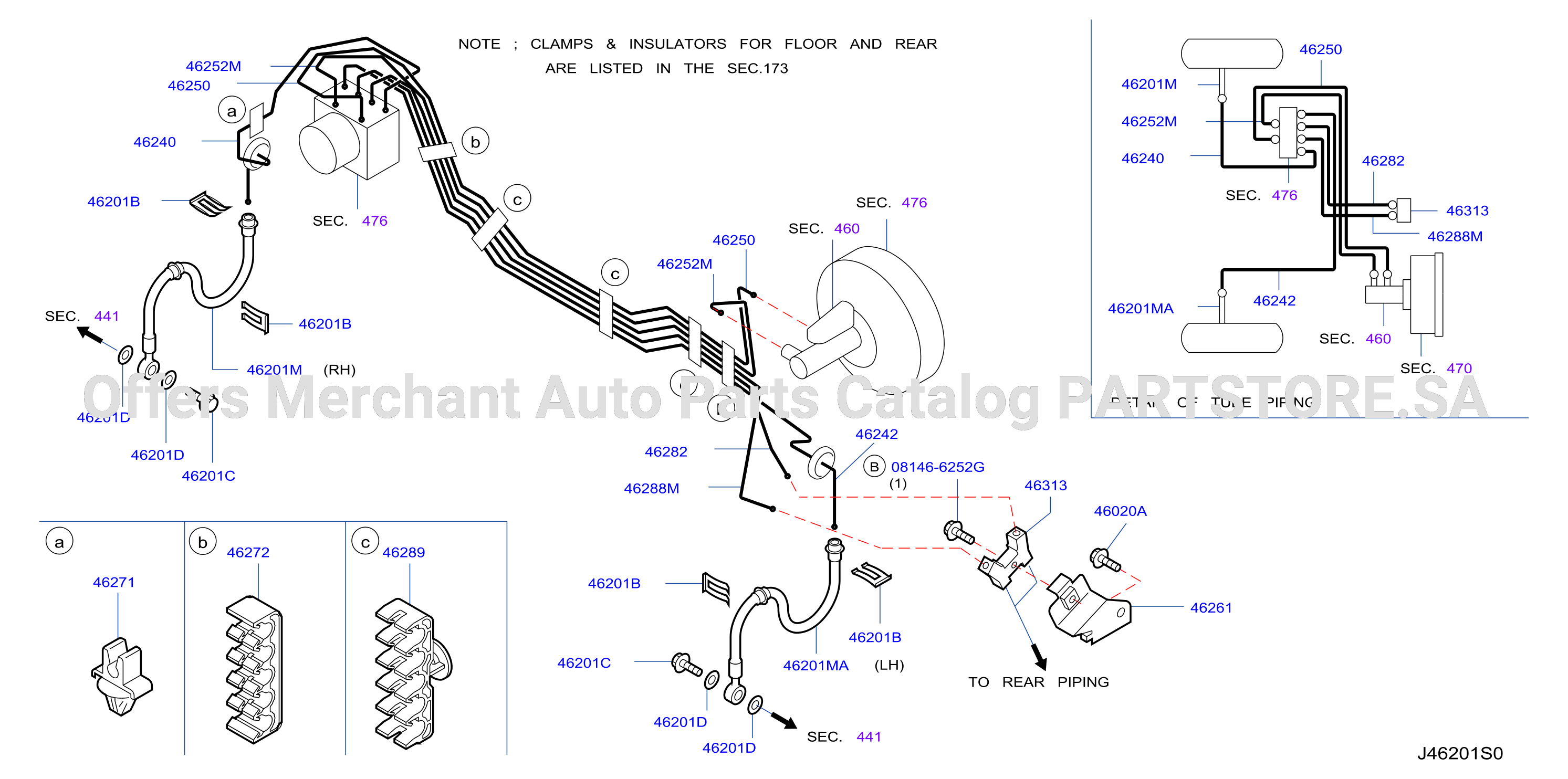

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462B-003-01 | Brake Piping Control Front Piping | 2007 - ... |
AREA: TAIWAN
BODY: W
|
Parts in this diagram 27
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N8021 | 46020A | BOLT | |||
| 081466252G | 081466252G | BOLT - HEX | |||
| 462062J000 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 46210CA000 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210CA005 | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 46240CA000 | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 46240CA00B | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 46242CA000 | 46242 | TUBE ASSY - BRAKE, FRONT LH |
of
3
