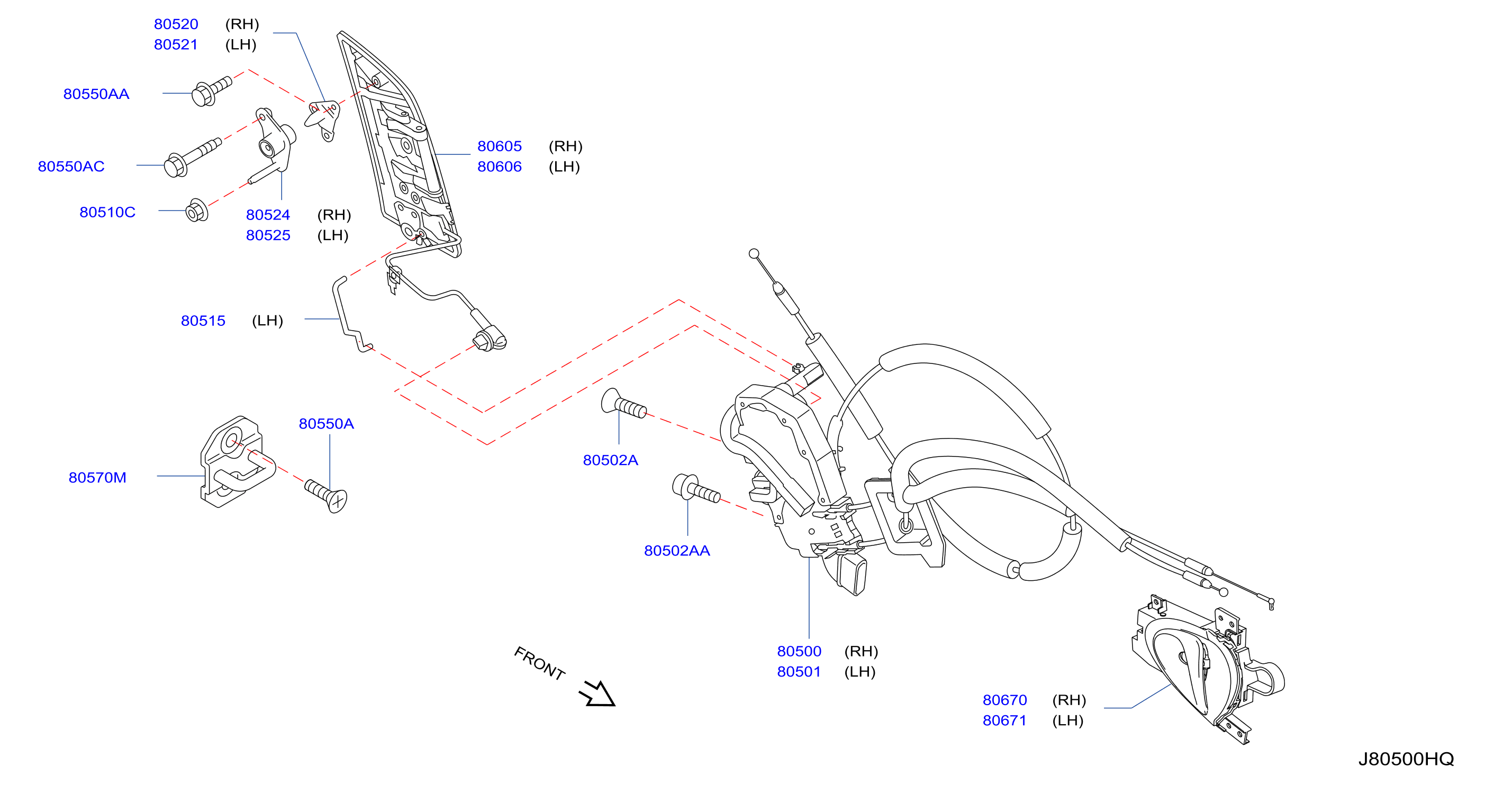

Front Door Lock Handle — NISSAN Z

Part name must be at least 2 characters.

Code	Name	Period	Specifications
805B-002-01	Front Door Lock Handle	2012 - 2012	BODY: R/S

No illustration for this section

The full parts list is available below

Part Number	Part Code	Name
01121N8111	80550AC	BOLT
01221N8011	80510C	NUT
48703CD70A	80502AA	SCREW
80498JK10A	80550A	BOLT
805001EA0A	80500	LOCK & REMOTE CONTROL ASSY - FRONT DOOR, RH
805001ER0A	80500	LOCK & REMOTE CONTROL ASSY - FRONT DOOR, RH
805011ER0A	80501	LOCK & REMOTE CONTROL ASSY - FRONT DOOR, LH
805151EA0A	80515	ROD - KEY LOCK, LH
805201ET0A	80520	MALE - DOVETAIL, RH
805211ET0A	80521	MALE - DOVETAIL, LH
805241ET0A	80524	FEMALE - DOVETAIL, RH
805251ET0A	80525	FEMALE - DOVETAIL, LH
80570AH300	80570M	STRIKER ASSY - FRONT DOOR LOCK
80599AX00E	80502A	SCREW
806061EA0A	80605	HANDLE ASSY - FRONT DOOR OUTSIDE, RH
806061EA0B	80605	HANDLE ASSY - FRONT DOOR OUTSIDE, RH
806061EA0C	80605	HANDLE ASSY - FRONT DOOR OUTSIDE, RH
806066GG0A	80605	HANDLE ASSY - FRONT DOOR OUTSIDE, RH
806071EA0A	80606	HANDLE ASSY - FRONT DOOR OUTSIDE, LH
806071EA0B	80606	HANDLE ASSY - FRONT DOOR OUTSIDE, LH
806071EA0C	80606	HANDLE ASSY - FRONT DOOR OUTSIDE, LH
806076GG0A	80606	HANDLE ASSY - FRONT DOOR OUTSIDE, LH
806701EA0A	80670	HANDLE ASSY - DOOR INSIDE, RH
806711EA0A	80671	HANDLE ASSY - DOOR INSIDE, LH
825861EA0A	80550AA	BOLT
