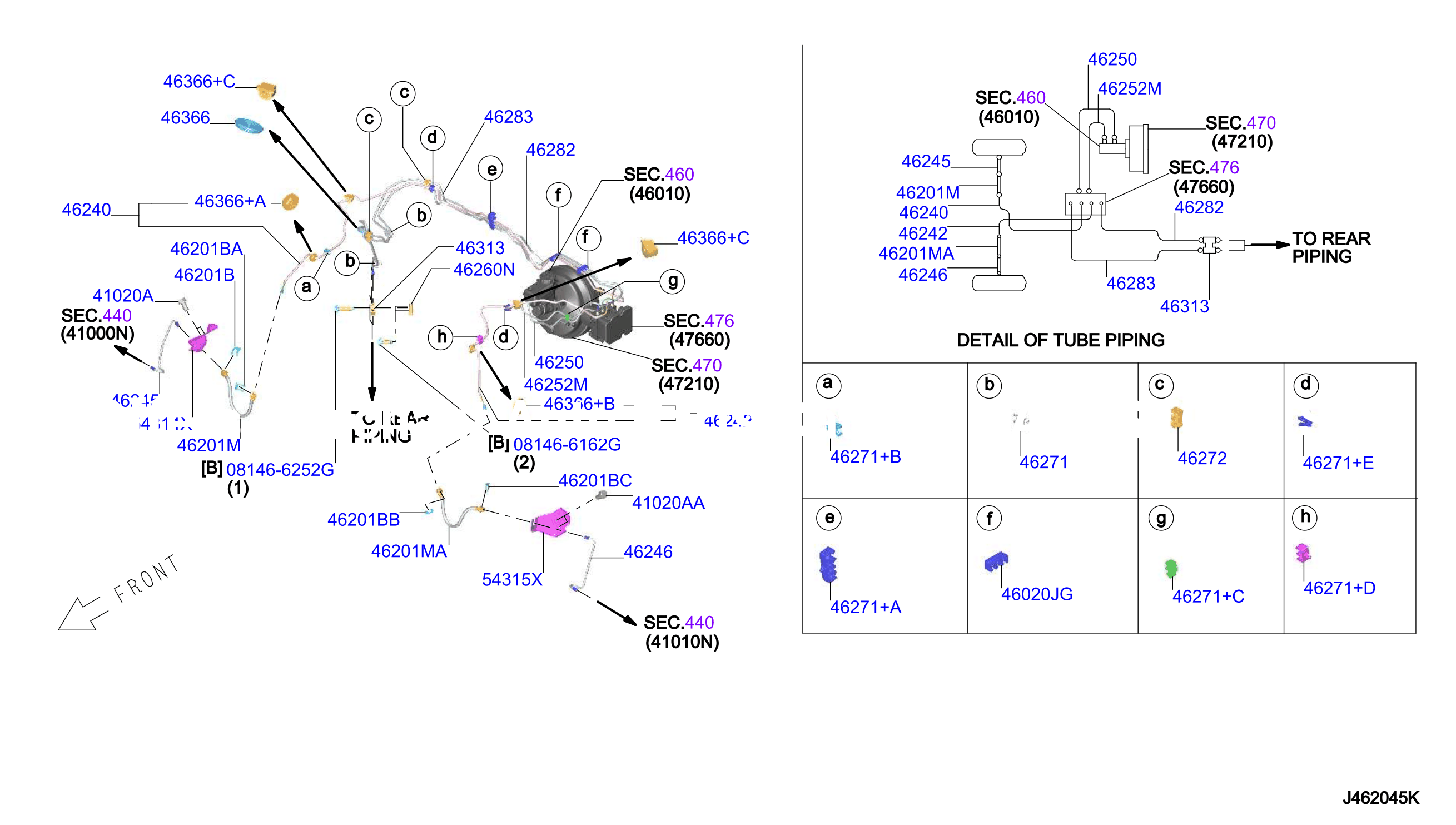

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462F-003-01 | Brake Piping Control Front Piping | 2022 - 2023 |
BODY: C
|
Parts in this diagram 45
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112104761 | 41020A | BOLT | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 081466252G | 081466252G | BOLT - HEX | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462104GG0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210EG00A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462114GG0A | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46211EG00A | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 462406GP0B | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 46240JK71B | 46240 | TUBE ASSY - BRAKE, FRONT RH |
of
5
