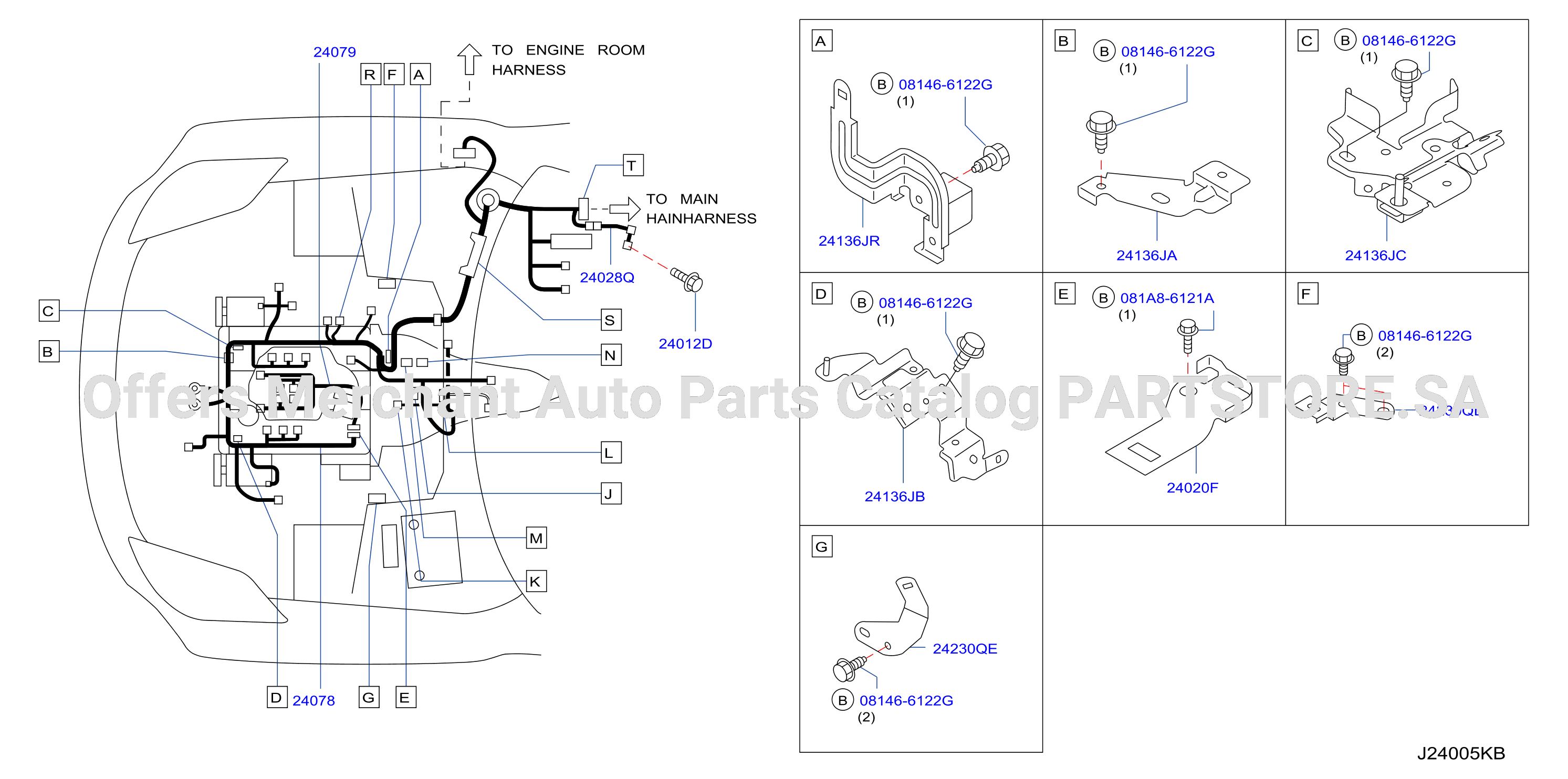

Wiring Egi Harn
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 240A-021-01 | Wiring Egi Harn | 2007 - ... |
BODY: C
|
No illustration for this section
The full parts list is available below
Parts in this diagram 18
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0145600411 | 24012D | SCREW | |||
| 081466122G | 081466122G | BOLT - HEX | |||
| 081A86121A | 081A86121A | BOLT | |||
| 22650JK03A | 24020F | CLIP | |||
| 24079CD000 | 24079 | HARNESS ASSY - EGI SUB | |||
| 24079JL00A | 24079 | HARNESS ASSY - EGI SUB | |||
| 24136AL503 | 24136JB | BRACKET - EGI HARNESS | |||
| 24136AL506 | 24136JC | BRACKET - EGI HARNESS | |||
| 24136AL54B | 24136JC | BRACKET - EGI HARNESS | |||
| 24136AM600 | 24136JR | BRACKET - EGI HARNESS |
