| Code | Name | Period | Specifications |
|---|---|---|---|

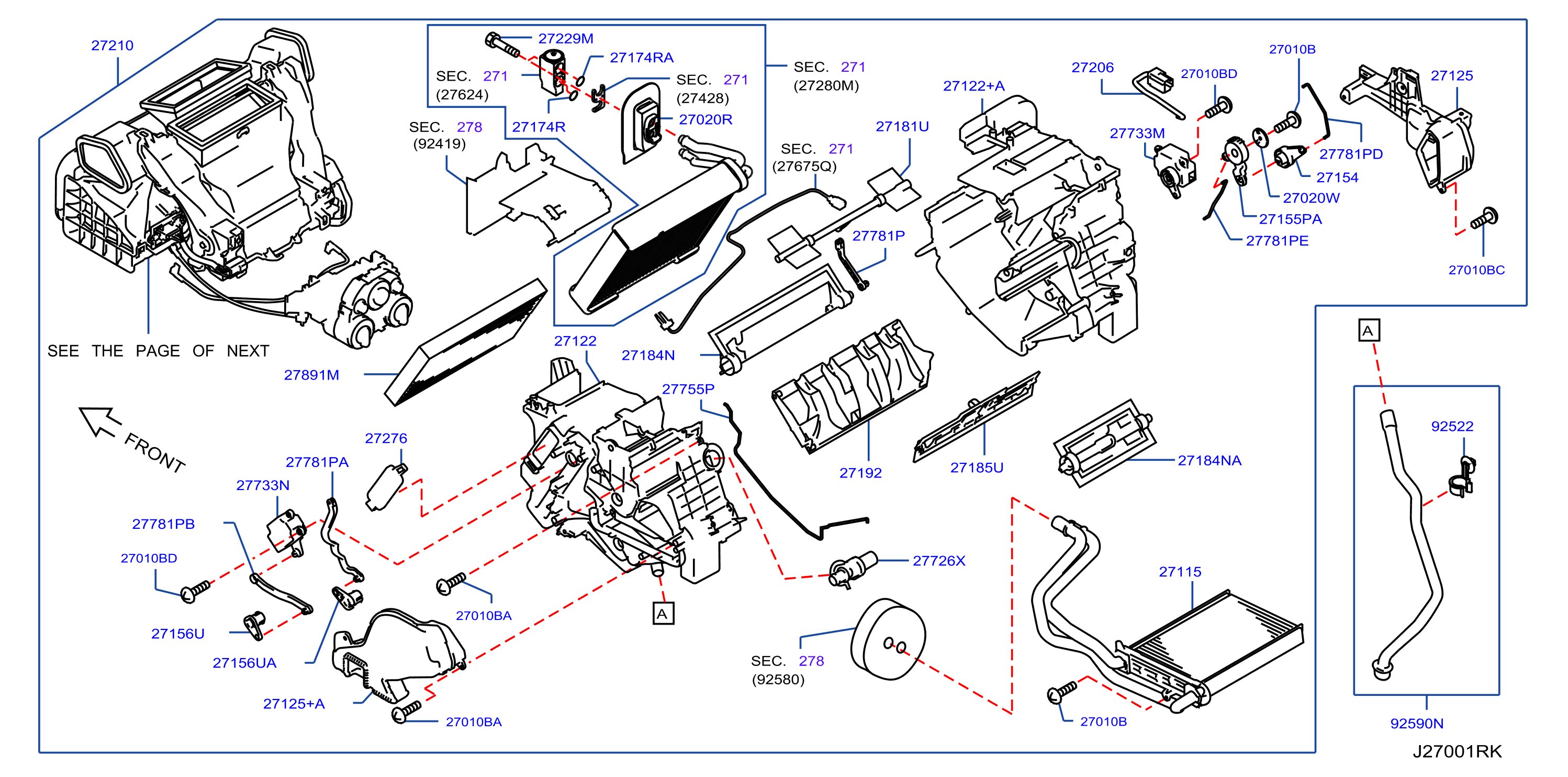

| 270A-001-01 | Heater Blower Unit Heater Fr | 2011 - ... |
BODY: W
|
Parts in this diagram 27
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 271251FC0A | 27125 | DUCT - FOOT | |||
| 271261FC0A | 27125+A | DUCT - FOOT | |||
| 271401FC0A | 27115 | CORE ASSY - FRONT HEATER | |||
| 271541FC0A | 27154 | LINK | |||
| 271551FC0B | 27155PA | LINK - MAIN | |||
| 271561FC0A | 27156U | LEVER - AIR MIX DOOR | |||
| 271731FA0A | 27020W | WASHER | |||
| 271811FC0A | 27181U | DOOR ASSY - VENTILATION | |||
| 271841FC0A | 27184N | DOOR ASSY - MIX | |||
| 271841FC0B | 27184NA | DOOR ASSY - MIX | |||
| 271851FC0A | 27185U | DOOR ASSY - FOOT | |||
| 271901FC0A | 27192 | AIR GUIDE - RH | |||
| 271998M601 | 27010B | SCREW | |||
| 272291U62A | 27229M | BOLT | |||
| 272761FC0A | 27276 | COVER - FILTER | |||
| 272881FC0A | 27755P | SEAL - FOAM | |||
| 277811FC0A | 27781P | ROD | |||
| 277811FC0B | 27781PA | ROD | |||
| 277811FC0C | 27781PB | ROD | |||
| 277811FC0E | 27781PD | ROD | |||
| 92477AX000 | 27174R | SEAL - O RING | |||
| 92477AX005 | 27174RA | SEAL - O RING | |||
| 925221FC0A | 92522 | BRACKET - HOSE CLIP | |||
| 925651FC1A | 27020R | COVER - HOLE | |||
| 925901FC0A | 92590N | HOSE - DRAIN | |||
| B78911FC0A | 27891M | AIR FILTER ASSY | |||
| B78911FCXA | 27891M | KEY VALUE AIR FILTER ASSY |
