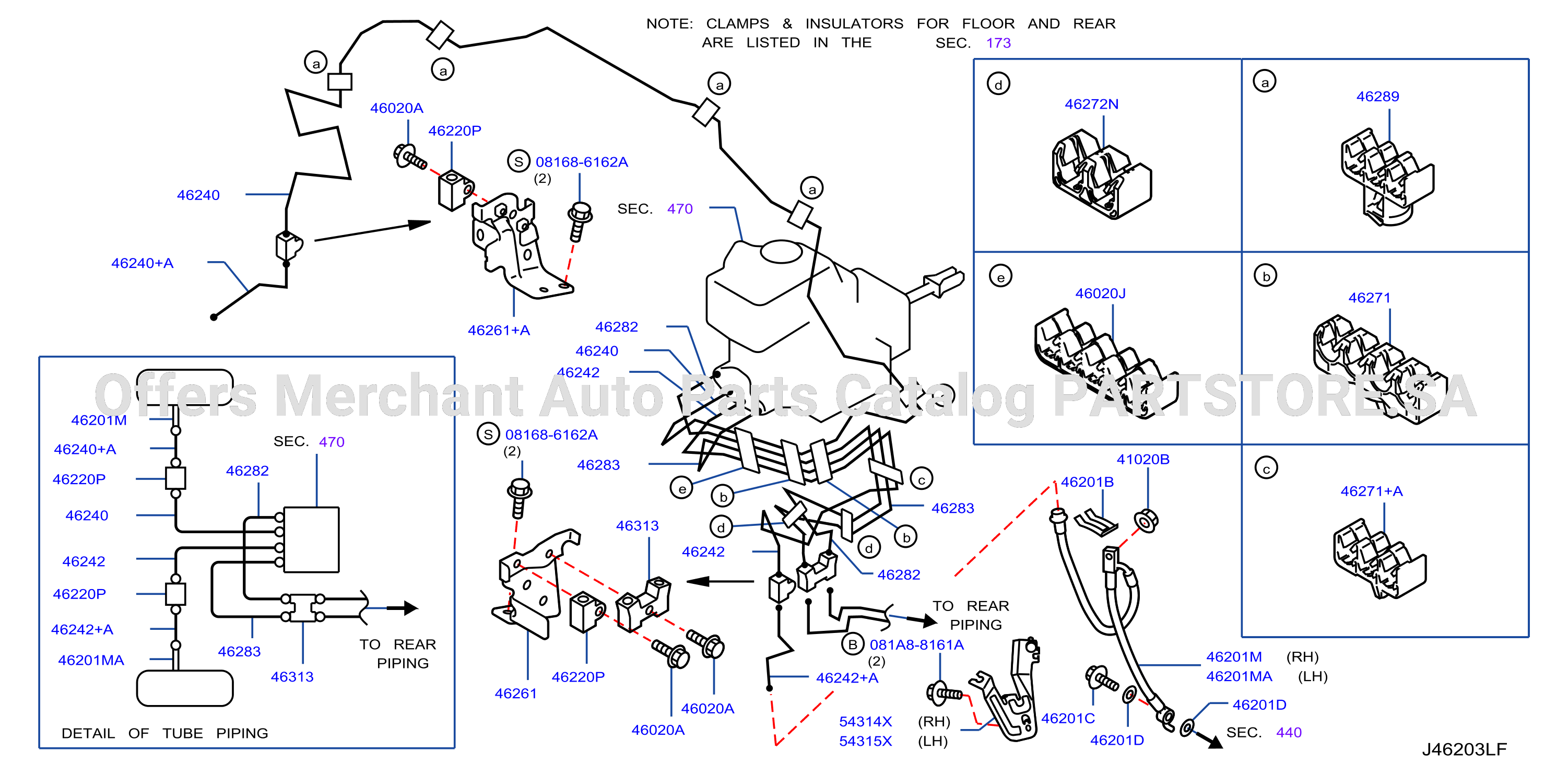

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462B-001-01 | Brake Piping Control Front Piping | 2016 - 2021 |
BODY: 3ROW
DESTINATION: MEX
DRIVE: AWD
|
No illustration for this section
The full parts list is available below
Parts in this diagram 45
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6041 | 46020A | BOLT | |||
| 01223N8011 | 41020B | NUT | |||
| 0246364000 | 46220P | CONNECTOR - BRAKE TUBE | |||
| 081686162A | 081686162A | SCREW | |||
| 081A88161A | 081A88161A | BOLT | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462101LA0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462101LA0B | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462101LB0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462101LB0B | 46201M | HOSE ASSY - BRAKE, FRONT |
of
5
