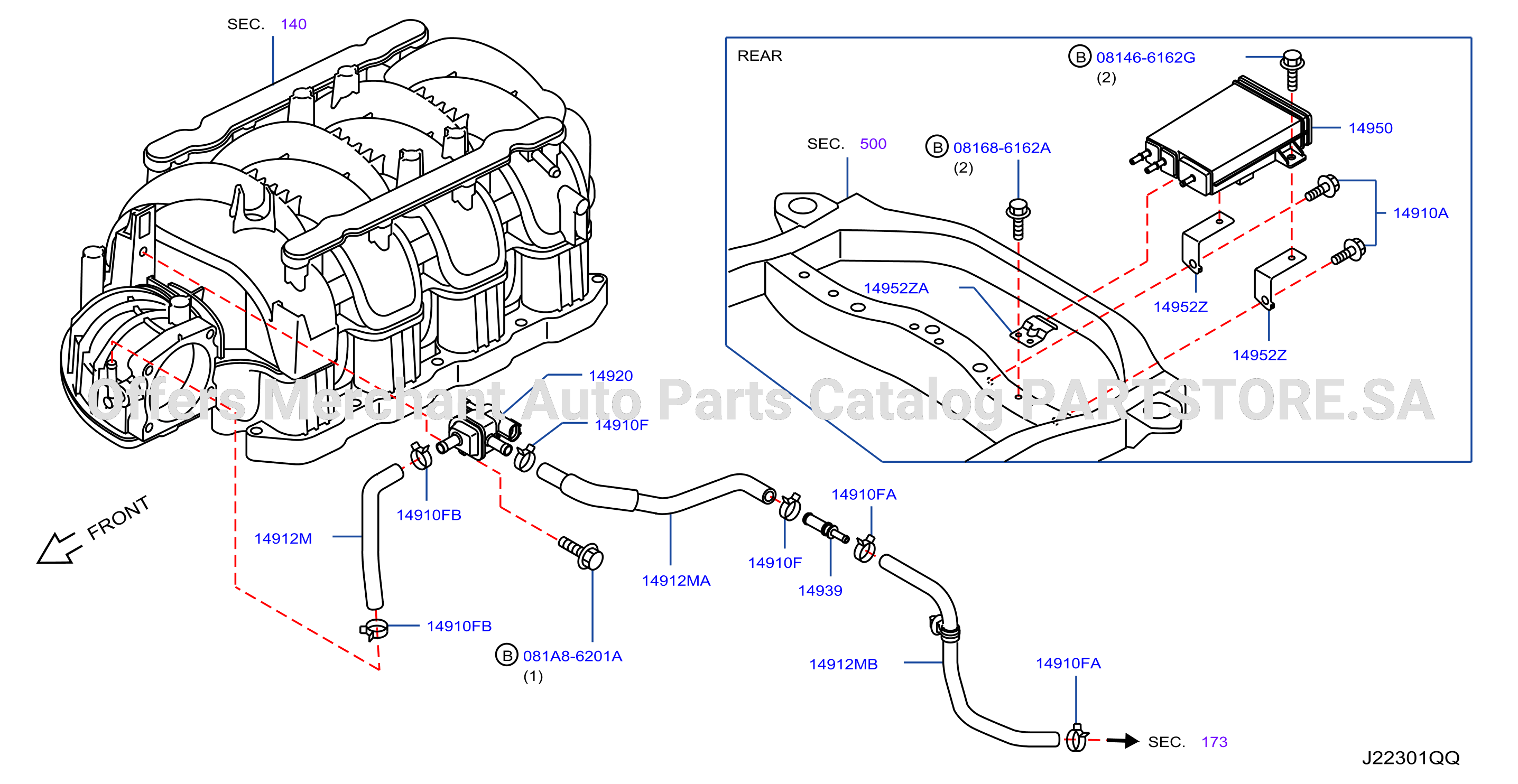

Engine Control Vacuum Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 223A-002-02 | Engine Control Vacuum Piping | 2016 - 2016 |
DESTINATION: GCC
ENGINE: VK56VD
|
No illustration for this section
The full parts list is available below
Parts in this diagram 17
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N8021 | 14910A | BOLT | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 081686162A | 081686162A | SCREW | |||
| 081A86201A | 081A86201A | BOLT | |||
| 149121LA3A | 14912M | HOSE - FUEL EVAPORATION CONTROL | |||
| 149121LA3B | 14912MA | HOSE - FUEL EVAPORATION CONTROL | |||
| 149121LA6A | 14912M | HOSE - FUEL EVAPORATION CONTROL | |||
| 149121LK2A | 14912MA | HOSE - FUEL EVAPORATION CONTROL | |||
| 149301LA0A | 14920 | VALVE ASSY - CONTROL | |||
| 149301LA0B | 14920 | VALVE ASSY - CONTROL |
of
2
