| Code | Name | Period | Specifications |
|---|---|---|---|

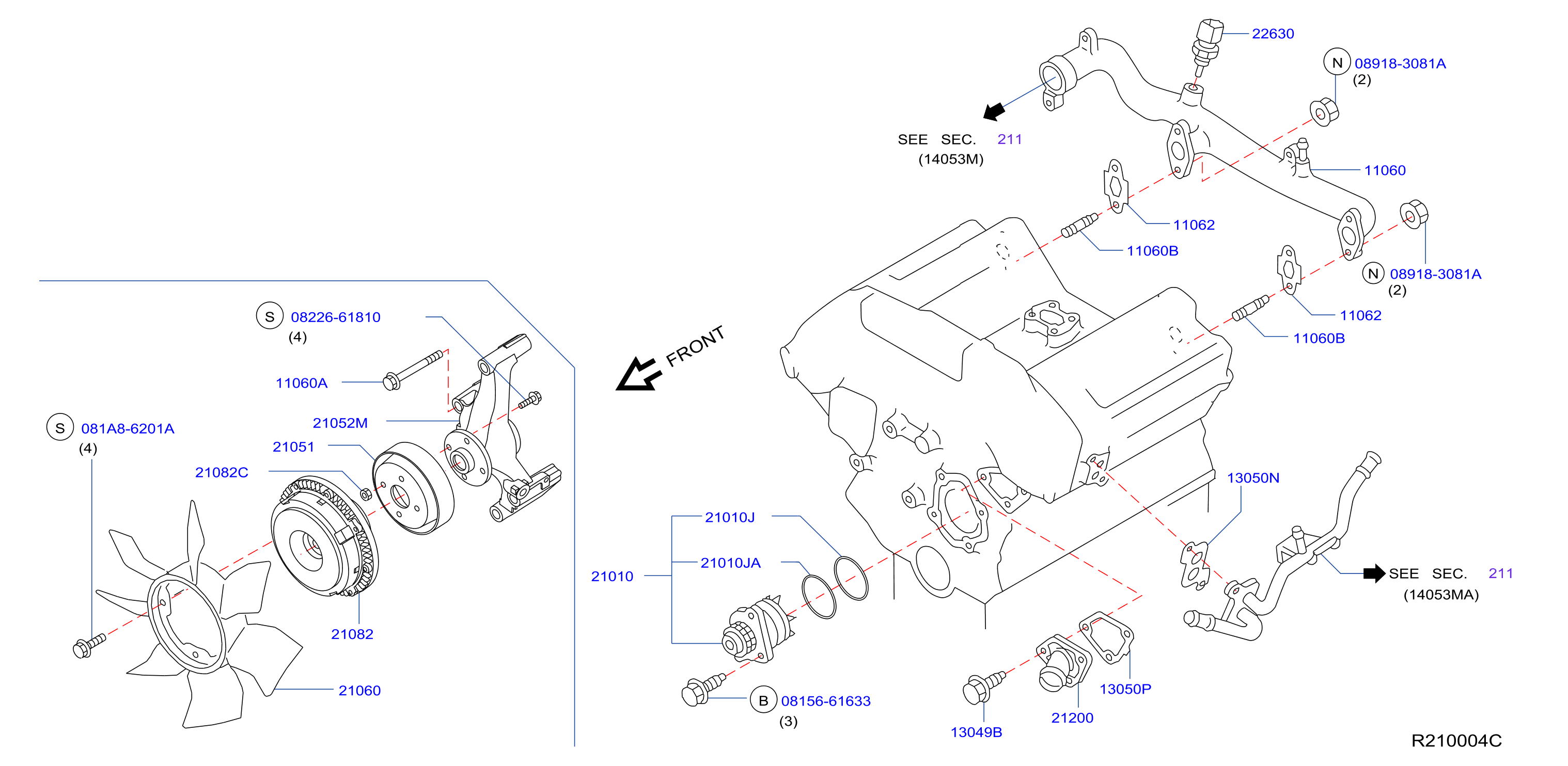

| 210C-001-01 | Water Pump Cooling Fan Thermostat Water Pump Thermostat | 2016 - 2017 |
ENGINE: VQ40DE
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0122500751 | 21082C | NUT | ||
| 0815661633 | 0815661633 | BOLT - HEX | ||
| 081A86201A | 081A86201A | BOLT | ||
| 0822661810 | 0822661810 | STUD | ||
| 089183081A | 089183081A | NUT - FLANGE, HEX | ||
| 11060EA20A | 11060 | OUTLET - WATER | ||
| 11062AL501 | 11062 | GASKET - WATER OUTLET | ||
| 11062AL51A | 11062 | GASKET - WATER OUTLET | ||
| 1191631U0B | 13049B | BOLT | ||
| 119164W02A | 11060A | BOLT | ||
| 1305031U05 | 13050N | GASKET - WATER INLET | ||
| 13050ZA000 | 13050P | GASKET - WATER INLET | ||
| 148952Y52A | 11060B | STUD | ||
| 210107Y01A | 21010 | PUMP ASSY - WATER | ||
| 210107Y026 | 21010 | PUMP ASSY - WATER | ||
| 21046EA200 | 21052M | BRACKET - FAN PULLEY | ||
| 21049ZL80B | 21010J | SEAL - O RING | ||
| 21049ZL80C | 21010JA | SEAL - O RING | ||
| 21051EA200 | 21051 | PULLEY - FAN & WATER PUMP | ||
| 21060EA200 | 21060 | FAN - COOLING | ||
| 21082EA200 | 21082 | COUPLING ASSY - FAN | ||
| 2120031U1B | 21200 | THERMOSTAT ASSY | ||
| 226307Y000 | 22630 | ENGINE COOLANT TEMPERATURE SENSOR | ||
| B10107Y01A | 21010 | PUMP ASSY - WATER |
