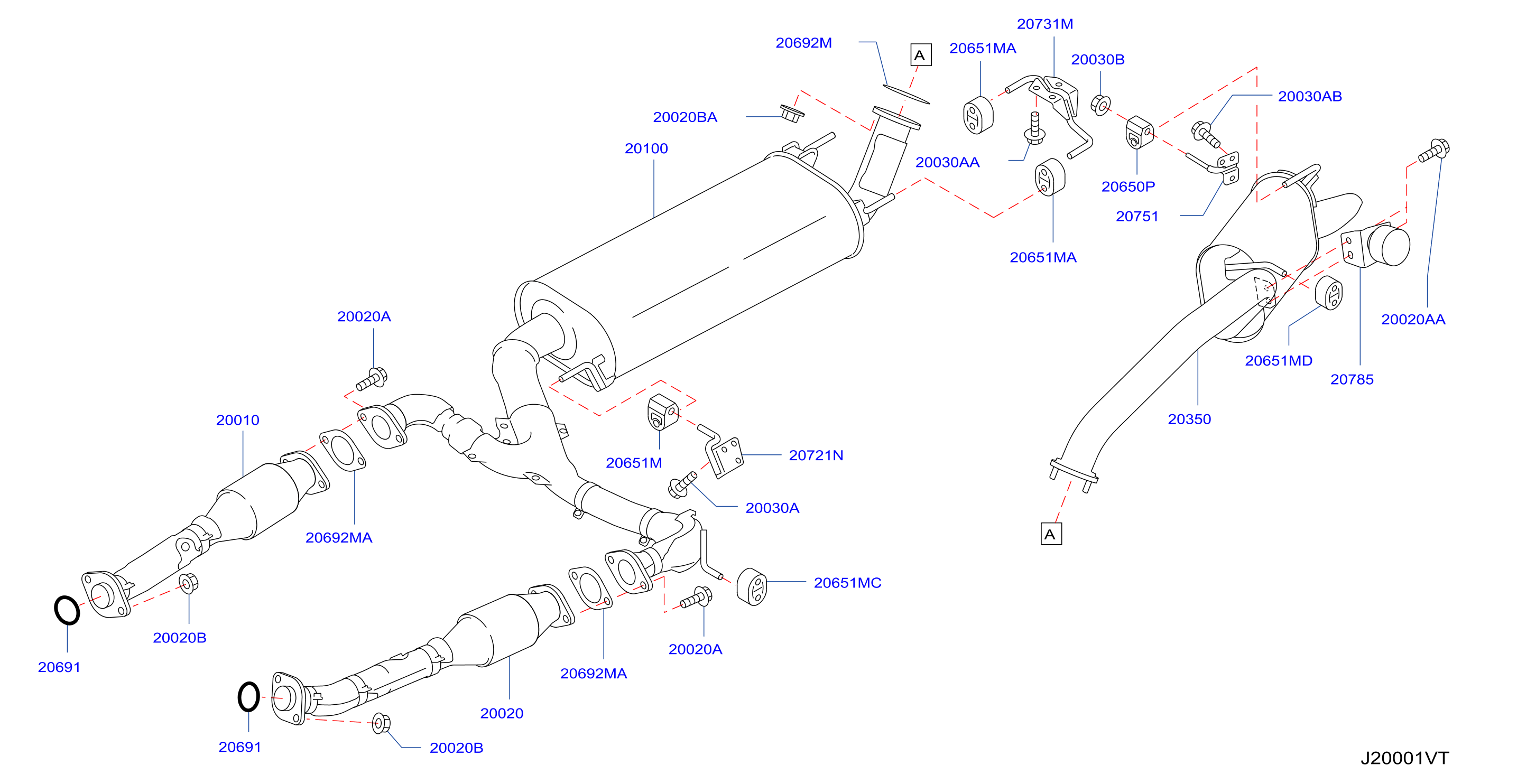

Exhaust Tube Muffler F / Gcc Gom 6Mt Gcc 5At
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 200C-003-01 | Exhaust Tube Muffler F / Gcc Gom 6Mt Gcc 5At | 2012 - 2013 |
DESTINATION: GCC
ENGINE: VK56DE
TRANSMISSION: 5AT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 31
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N0031 | 20020A | BOLT | |||
| 01125N0041 | 20020A | BOLT | |||
| 01125N8031 | 20030A | BOLT | |||
| 01125N8041 | 20030A | BOLT | |||
| 01223N0021 | 20020B | NUT | |||
| 01223N8011 | 20030B | NUT | |||
| 200101LA1A | 20010 | TUBE ASSY - EXHAUST, FRONT | |||
| 200201LA1A | 20020 | TUBE ASSY - EXHAUST, FRONT | |||
| 201001LA0A | 20100 | MUFFLER ASSY - EXHAUST, MAIN | |||
| 201001LA2A | 20100 | MUFFLER ASSY - EXHAUST, MAIN |
of
4
