Floor Panel
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 740A-002-07 | Floor Panel | 2016 - ... |
BODY: K
|
No illustration for this section
The full parts list is available below

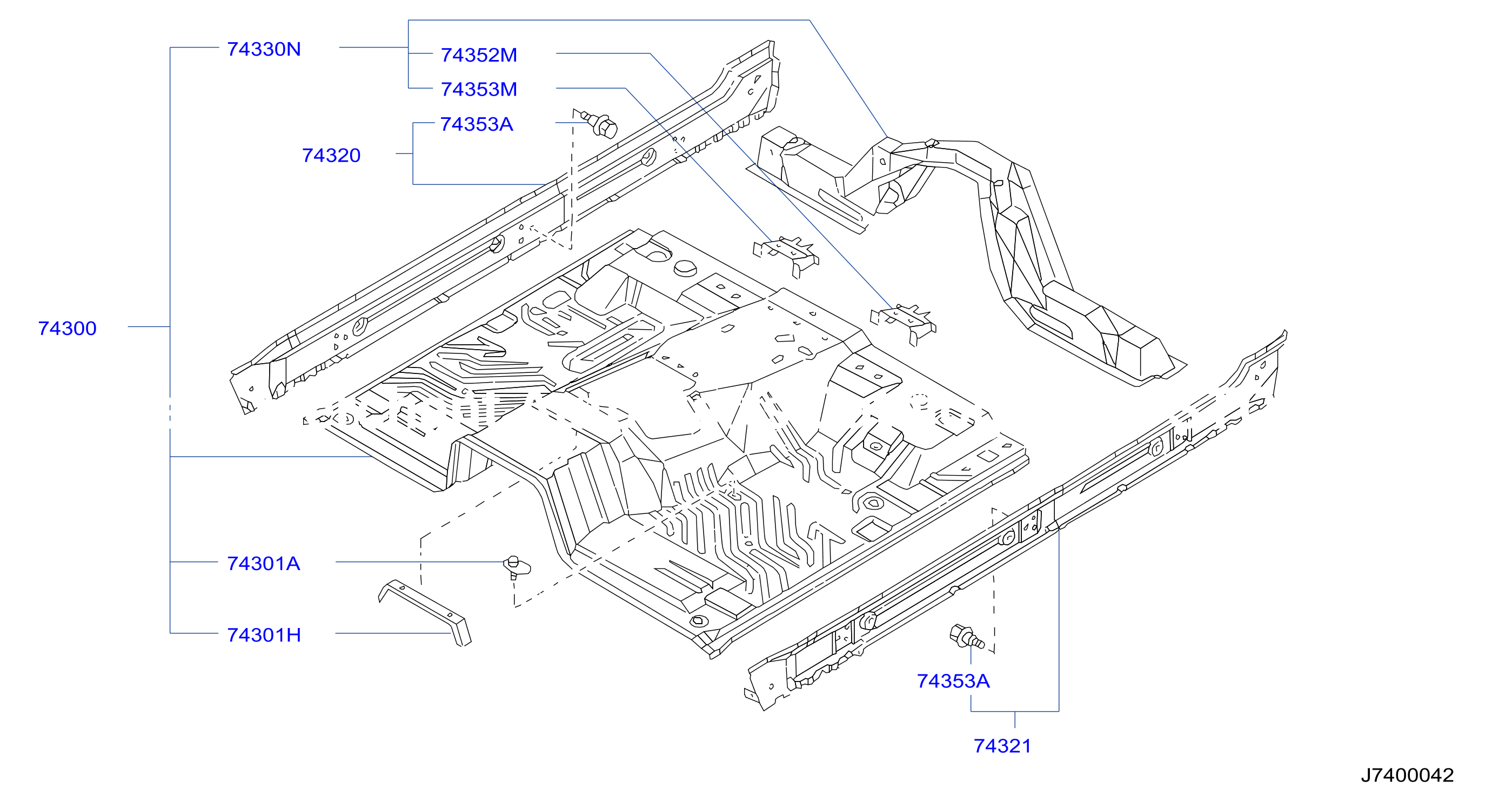

Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0111100891 | 74353A | BOLT | |||
| 74300VB000 | 74300 | FLOOR ASSY - FRONT | |||
| 74300VC000 | 74300 | FLOOR ASSY - FRONT | |||
| 74300VC305 | 74300 | FLOOR ASSY - FRONT | |||
| 74300VD305 | 74300 | FLOOR ASSY - FRONT | |||
| 74300VV15A | 74300 | FLOOR ASSY - FRONT | |||
| 74330VB000 | 74330N | MEMBER ASSY - CROSS, 2ND | |||
| 74340VB000 | 74352M | BRACKET - FRONT SEAT MOUNTING, INNER RH | |||
| 74341VB000 | 74353M | BRACKET - FRONT SEAT MOUNTING, INNER LH | |||
| 74390VB000 | 74301H | REINFORCE - INSTRUMENT STAY |
