| Code | Name | Period | Specifications |
|---|---|---|---|

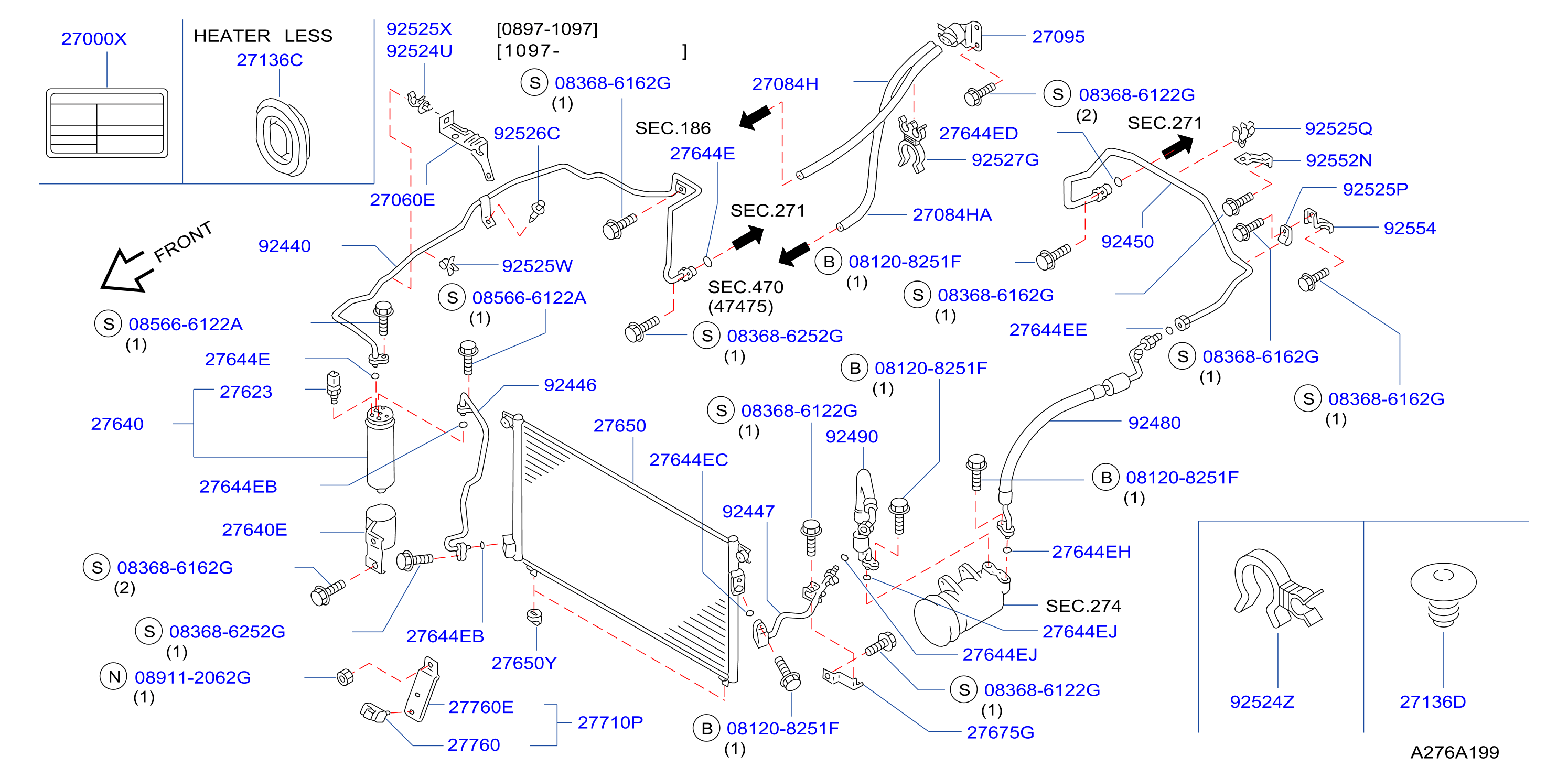

| 276A-001-01 | Condenser Liquid Tank Piping Front Piping | 1997 - 1998 |
BODY: K
ENGINE: TB42S
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0155309321 | 92526C | CLIP | ||
| 0165800671 | 27136C | PLUG | ||
| 0165801481 | 27136D | PLUG | ||
| 081208251F | 081208251F | BOLT - HEX | ||
| 083686122G | 083686122G | SCR - HEX HD, PP W | ||
| 083686162G | 083686162G | SCR - HEX HD, PP W | ||
| 083686252G | 083686252G | BOLT | ||
| 085666122A | 085666122A | SCREW - TAPPING | ||
| 089112062G | 089112062G | NUT - HEX | ||
| 242200Y000 | 92527G | CLIP | ||
| 25237VB000 | 27060E | BRACKET - RELAY | ||
| 27090VB000 | 27000X | LABEL - CAUTION, AIR CONDITIONER | ||
| 4627150L10 | 92524U | CLIP | ||
| 92110VB000 | 27650 | CONDENSER ASSY | ||
| 9211951E00 | 27650Y | MOUNTING - RUBBER, CONDENSER, LOWER | ||
| 921310V010 | 27640 | TANK ASSY - LIQUID | ||
| 92135VB000 | 27640E | BRACKET - LIQUID TANK | ||
| 921370W000 | 27623 | SWITCH ASSY - PRESSURE | ||
| 9215090R00 | 27084HA | HOSE - VACUUM | ||
| 92150VB500 | 27084HA | HOSE - VACUUM | ||
| 9215179905 | 27084H | HOSE - VACUUM | ||
| 92151VB500 | 27084H | HOSE - VACUUM | ||
| 9225560A00 | 27095 | VALVE - VACUUM MAGNET | ||
| 92255VB200 | 27095 | VALVE - VACUUM MAGNET | ||
| 92440VB000 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92446VB000 | 92446 | PIPE ASSY COMPL - COOLER | ||
| 92447VB000 | 92447 | PIPE ASSY - COOLER, COMPRESSOR TO CONDENSER | ||
| 92450VB000 | 92450 | PIPE - FRONT COOLER, LOW | ||
| 92450VB005 | 92450 | PIPE - FRONT COOLER, LOW | ||
| 92471N8210 | 27644E | SEAL - O RING | ||
| 92472N8210 | 27644EC | SEAL - O RING | ||
| 92473N8210 | 27644ED | SEAL - O RING | ||
| 92474N8210 | 27644EE | SEAL - O RING | ||
| 92480VB000 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92480VB005 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92490VB000 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92490VB005 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 92520VB000 | 92524Z | CLIP | ||
| 92520VB001 | 92524Z | CLIP | ||
| 9255070F00 | 92525P | CLIP | ||
| 9255151E00 | 92525Q | CLIP | ||
| 92552VB000 | 92552N | BRACKET - TUBE CLIP | ||
| 92554VB000 | 92554 | BRACKET - PIPE | ||
| 92555VB000 | 92525W | CLIP | ||
| 92556VB000 | 27675G | BRACKET - CLAMP | ||
| 925593C000 | 92525X | CLIP |
