| Code | Name | Period | Specifications |
|---|---|---|---|

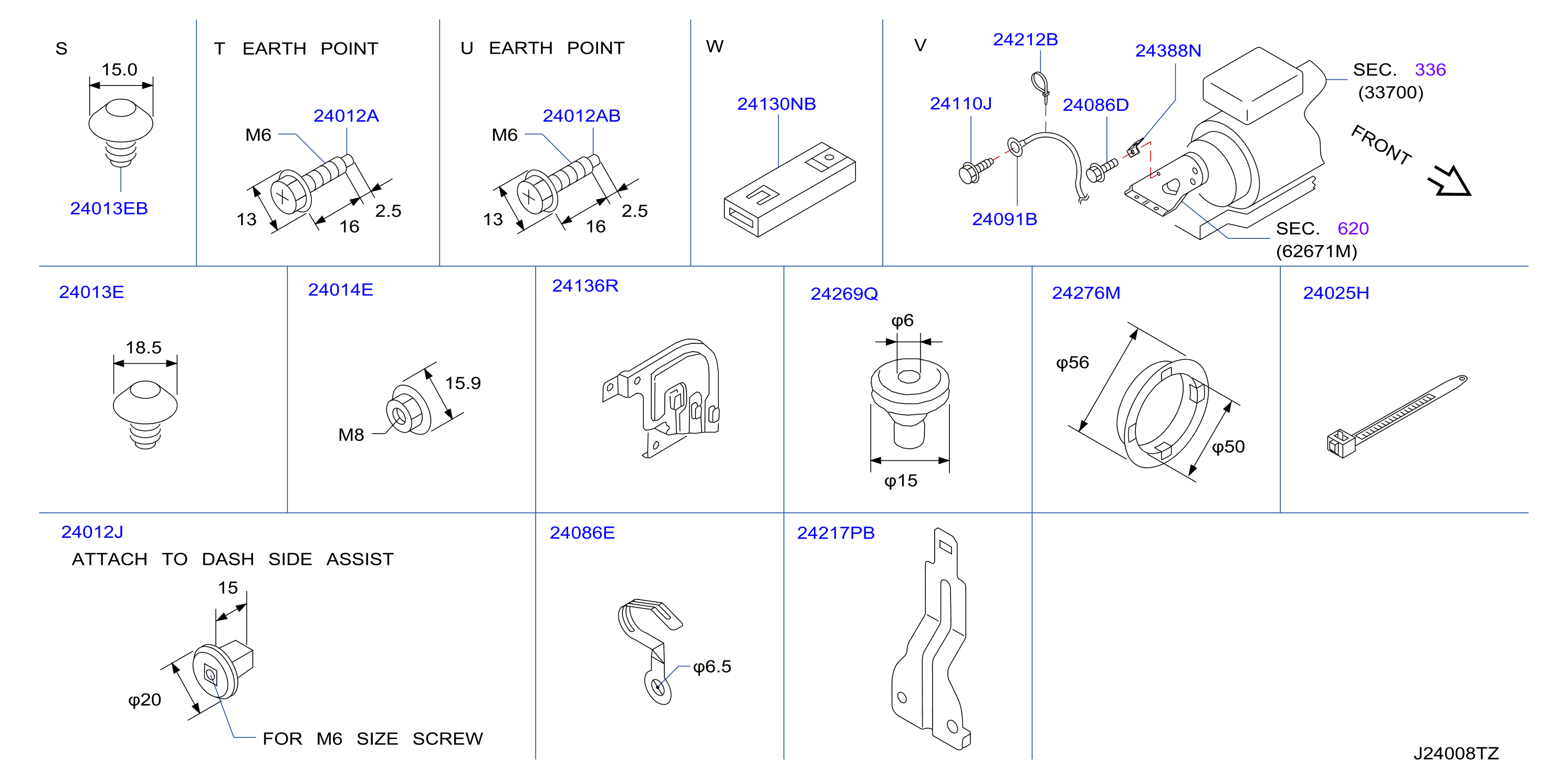

| 240H-037-01 | Wiring Body | 2012 - 2016 |
BODY: W
ENGINE: ZD30DDTI
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112500931 | 24110J | BOLT | ||
| 0122100381 | 24014E | NUT | ||
| 0128100711 | 24012J | GROMMET - SCREW | ||
| 0145600031 | 24012A | SCREW | ||
| 0146600161 | 24086D | SCREW | ||
| 0155100291 | 24086E | CLIP | ||
| 0155200033 | 24212B | CLIP - WIRING HARNESS | ||
| 0155200043 | 24212B | CLIP - WIRING HARNESS | ||
| 0155200481 | 24212B | CLIP - WIRING HARNESS | ||
| 0165801131 | 24269Q | PLUG - BLIND | ||
| 0165801481 | 24013E | PLUG | ||
| 0165801501 | 24013E | PLUG | ||
| 24088VB000 | 24091B | HARNESS - SUB WINCH, B | ||
| 24088VC200 | 24091B | HARNESS - SUB WINCH, B | ||
| 24088VS40A | 24091B | HARNESS - SUB WINCH, B | ||
| 24088WG00A | 24091B | HARNESS - SUB WINCH, B | ||
| 24220R2000 | 24025H | CLAMP | ||
| 24239VB801 | 24217PB | BRACKET - HARNESS CLIP | ||
| 24239VB80B | 24217PB | BRACKET - HARNESS CLIP | ||
| 24276V5100 | 24276M | PROTECTOR - HARNESS | ||
| 24335C9900 | 24130NB | DIODE | ||
| 24346VB020 | 24136R | BRACKET - CONNECTOR | ||
| 24346VB02B | 24136R | BRACKET - CONNECTOR | ||
| 25237VG210 | 24388N | BRACKET - RELAY BOX |
