| Code | Name | Period | Specifications |
|---|---|---|---|

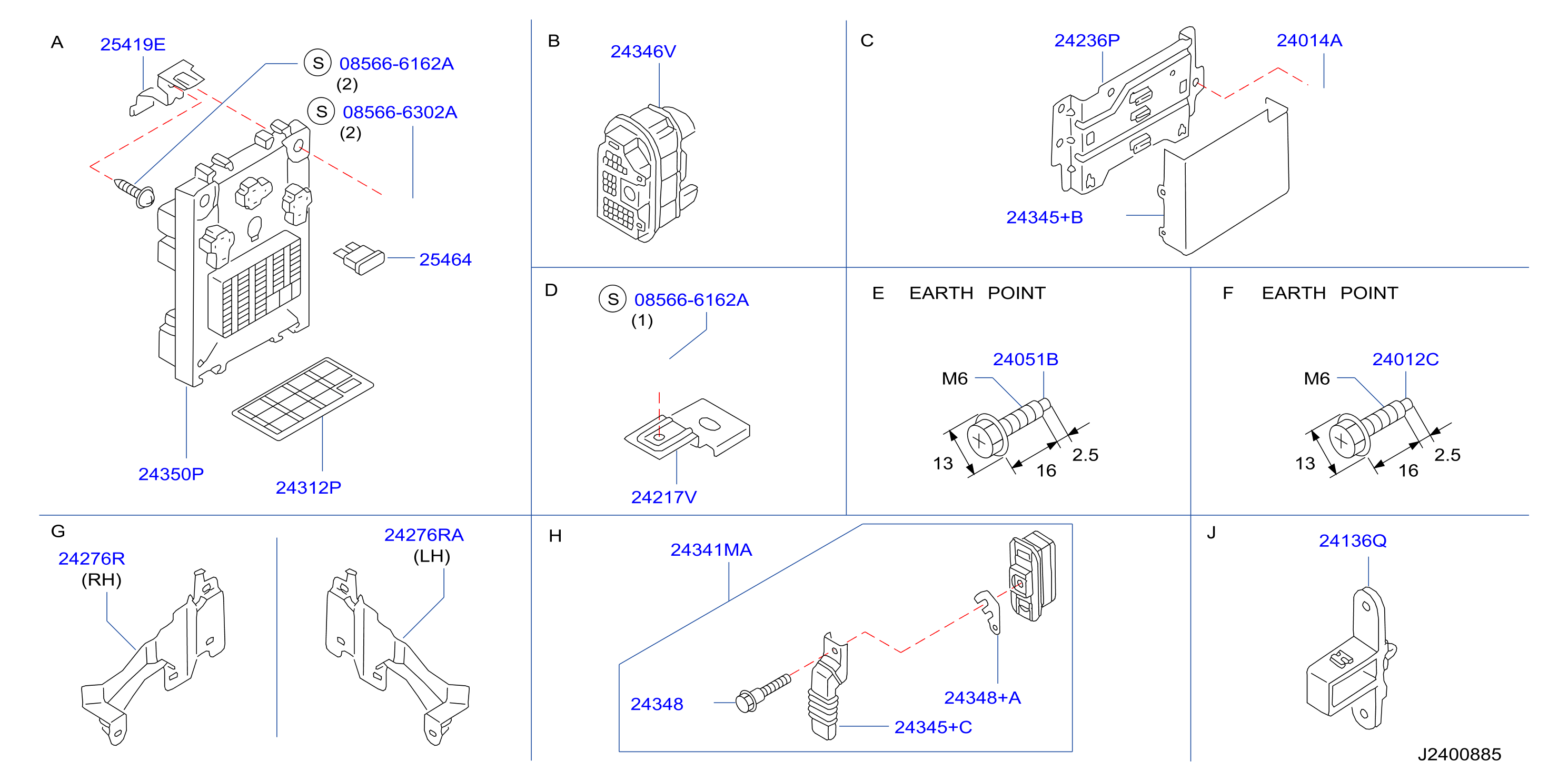

| 240G-053-01 | Wiring Body Fitting | 2011 - 2012 |
BODY: K
ENGINE: ZD30DDTI
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0142600061 | 24014A | SCREW | ||
| 0145600031 | 24012C | SCREW | ||
| 085666162A | 085666162A | SCREW - TAPPING | ||
| 085666302A | 085666302A | SCREW - TAPPING | ||
| 24239VB060 | 24217V | BRACKET - HARNESS CLIP | ||
| 24239VB06A | 24217V | BRACKET - HARNESS CLIP | ||
| 24277VB010 | 24276RA | PROTECTOR - HARNESS | ||
| 24277VB011 | 24276R | PROTECTOR - HARNESS | ||
| 24313VC000 | 24312P | LABEL - FUSE BLOCK | ||
| 24313VC800 | 24312P | LABEL - FUSE BLOCK | ||
| 24313VD400 | 24312P | LABEL - FUSE BLOCK | ||
| 24317VB800 | 25419E | BRACKET - FUSE BLOCK | ||
| 24319C9907 | 25464 | FUSE | ||
| 24319C9910 | 25464 | FUSE | ||
| 24319C9915 | 25464 | FUSE | ||
| 24319C9920 | 25464 | FUSE | ||
| 24341VB011 | 24346V | HOLDER - CONNECTOR CASE | ||
| 24342VB011 | 24341MA | HOUSING - CONNECTOR | ||
| 24345VB011 | 24345+C | COVER - CONNECTOR | ||
| 24345VB060 | 24345+B | COVER - CONNECTOR | ||
| 24346VB000 | 24136Q | BRACKET ASSY - CONNECTOR | ||
| 24346VB060 | 24236P | BRACKET - CONNECTOR | ||
| 24346VC200 | 24236P | BRACKET - CONNECTOR | ||
| 24346VC20A | 24236P | BRACKET - CONNECTOR | ||
| 24348VB010 | 24348 | WASHER - JUNCTION | ||
| 24348VB011 | 24348+A | WASHER - JUNCTION | ||
| 24350VC000 | 24350P | BLOCK ASSY - JUNCTION | ||
| 24350VS50A | 24350P | BLOCK ASSY - JUNCTION |
