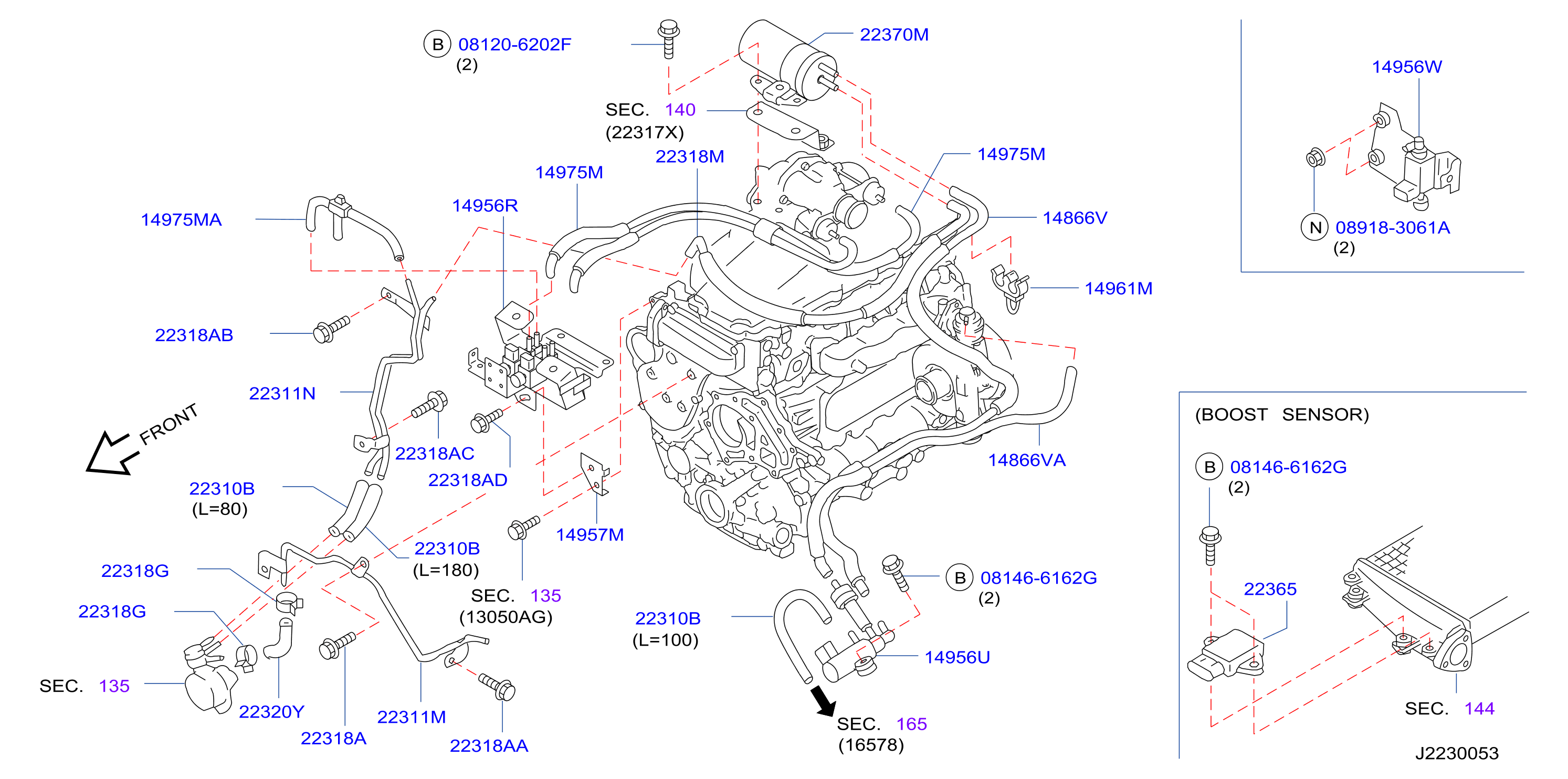

Engine Control Vacuum Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 223Q-004-02 | Engine Control Vacuum Piping | 2001 - 2001 |
ENGINE: ZD30DDTI
|
No illustration for this section
The full parts list is available below
Parts in this diagram 39
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112506164 | 22318AA | BOLT | |||
| 0112508124 | 22318AC | BOLT | |||
| 0112508164 | 22318A | BOLT | |||
| 0155201071 | 14961M | CLAMP - HOSE, A | |||
| 0218730803 | 22310B | HOSE - VACUUM CONTROL | |||
| 0218731003 | 22310B | HOSE - VACUUM CONTROL | |||
| 081206202F | 081206202F | BOLT - HEX | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 089183061A | 089183061A | NUT - FLANGE, HEX | |||
| 14917VC101 | 14866V | HOSE - VACUUM |
