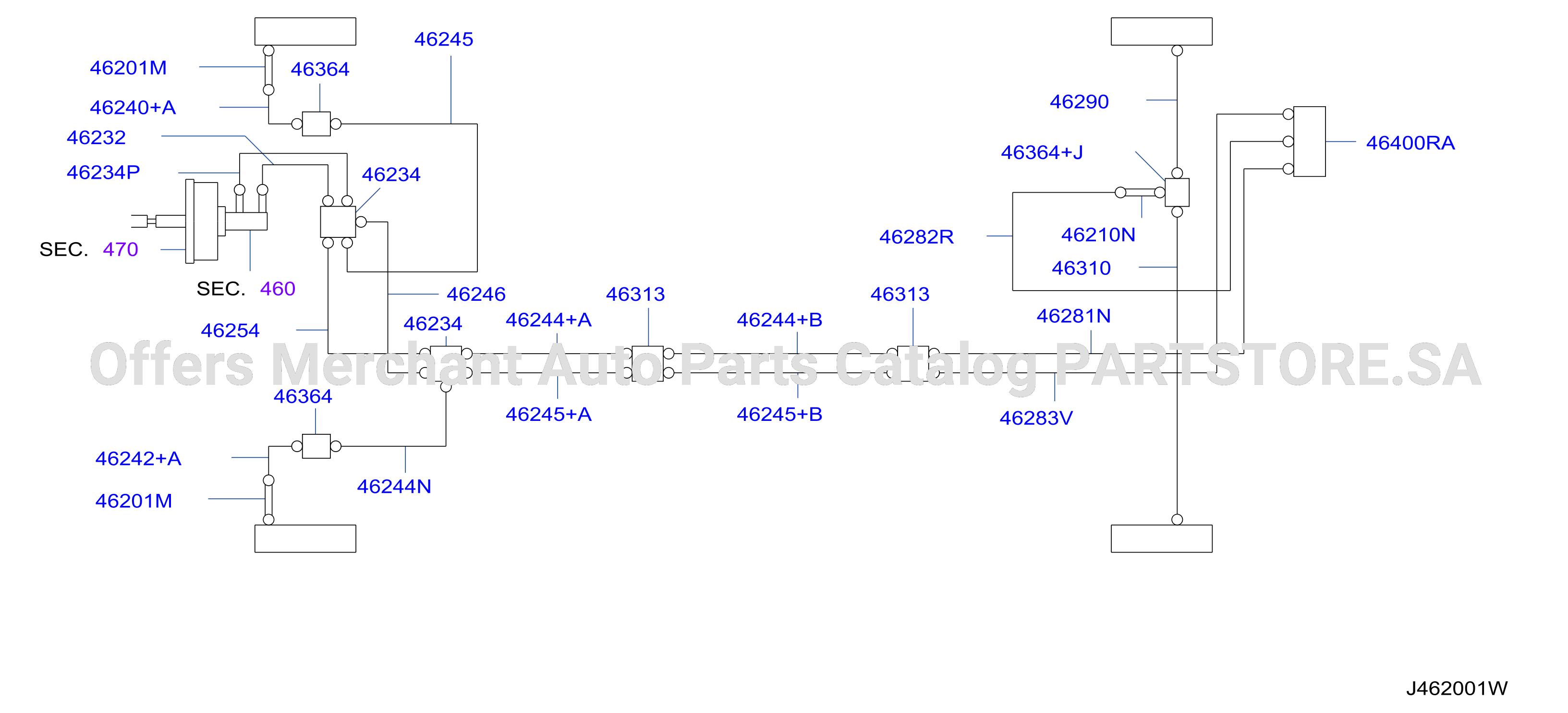

Brake Piping Control Piping Drawing
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-013-01 | Brake Piping Control Piping Drawing | 1999 - 2002 |
BODY: B
ENGINE: L28S
|
No illustration for this section
The full parts list is available below
Parts in this diagram 27
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 46210WJ100 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210WJ600 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462110M644 | 46210N | HOSE ASSY - BRAKE | |||
| 46234R8000 | 46234 | CONNECTOR | |||
| 4624041T01 | 46240+A | TUBE ASSY - BRAKE, FRONT RH | |||
| 4624241T01 | 46242+A | TUBE ASSY - BRAKE, FRONT LH | |||
| 46244WJ100 | 46244N | TUBE ASSY - BRAKE, CONNECTOR TO CONNECTOR | |||
| 46244WJ600 | 46244+A | TUBE ASSY - BRAKE, FRONT | |||
| 46244WJ601 | 46244+B | TUBE ASSY - BRAKE, FRONT | |||
| 462450T012 | 46245 | TUBE ASSY - FRONT BRAKE, RH |
of
3
