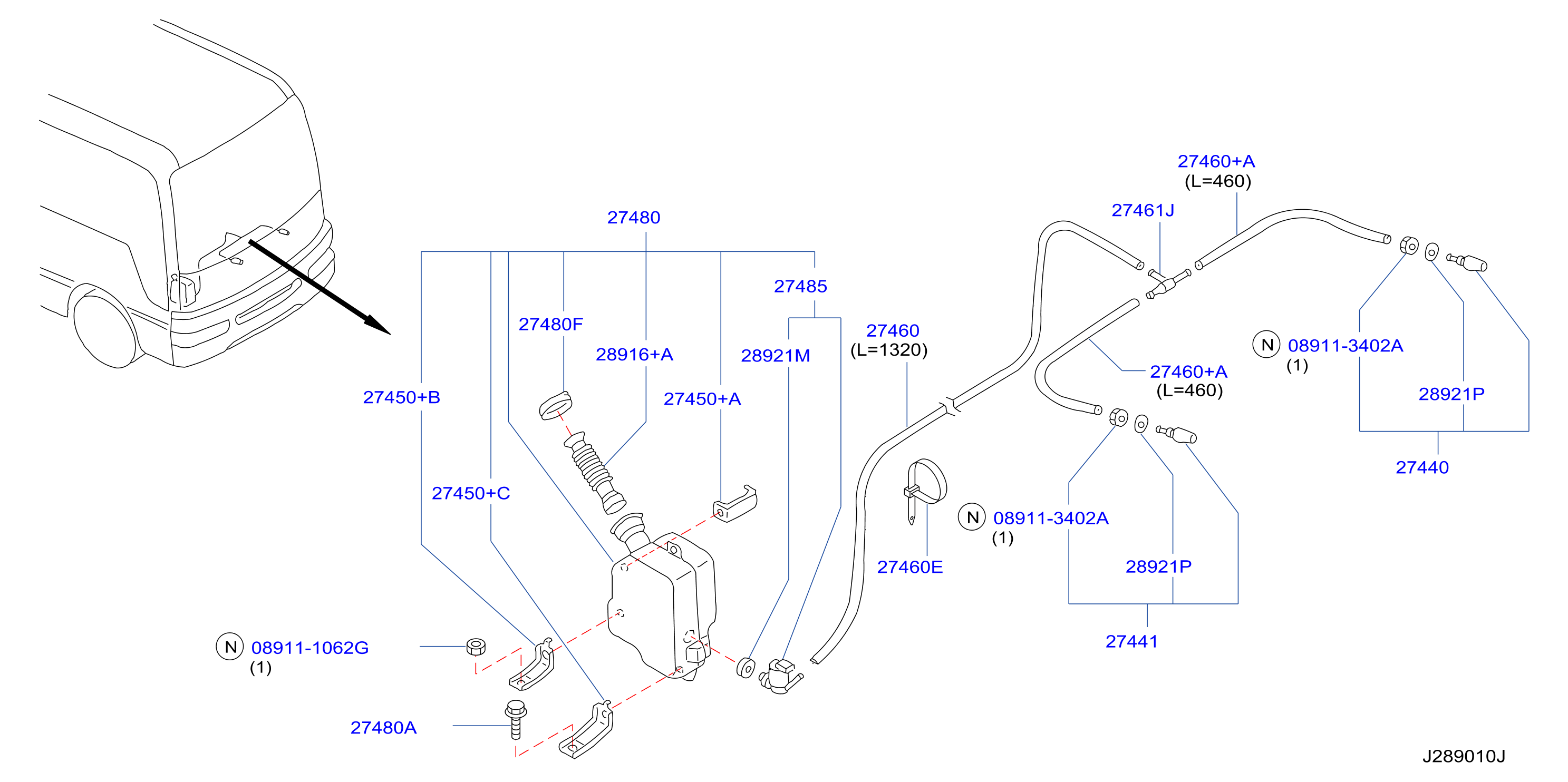

Windshield Washer Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 289A-010-01 | Windshield Washer Front Piping | 2017 - ... |
BODY: B
|
No illustration for this section
The full parts list is available below
Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0145600031 | 27480A | SCREW | |||
| 0155200043 | 27460E | CLIP | |||
| 089111062G | 089111062G | NUT - HEX | |||
| 089113402A | 089113402A | NUT - HEX | |||
| 2741689900 | 27461J | JOINT - REAR WASHER TUBE | |||
| 28910WJ61B | 27480 | TANK ASSY - WINDSHIELD WASHER | |||
| 289130T001 | 27480F | CAP - WINDSHIELD WASHER TANK | |||
| 289130T00A | 27480F | CAP - WINDSHIELD WASHER TANK | |||
| 28916WJ100 | 28916+A | INLET - WASHER TANK | |||
| 2892050Y00 | 27485 | PUMP ASSY - FRONT WASHER |
of
3
