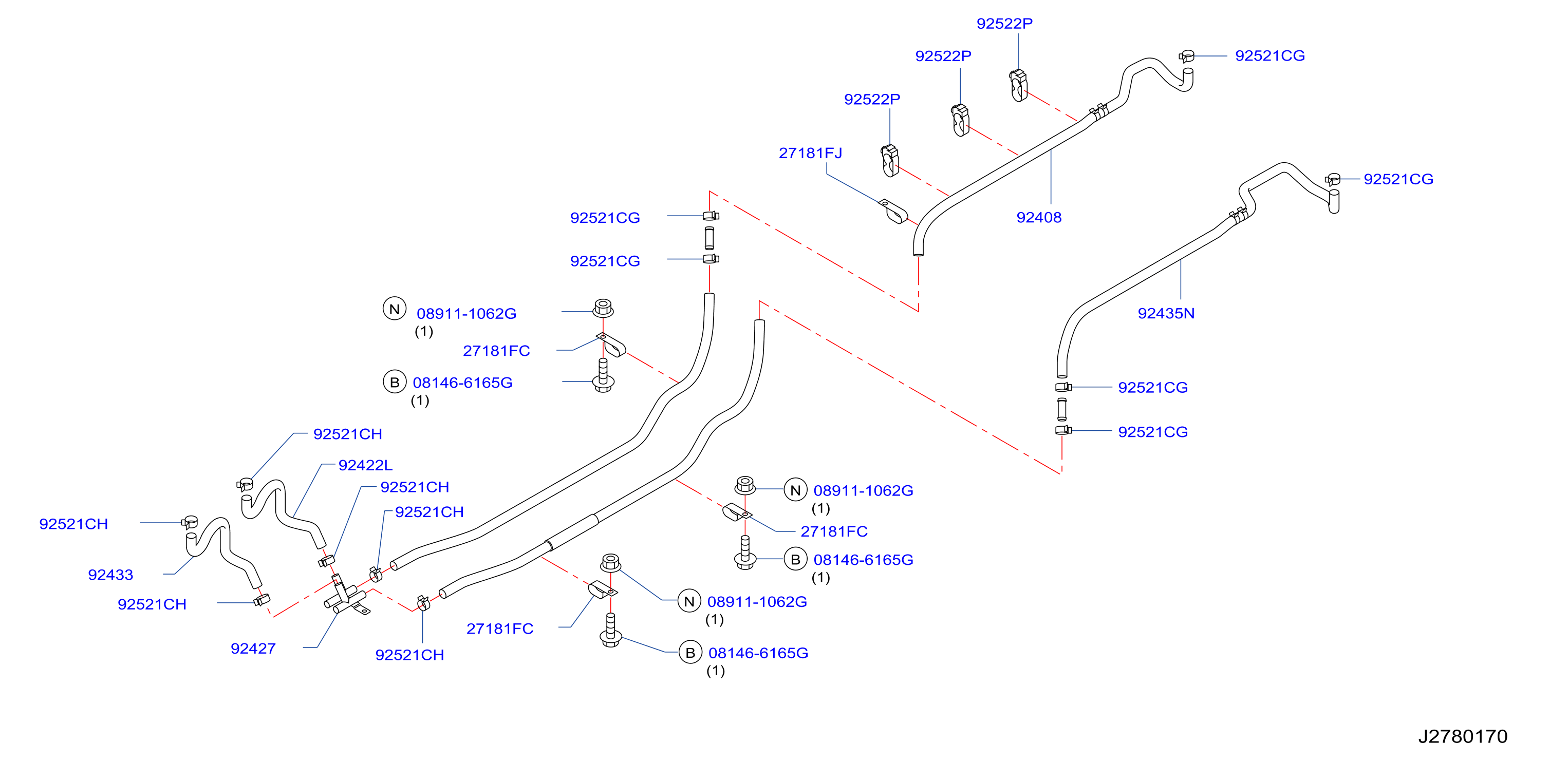

Heater Piping Rear Piping Std
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 278B-015-01 | Heater Piping Rear Piping Std | 2015 - 2017 |
BODY: B
ENGINE: ZD30DDTI
|
No illustration for this section
The full parts list is available below
Parts in this diagram 11
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155800511 | 92521CG | CLIP | |||
| 081466165G | 081466165G | BOLT - HEX | |||
| 089111062G | 089111062G | NUT - HEX | |||
| 27093T3000 | 27181FC | CLIP | |||
| 92422WN90A | 92422L | HOSE ASSY - REAR HEATER, INLET B | |||
| 92425WK71A | 92408 | HOSE ASSY - HEATER, OUT & INLET | |||
| 92427WK50A | 92427 | TUBE - REAR HEATER, OUTLET | |||
| 92432WN90A | 92433 | HOSE - WATER A | |||
| 92435WK71A | 92435N | HOSE - REAR HEATER, OUTLET | |||
| 92520WK70A | 27181FJ | CLIP |
of
2
