| Code | Name | Period | Specifications |
|---|---|---|---|

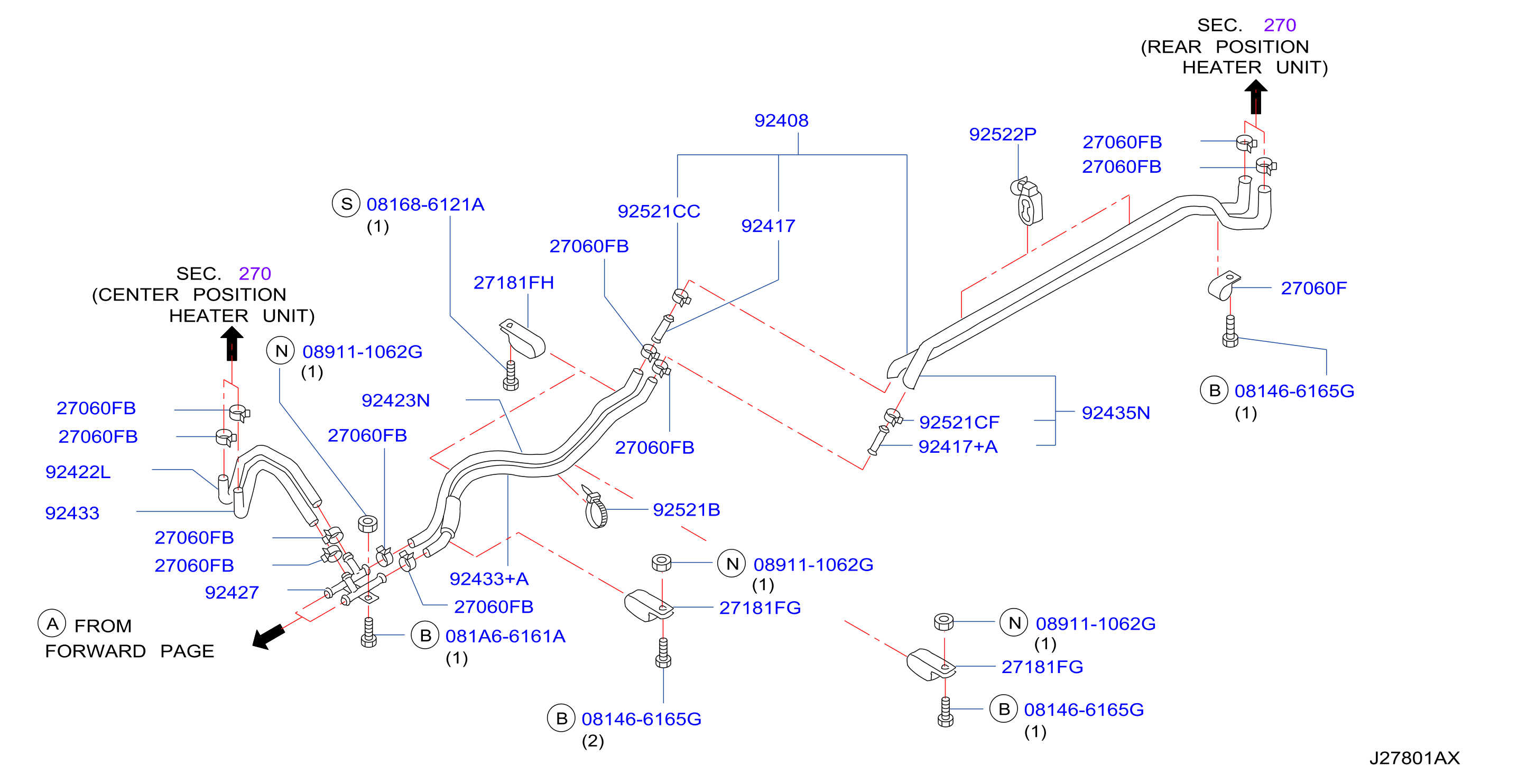

| 278A-003-01 | Heater Piping Rear Piping Long | 2017 - ... |
BODY: B
ENGINE: TB45E
|
Parts in this diagram 18
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155200043 | 92521B | CLIP | |||
| 0155501121 | 92521CF | CLIP | |||
| 0155800511 | 92521CC | CLIP | |||
| 081466165G | 081466165G | BOLT - HEX | |||
| 081686121A | 081686121A | SCREW | |||
| 081A66161A | 081A66161A | BOLT - FLANGE, HEX | |||
| 089111062G | 089111062G | NUT - HEX | |||
| 217507990A | 27060FB | CLIP | |||
| 27093T3000 | 27181FG | CLIP | |||
| 92417WJ100 | 92417 | CONNECTOR - HEATER | |||
| 92422WY110 | 92422L | HOSE ASSY - REAR HEATER, INLET B | |||
| 92423WM82A | 92423N | HOSE - REAR HEATER, INLET | |||
| 92425WK71A | 92408 | HOSE ASSY - HEATER, OUT & INLET | |||
| 92427WK50A | 92427 | TUBE - REAR HEATER, OUTLET | |||
| 92432WY110 | 92433 | HOSE - WATER A | |||
| 92433WM82A | 92433+A | HOSE - WATER A | |||
| 92435WK71A | 92435N | HOSE - REAR HEATER, OUTLET | |||
| 9255571L00 | 92522P | CLIP |
