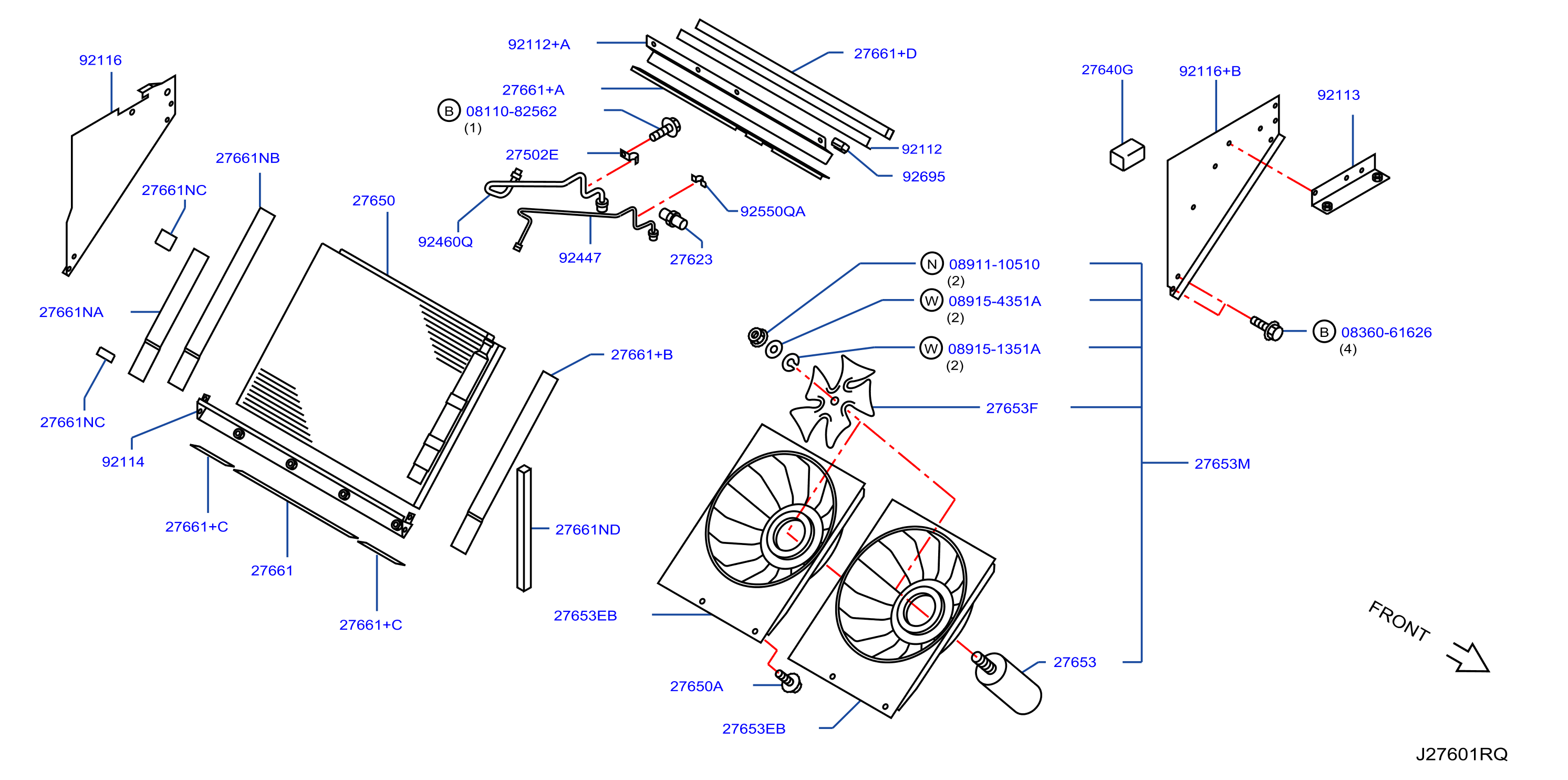

Condenser Liquid Tank Piping Condensor Rh W / O Cooler Pipe
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276D-011-01 | Condenser Liquid Tank Piping Condensor Rh W / O Cooler Pipe | 2013 - 2015 |
BODY: B
ENGINE: TB45E
|
No illustration for this section
The full parts list is available below
Parts in this diagram 34
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0811082562 | 0811082562 | BOLT - HEX | |||
| 0836061626 | 0836061626 | SCREW - MACHINE | |||
| 0891110510 | 0891110510 | NUT - HEX | |||
| 089151351A | 089151351A | WASHER - SPRING | |||
| 089154351A | 089154351A | WASHER - LOCK | |||
| 92110WK80A | 27650 | CONDENSER ASSY | |||
| 92112WK80A | 92112 | BRACKET ASSY - CONDENSER | |||
| 92112WK80B | 92112+A | BRACKET ASSY - CONDENSER | |||
| 92113WK80A | 92113 | BRACKET ASSY - CONDENSER | |||
| 92114WK80A | 92114 | BRACKET - CONDENSER |
of
4
