Water Hose Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 211J-001-01 | Water Hose Piping | 2015 - 2017 |
ENGINE: ZD30DDTI
|
No illustration for this section
The full parts list is available below

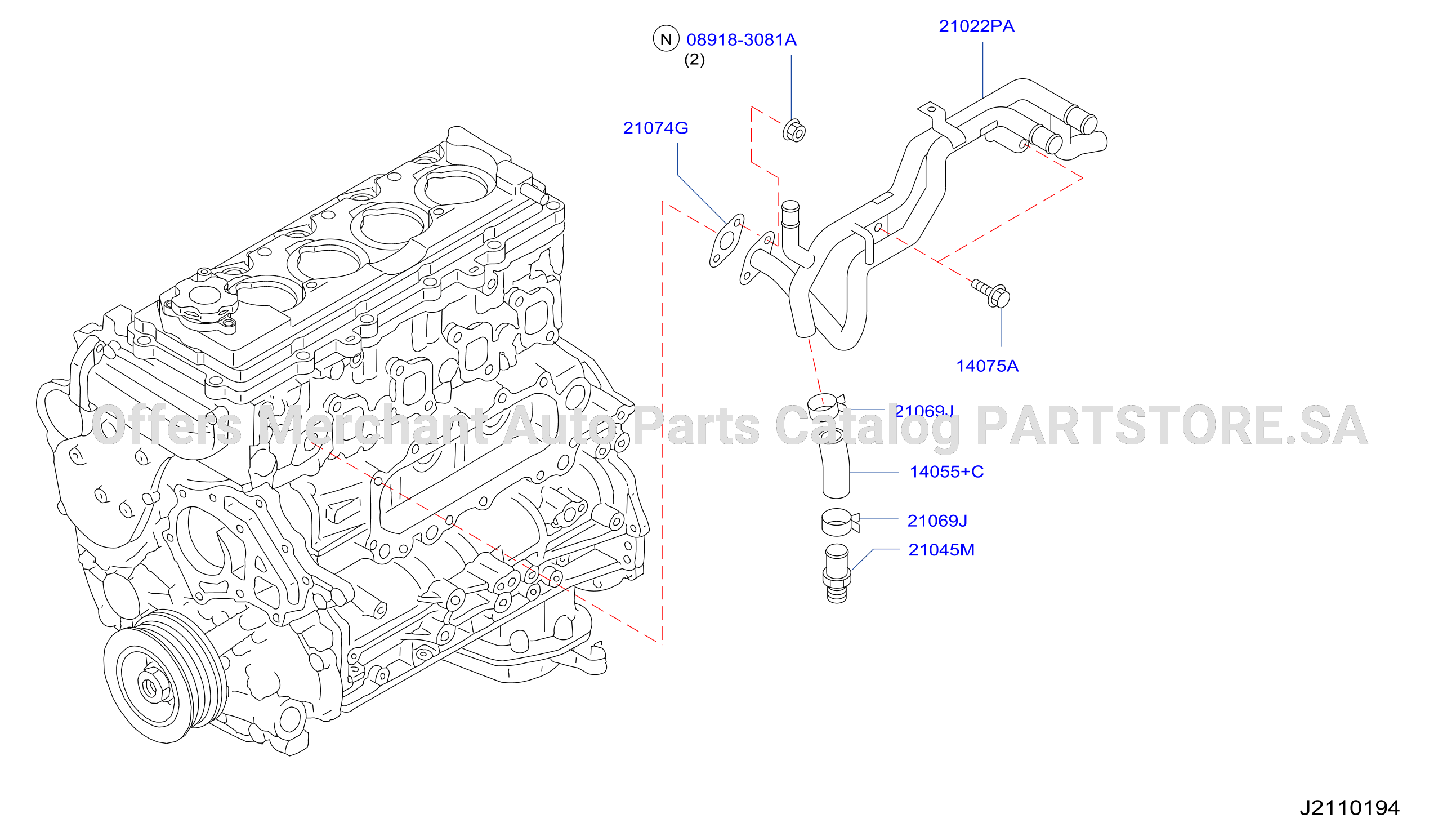

Parts in this diagram 7
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112508164 | 14075A | BOLT - PIPE | |||
| 0155800154 | 21069J | CLAMP - HOSE | |||
| 089183081A | 089183081A | NUT - FLANGE, HEX | |||
| 14055MA70C | 14055+C | HOSE - WATER | |||
| 210162W20A | 21045M | CONNECTOR - WATER PUMP | |||
| 21022WN80A | 21022PA | PIPE ASSY - HEATER | |||
| 210742W201 | 21074G | GASKET - PIPE |
