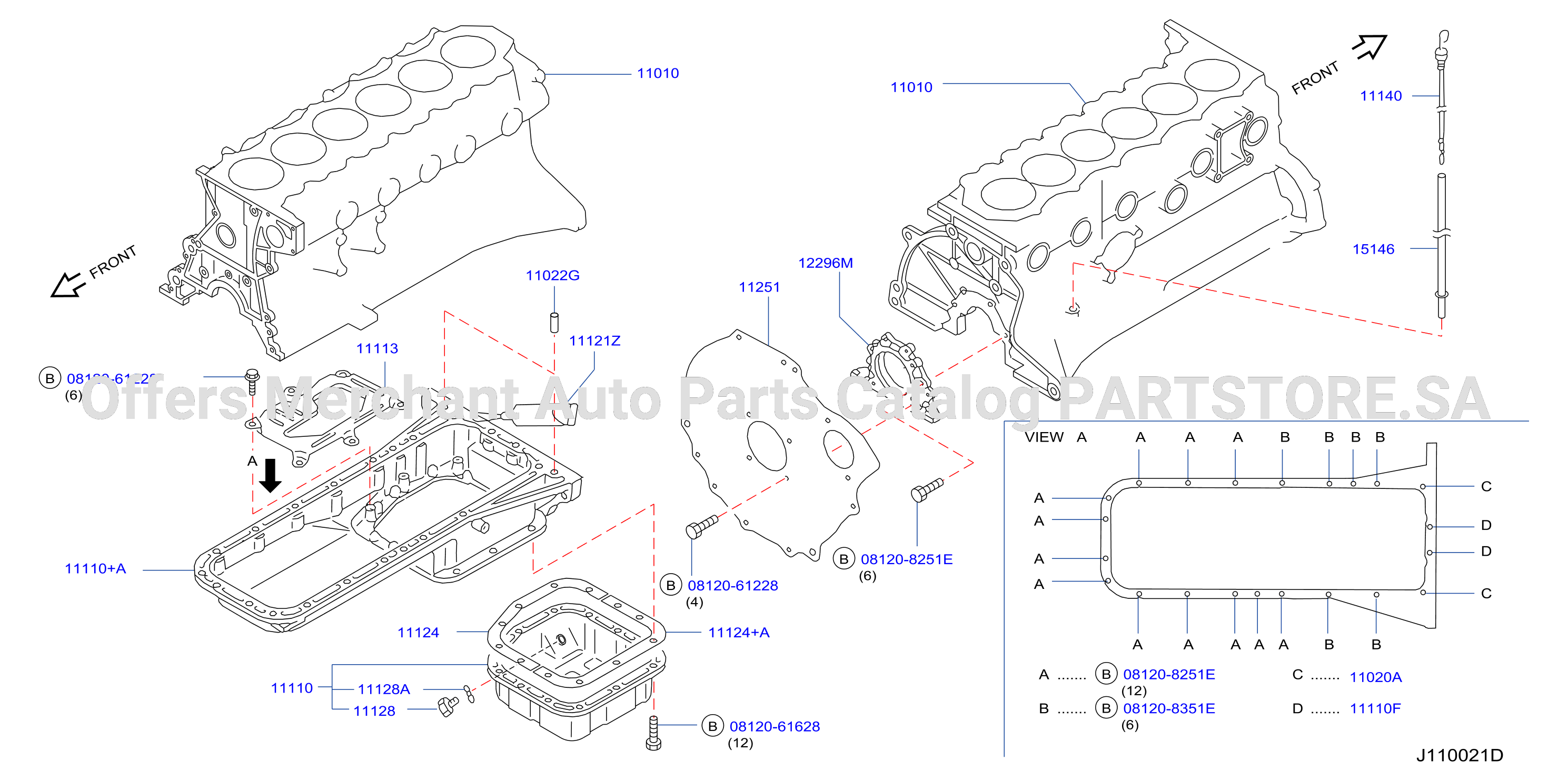

Cylinder Block Oil Pan Assembly
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 110E-004-02 | Cylinder Block Oil Pan Assembly | 2015 - 2017 |
ENGINE: TB45E
|
Parts in this diagram 23
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112103851 | 11020A | BOLT | |||
| 0812061228 | 0812061228 | BOLT - HEX | |||
| 0812061628 | 0812061628 | BOLT - HEX | |||
| 081208251E | 081208251E | BOLT - HEX | |||
| 081208351E | 081208351E | BOLT - HEX | |||
| 11010VB000 | 11010 | BLOCK ASSY - CYLINDER | |||
| 11010VB001 | 11010 | BLOCK ASSY - CYLINDER | |||
| 11010VB01A | 11010 | BLOCK ASSY - CYLINDER | |||
| 11022VB000 | 11022G | PIN - DOWEL | |||
| 1102661000 | 11128A | WASHER - DRAIN PLUG |
of
3
