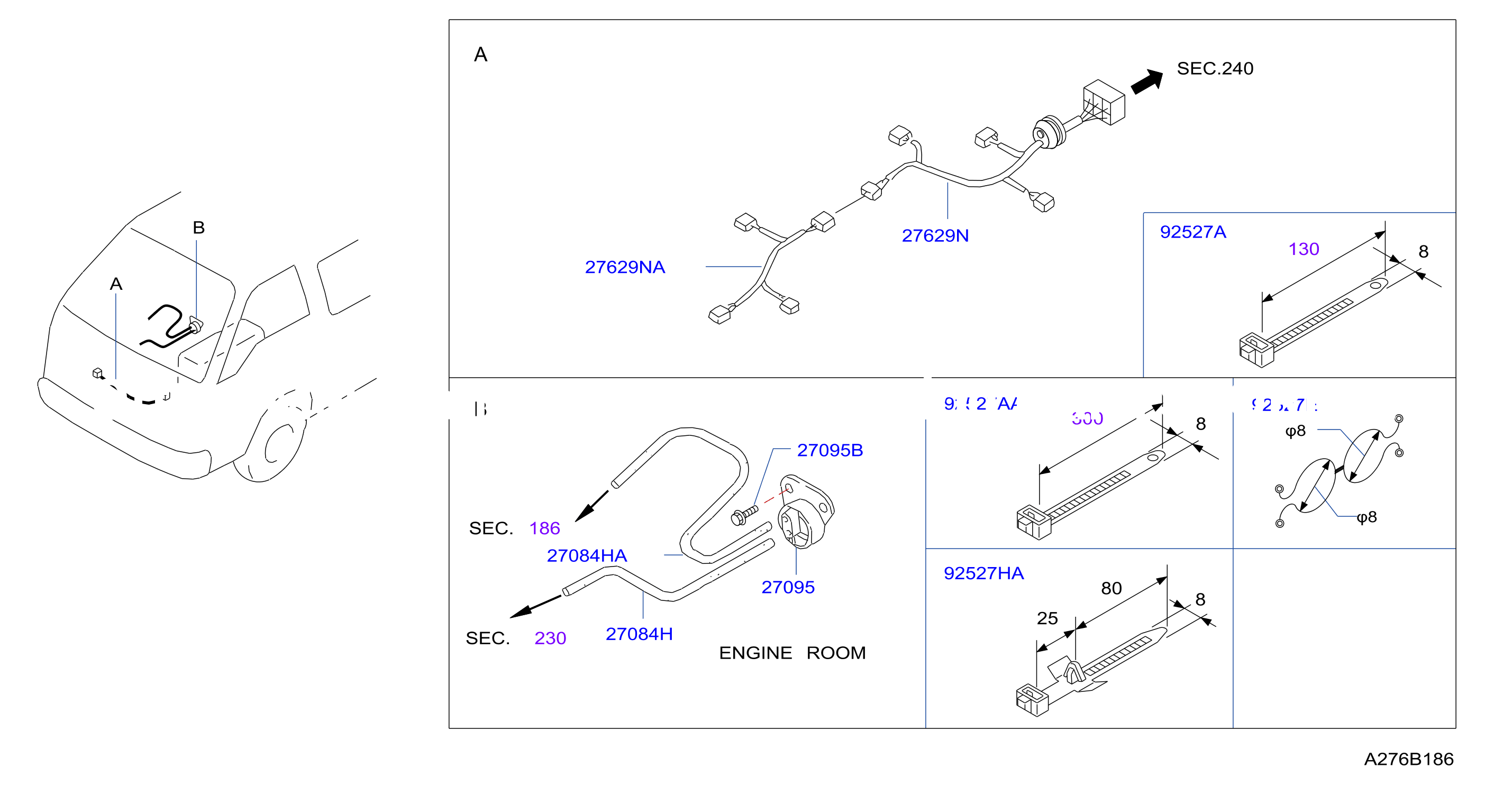

Condenser Liquid Tank Piping Harness
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276B-004-01 | Condenser Liquid Tank Piping Harness | 1997 - 1999 |
BODY: PV
ENGINE: Z24S
|
No illustration for this section
The full parts list is available below
Parts in this diagram 11
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0146600051 | 27095B | SCREW | |||
| 0155200401 | 92527A | CLIP | |||
| 0155200431 | 92527AA | CLIP | |||
| 22472G0302 | 92527E | CLIP | |||
| 2422289901 | 92527HA | CLIP | |||
| 2758148N60 | 27629N | HARNESS - AIR CONDITIONER | |||
| 2758201N60 | 27629NA | HARNESS - AIR CONDITIONER | |||
| 2758205N60 | 27629NA | HARNESS - AIR CONDITIONER | |||
| 9215003N00 | 27084HA | HOSE - VACUUM | |||
| 9215103N00 | 27084H | HOSE - VACUUM |
of
2
