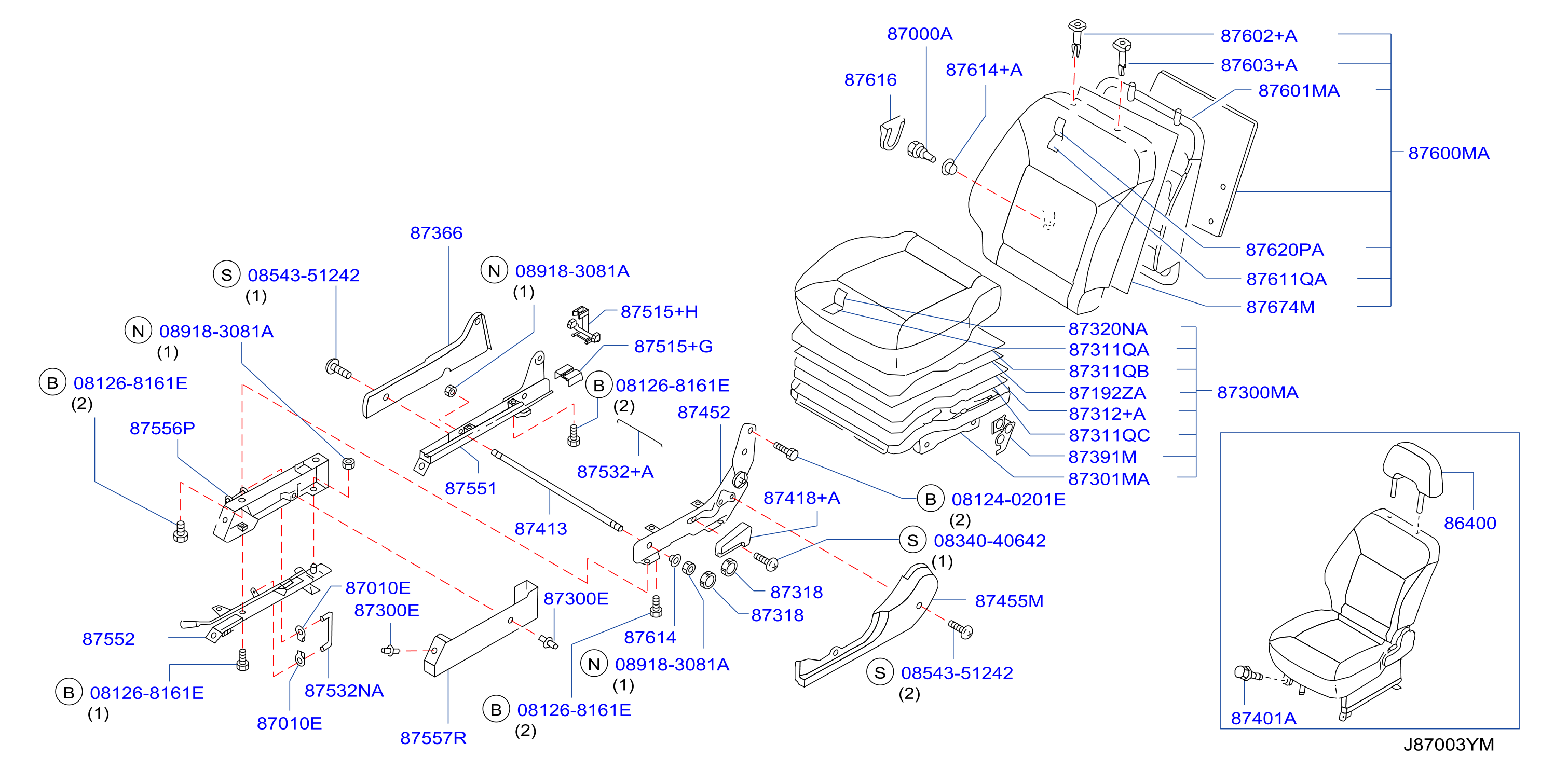

Front Seat Lh Seat
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 870A-003-01 | Front Seat Lh Seat | 2016 - ... |
BODY: T
|
No illustration for this section
The full parts list is available below
Parts in this diagram 32
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155303703 | 87300E | CLIP | |||
| 081240201E | 081240201E | BOLT - HEX | |||
| 081268161E | 081268161E | BOLT - HEX | |||
| 0834040642 | 0834040642 | SCREW - MACHINE | |||
| 0854351242 | 0854351242 | SCREW - TAPPING | |||
| 089183081A | 089183081A | NUT - FLANGE, HEX | |||
| 873515L010 | 87301MA | FRAME ASSY - CUSHION, FRONT SEAT | |||
| 87361VB000 | 87311QA | PAD ASSY - CUSHION, FRONT SEAT | |||
| 87366VB000 | 87366 | COVER - HINGE, FRONT CUSHION LH | |||
| 87413VB000 | 87413 | SHAFT - FRONT LINK, FRONT SEAT |
of
4
