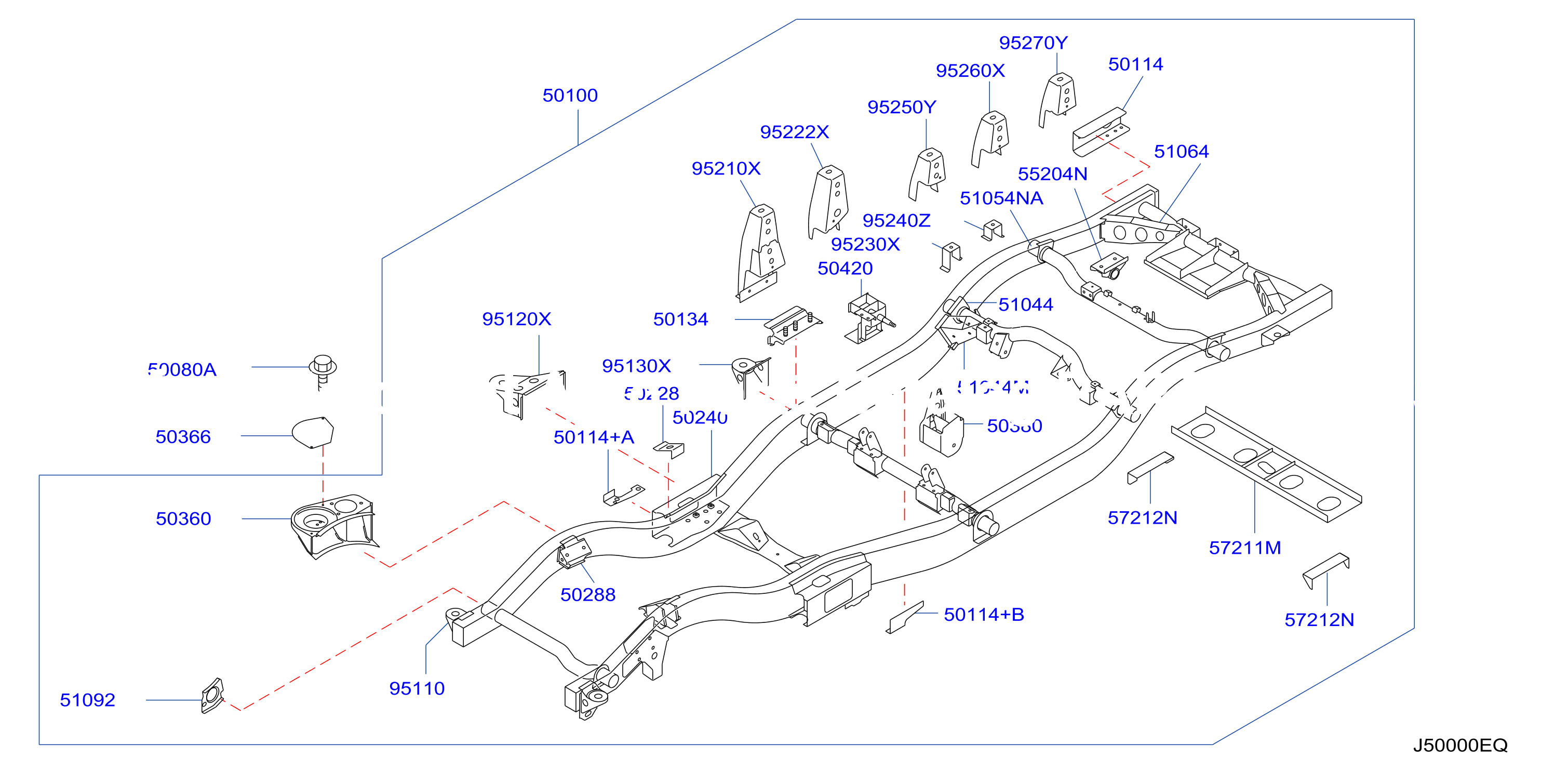

Frame Bracket Part 1
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 500A-002-01 | Frame Bracket Part 1 | 2011 - 2012 |
BODY: T
ENGINE: TD42
|
No illustration for this section
The full parts list is available below
Parts in this diagram 40
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112500913 | 50080A | BOLT | |||
| 501001Y420 | 50100 | FRAME ASSY | |||
| 501001Y421 | 50100 | FRAME ASSY | |||
| 501001Y470 | 50100 | FRAME ASSY | |||
| 501001Y471 | 50100 | FRAME ASSY | |||
| 501001Y760 | 50100 | FRAME ASSY | |||
| 501001Y765 | 50100 | FRAME ASSY | |||
| 501141Y400 | 50114 | REINFORCE - SIDE MEMBER OUTER, RH | |||
| 501141Y412 | 50114+A | REINFORCE - SIDE MEMBER OUTER, RH | |||
| 50134VB000 | 50134 | BRACKET ASSY - CENTER LEVER |
