| Code | Name | Period | Specifications |
|---|---|---|---|

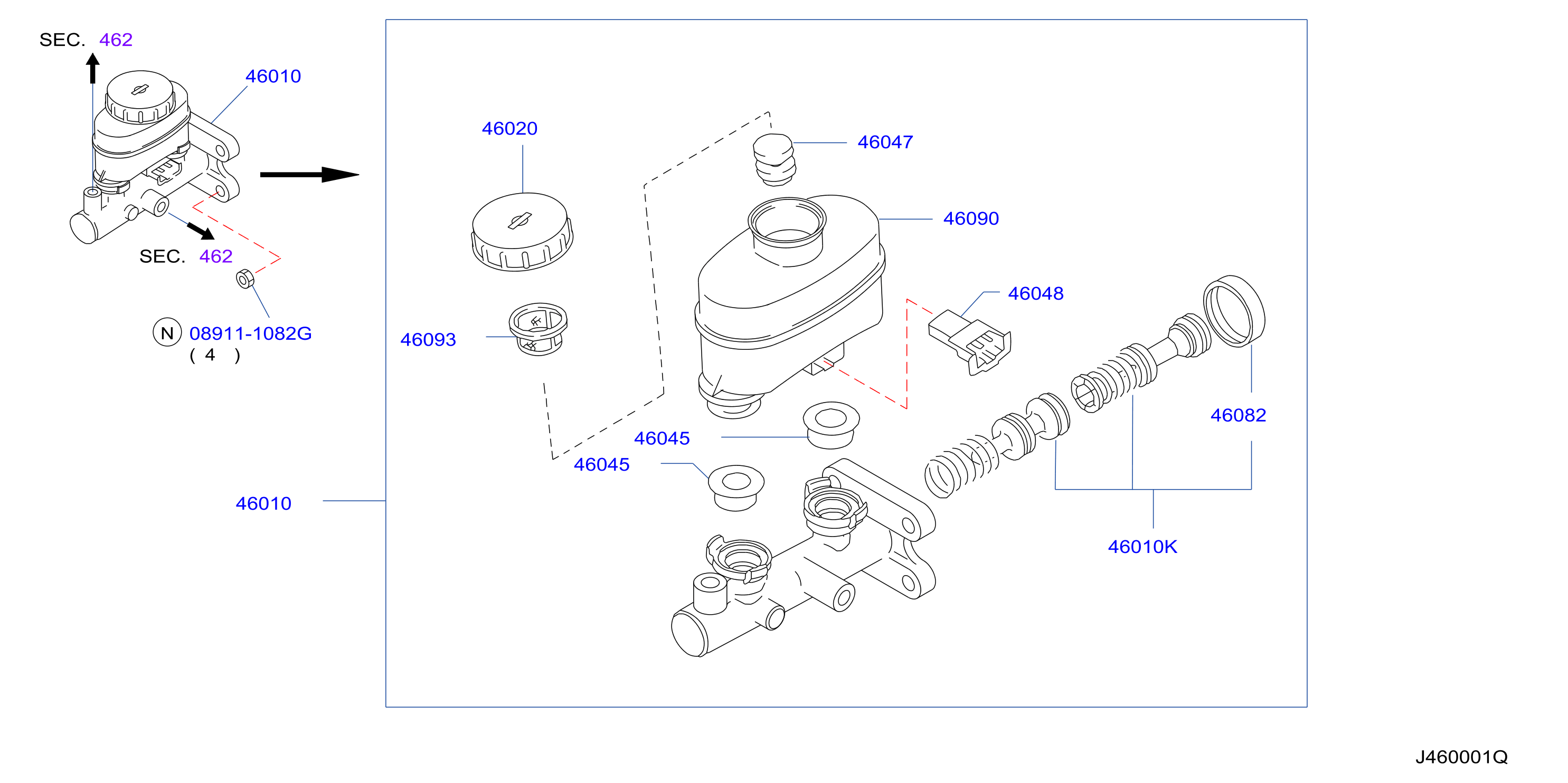

| 460A-001-02 | Brake Master Cylinder | 2004 - 2012 |
ENGINE: TD42
|
No illustration for this section
The full parts list is available below
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 089111082G | 089111082G | NUT - HEX | |||
| 460101Y400 | 46010 | CYLINDER ASSY - BRAKE MASTER | |||
| 460110T326 | 46010K | PISTON KIT - TANDEM BRAKE MASTER CYLINDER | |||
| 4602064J01 | 46020 | CAP ASSY - BRAKE OIL RESERVOIR TANK | |||
| 46045W1010 | 46045 | SEAL - RESERVOIR TANK | |||
| 4604764J01 | 46047 | FLOAT - RESERVOIR TANK | |||
| 4604864J01 | 46048 | INDICATOR ASSY - LEVEL, BRAKE OIL | |||
| 4608201A11 | 46082 | RETAINER - PISTON | |||
| 46091VB000 | 46090 | TANK ASSY - BRAKE OIL RESERVOIR | |||
| 4609364J05 | 46093 | STRAINER - BRAKE OIL |
