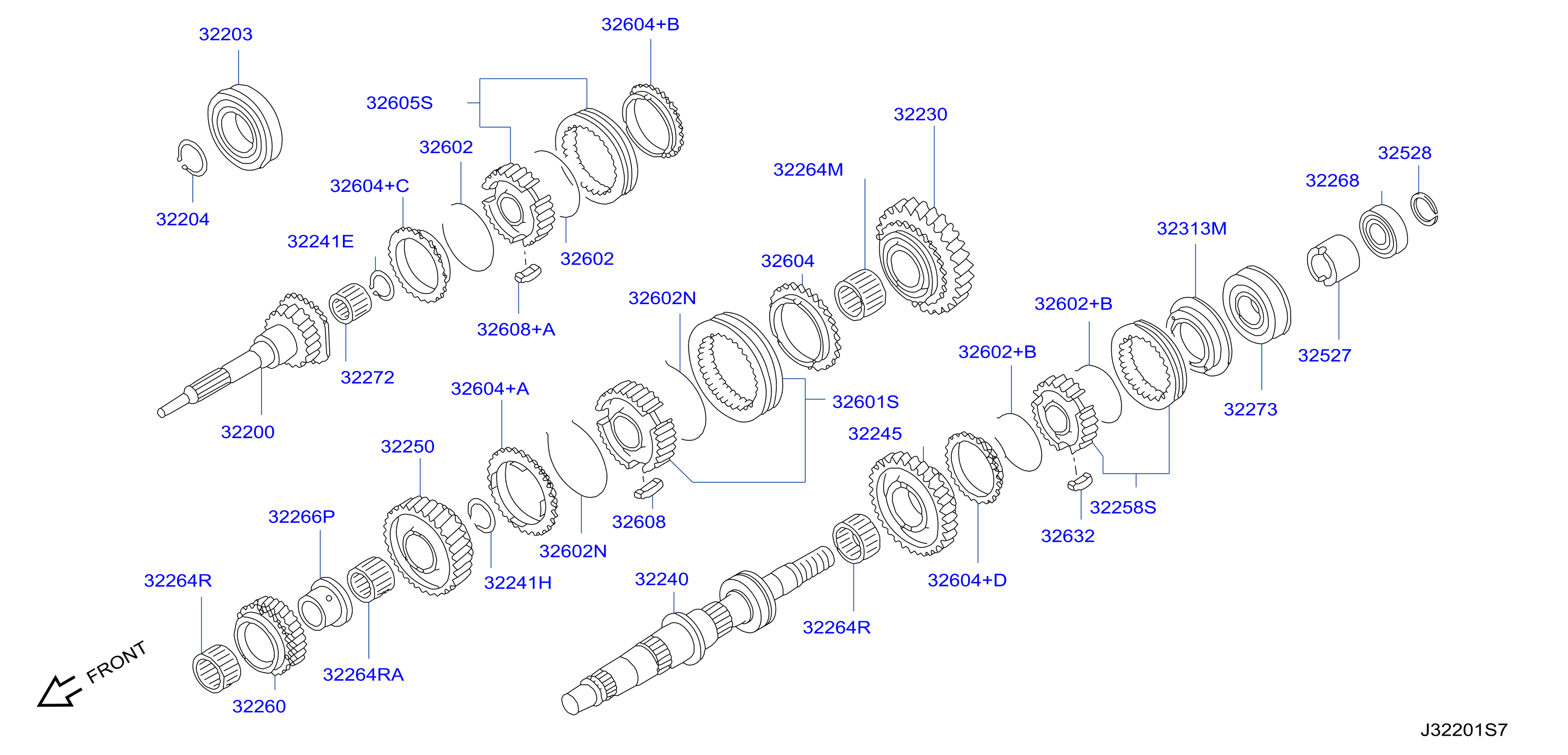

Transmission Gear Main Gear
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 322C-001-01 | Transmission Gear Main Gear | 2011 - 2012 |
ENGINE: TB48E
TRANSMISSION: MT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 64
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 32201VB100 | 32200 | GEAR ASSY - MAIN DRIVE | |||
| 32201VC20A | 32200 | GEAR ASSY - MAIN DRIVE | |||
| 32203VB000 | 32203 | BEARING - MAIN DRIVE | |||
| 32203VB01A | 32203 | BEARING - MAIN DRIVE | |||
| 32204VB010 | 32528 | WASHER - THRUST, C RING | |||
| 32204VB011 | 32528 | WASHER - THRUST, C RING | |||
| 32204VB012 | 32528 | WASHER - THRUST, C RING | |||
| 32204VB013 | 32528 | WASHER - THRUST, C RING | |||
| 32204VB014 | 32528 | WASHER - THRUST, C RING | |||
| 32204VB015 | 32528 | WASHER - THRUST, C RING |
of
7
