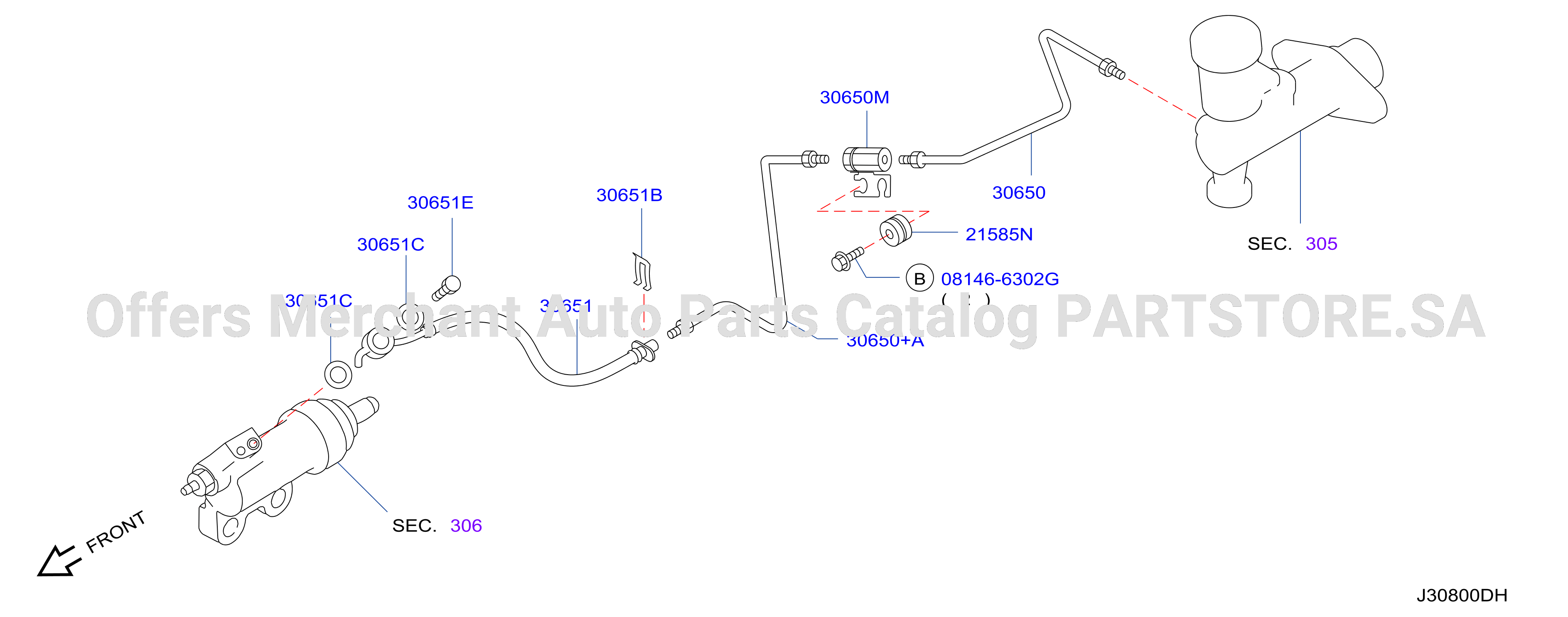

Clutch Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 308C-001-01 | Clutch Piping | 2012 - ... |
ENGINE: ZD30DDTI
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081466302G | 081466302G | BOLT - HEX | |||
| 215855U30A | 21585N | SLEEVE | |||
| 30650VC300 | 30650M | ORIFICE ASSY - CLUTCH | |||
| 30850VC31A | 30650 | TUBE ASSY - CLUTCH | |||
| 30851VC20A | 30650+A | TUBE ASSY - CLUTCH | |||
| 30855VC20A | 30651 | HOSE ASSY - CLUTCH | |||
| 462062J00A | 30651B | SPRING - LOCK | |||
| 46237A4600 | 30651C | GASKET - CLUTCH HOSE | |||
| 463560E00A | 30651E | BOLT - HOSE BRACKET |
