| Code | Name | Period | Specifications |
|---|---|---|---|

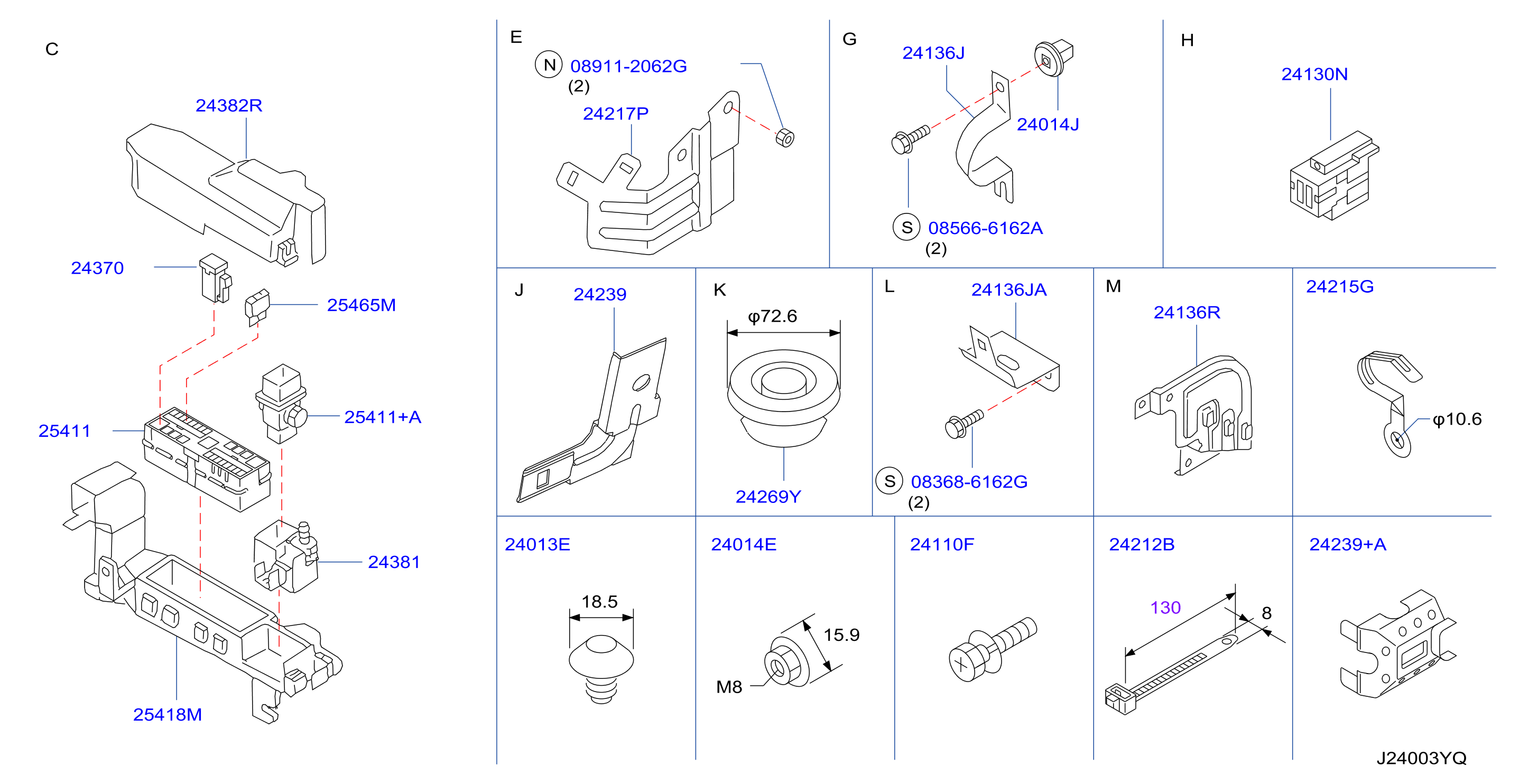

| 240B-011-01 | Wiring Engine Room Fitting | 2004 - 2012 |
BODY: T
ENGINE: TB45S
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112105851 | 24110F | BOLT | ||
| 0122100381 | 24014E | NUT | ||
| 0128100711 | 24014J | GROMMET - SCREW | ||
| 0155200033 | 24212B | CLIP - WIRING HARNESS | ||
| 0155200481 | 24212B | CLIP - WIRING HARNESS | ||
| 0165801501 | 24013E | PLUG | ||
| 0165801691 | 24269Y | PLUG - BLIND | ||
| 083686162G | 083686162G | SCR - HEX HD, PP W | ||
| 085666162A | 085666162A | SCREW - TAPPING | ||
| 089112062G | 089112062G | NUT - HEX | ||
| 2413630P00 | 24136J | BRACKET - EGI HARNESS | ||
| 2413630P0A | 24136J | BRACKET - EGI HARNESS | ||
| 24136VB000 | 24136JA | BRACKET - EGI HARNESS | ||
| 24213VB000 | 24215G | CLIP - WIRING HARNESS | ||
| 24239VB000 | 24217P | BRACKET - HARNESS CLIP | ||
| 24239VB00A | 24217P | BRACKET - HARNESS CLIP | ||
| 24239VB500 | 24217P | BRACKET - HARNESS CLIP | ||
| 24239VB510 | 24239 | BRACKET - HARNESS CLIP | ||
| 24239VC100 | 24239+A | BRACKET - HARNESS CLIP | ||
| 24319C9903 | 25465M | FUSE | ||
| 24319C9907 | 25465M | FUSE | ||
| 24319C9910 | 25465M | FUSE | ||
| 24319C9915 | 25465M | FUSE | ||
| 24319C9920 | 25465M | FUSE | ||
| 24335F6102 | 24130N | DIODE | ||
| 24346VB020 | 24136R | BRACKET - CONNECTOR | ||
| 24346VB02B | 24136R | BRACKET - CONNECTOR | ||
| 2437079910 | 24370 | CONNECTOR ASSY - FUSIBLE LINK | ||
| 24370C9910 | 24370 | CONNECTOR ASSY - FUSIBLE LINK | ||
| 24370C9920 | 24370 | CONNECTOR ASSY - FUSIBLE LINK | ||
| 24370C9960 | 24370 | CONNECTOR ASSY - FUSIBLE LINK | ||
| 24370C9970 | 24370 | CONNECTOR ASSY - FUSIBLE LINK | ||
| 24370C9980 | 24370 | CONNECTOR ASSY - FUSIBLE LINK | ||
| 2438020V00 | 25411+A | HOLDER - FUSIBLE LINK | ||
| 24380VB000 | 25411 | HOLDER - FUSIBLE LINK | ||
| 24381VB000 | 24381 | HOUSING - FUSIBLE LINK HOLDER | ||
| 24382VB500 | 24382R | COVER - FUSIBLE LINK HOLDER | ||
| 24382VC900 | 24382R | COVER - FUSIBLE LINK HOLDER | ||
| 24388VB000 | 25418M | BRACKET - FUSIBLE LINK HOLDER |
