Alternator Alternator Assy
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 231L-001-01 | Alternator Alternator Assy | 2011 - 2012 |
ENGINE: TB48E
|

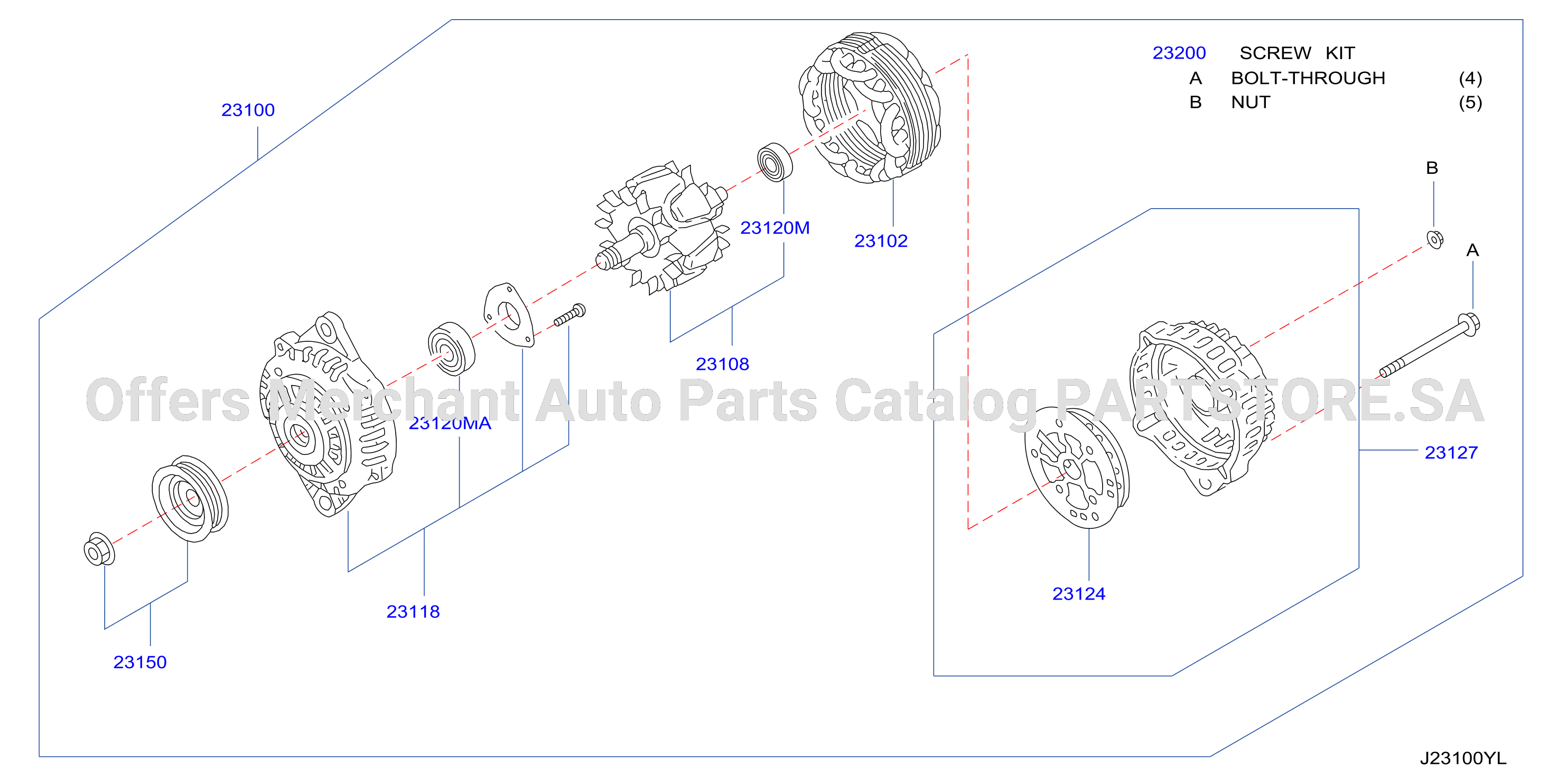

Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 23100VD70A | 23100 | GENERATOR | |||
| 2310231U01 | 23102 | STATOR ASSY | |||
| 23108VB00A | 23108 | ROTOR ASSY | |||
| 23118VD70A | 23118 | COVER ASSY - FRONT | |||
| 231200M000 | 23120M | BEARING - BALL | |||
| 231200M00A | 23120MA | BEARING - BALL | |||
| 23124VD70A | 23124 | RECTIFIER ASSY | |||
| 23127VC200 | 23127 | COVER ASSY - REAR | |||
| 23150VD70A | 23150 | PULLEY ASSY | |||
| 23200CN10A | 23200 | SCREW SET |
