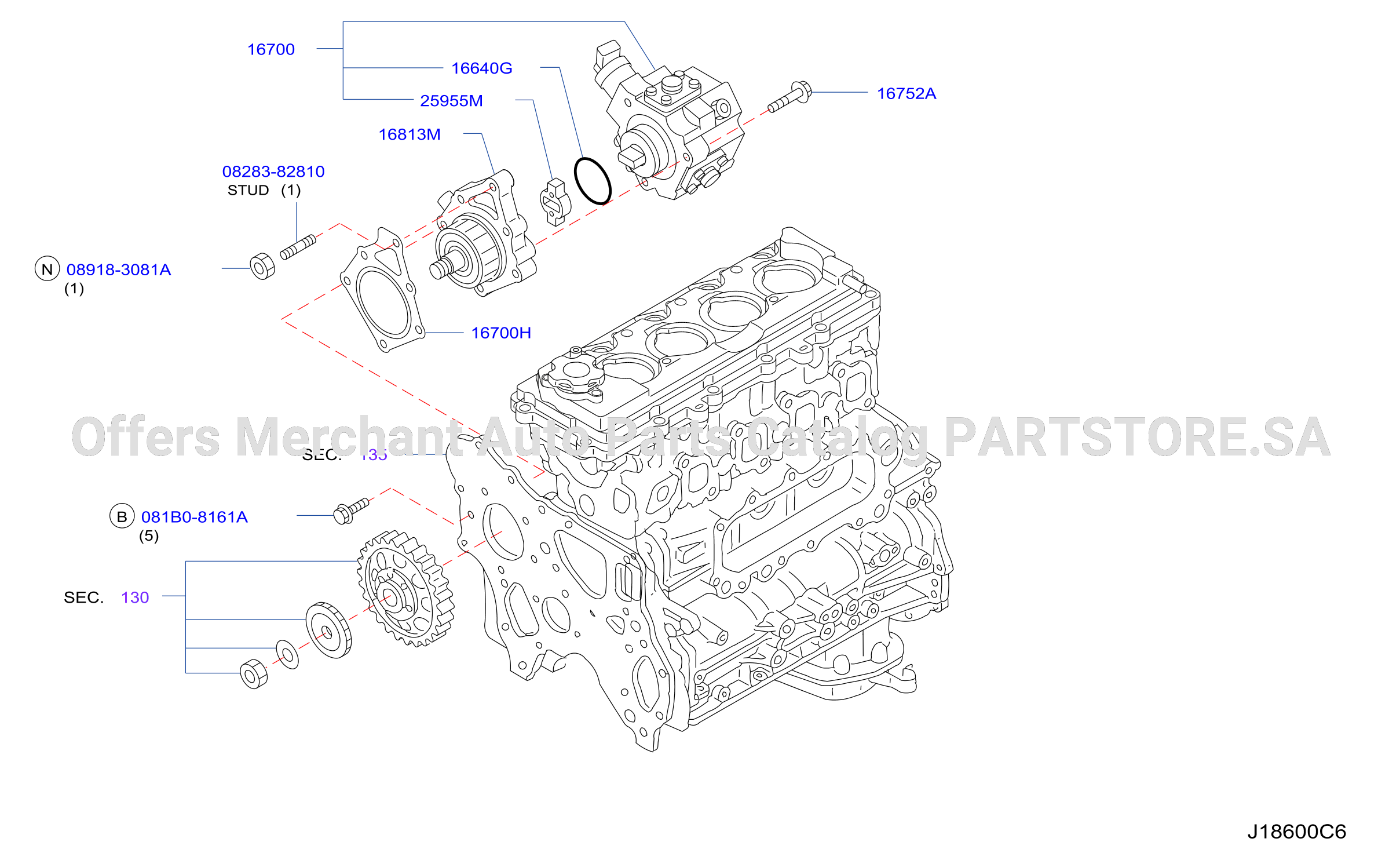

Fuel Injection Pump
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 186A-001-01 | Fuel Injection Pump | 2012 - ... |
ENGINE: ZD30DDTI
|
No illustration for this section
The full parts list is available below
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081B08161A | 081B08161A | BOLT - HEX | |||
| 0828382810 | 0828382810 | BOLT - STUD | |||
| 089183081A | 089183081A | NUT - FLANGE, HEX | |||
| 16633MA70A | 16752A | BOLT | |||
| 16700VZ20D | 16700 | PUMP ASSY - INJECTION | |||
| 16700VZ20E | 16700 | PUMP ASSY - INJECTION | |||
| 16701MA70A | 16640G | SEAL - O RING | |||
| 16701MA71A | 16700H | GASKET - INJECTION PUMP | |||
| 16751MA70A | 25955M | COUPLING | |||
| 16812MA70A | 16813M | BRACKET - INJECTION PUMP |
