| Code | Name | Period | Specifications |
|---|---|---|---|

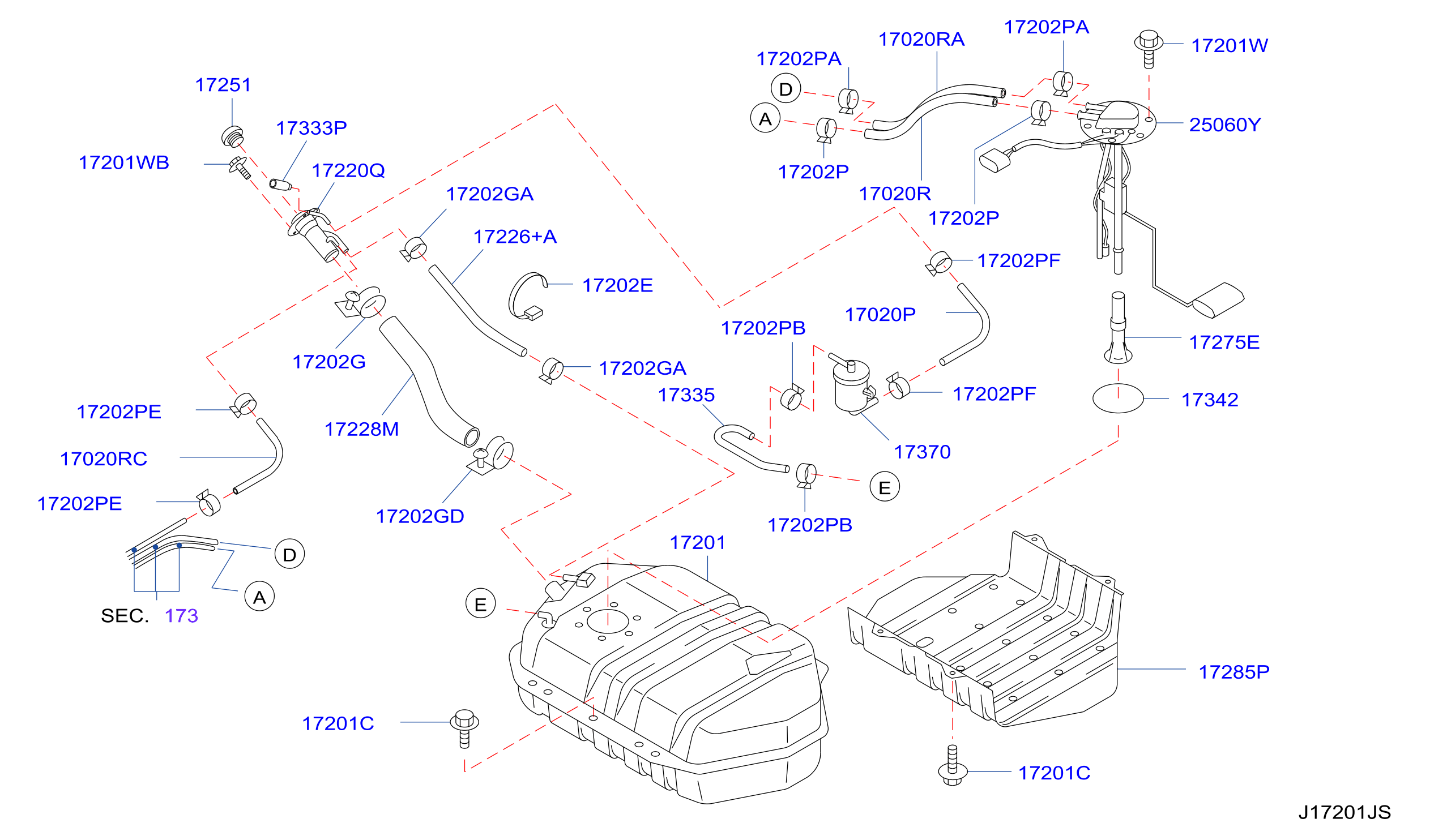

| 172C-002-02 | Fuel Tank Main Tank Sub Tank | 2014 - ... |
ENGINE: ZD30DDTI
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 1737056E01 | 17370 | VALVE ASSY - CHECK | ||
| 0112104831 | 17201C | BOLT | ||
| 0143101124 | 17201WB | SCREW | ||
| 0143600291 | 17201W | SCREW | ||
| 0155200431 | 17202E | CLIP | ||
| 0155500911 | 17202GD | CLAMP | ||
| 0155500951 | 17202G | CLAMP | ||
| 0155800401 | 17202PB | CLAMP | ||
| 0155800411 | 17202PA | CLAMP | ||
| 0155800431 | 17202P | CLAMP | ||
| 16439V500B | 17202GA | CLAMP | ||
| 16439V501B | 17202GA | CLAMP | ||
| 17202VD23A | 17201 | TANK ASSY - FUEL | ||
| 172211Y403 | 17220Q | TUBE ASSY - FILLER | ||
| 172261Y401 | 17226+A | HOSE - VENTILATION | ||
| 172281Y406 | 17228M | HOSE - FILLER | ||
| 17251C9960 | 17251 | CAP ASSY - FILLER | ||
| 1727501J00 | 17275E | GUIDE ASSY - OUTLET | ||
| 17275MD20A | 17275E | GUIDE ASSY - OUTLET | ||
| 17285VB000 | 17285P | PROTECTOR - FUEL TANK | ||
| 17333C8200 | 17333P | COVER - EVAPORATION TUBE | ||
| 173351Y405 | 17020P | TUBE - VENTILATION, FUEL TANK | ||
| 17335VB000 | 17335 | HOSE - EVAPORATION | ||
| 1734201A00 | 17342 | SEAL - O RING, FUEL GAUGE | ||
| 25060VB30E | 25060Y | FUEL LEVEL SENSOR | ||
| A874220020 | 17020RA | HOSE - FUEL, FUEL TANK | ||
| A874220040 | 17020R | HOSE - FUEL, FUEL TANK |
