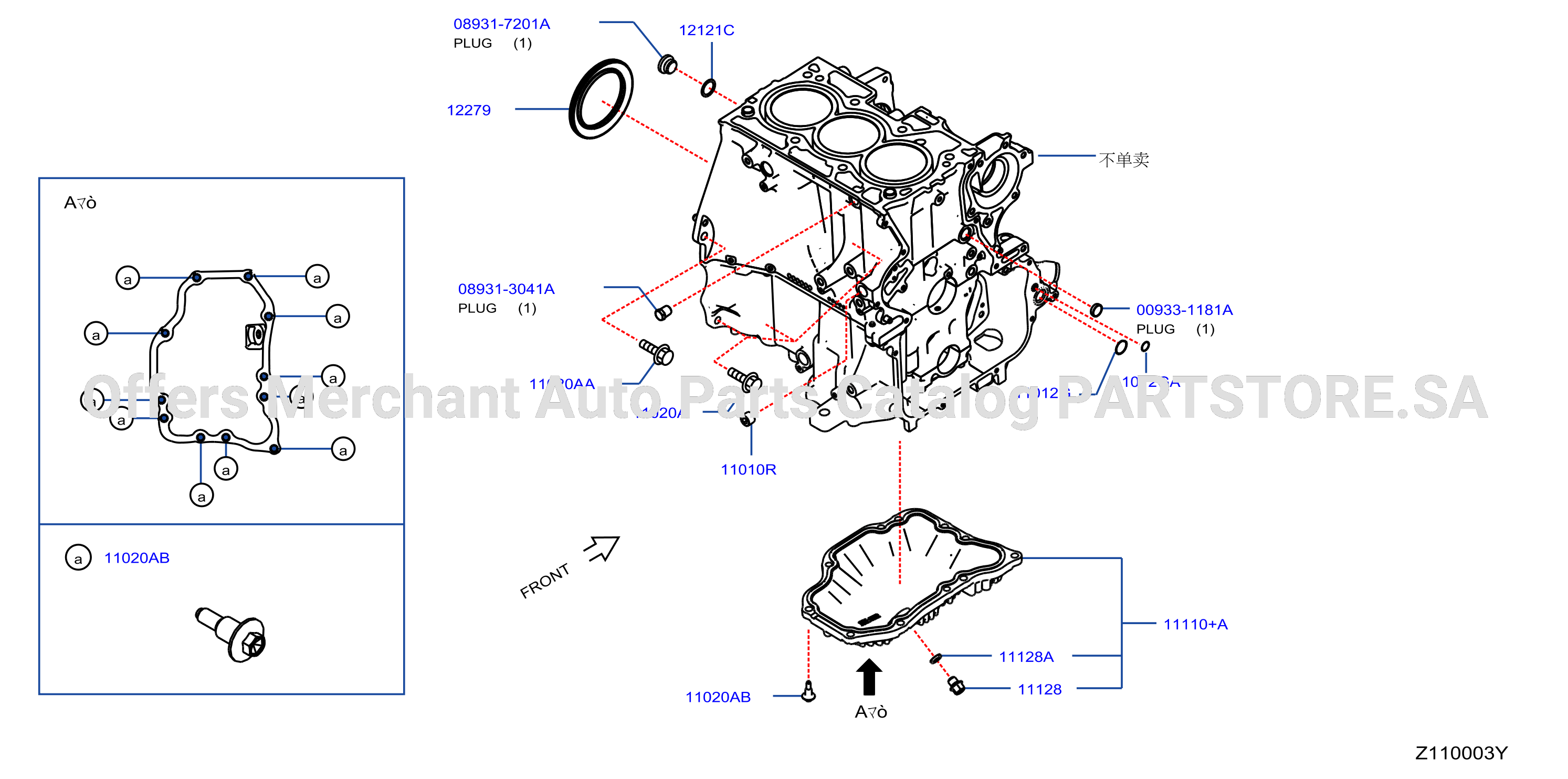

Cylinder Block Oil Pan Assembly
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 110B-002-01 | Cylinder Block Oil Pan Assembly | 2023 - ... |
ENGINE: KR15
TRANSMISSION: REDUCER
|
No illustration for this section
The full parts list is available below
Parts in this diagram 14
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 009331181A | 009331181A | PLUG | |||
| 01125A1171 | 11020A | BOLT | |||
| 0135100012 | 12121C | GASKET | |||
| 089313041A | 089313041A | PLUG - THREAD | |||
| 089317201A | 089317201A | PLUG - THREAD | |||
| 1102601M02 | 11128A | WASHER - DRAIN PLUG | |||
| 11051D0100 | 11010R | PLUG | |||
| 111106UA0D | 11110+A | PAN ASSY - OIL | |||
| 111106UA1D | 11110+A | PAN ASSY - OIL | |||
| 1112801M0B | 11128 | PLUG - DRAIN |
