| Code | Name | Period | Specifications |
|---|---|---|---|

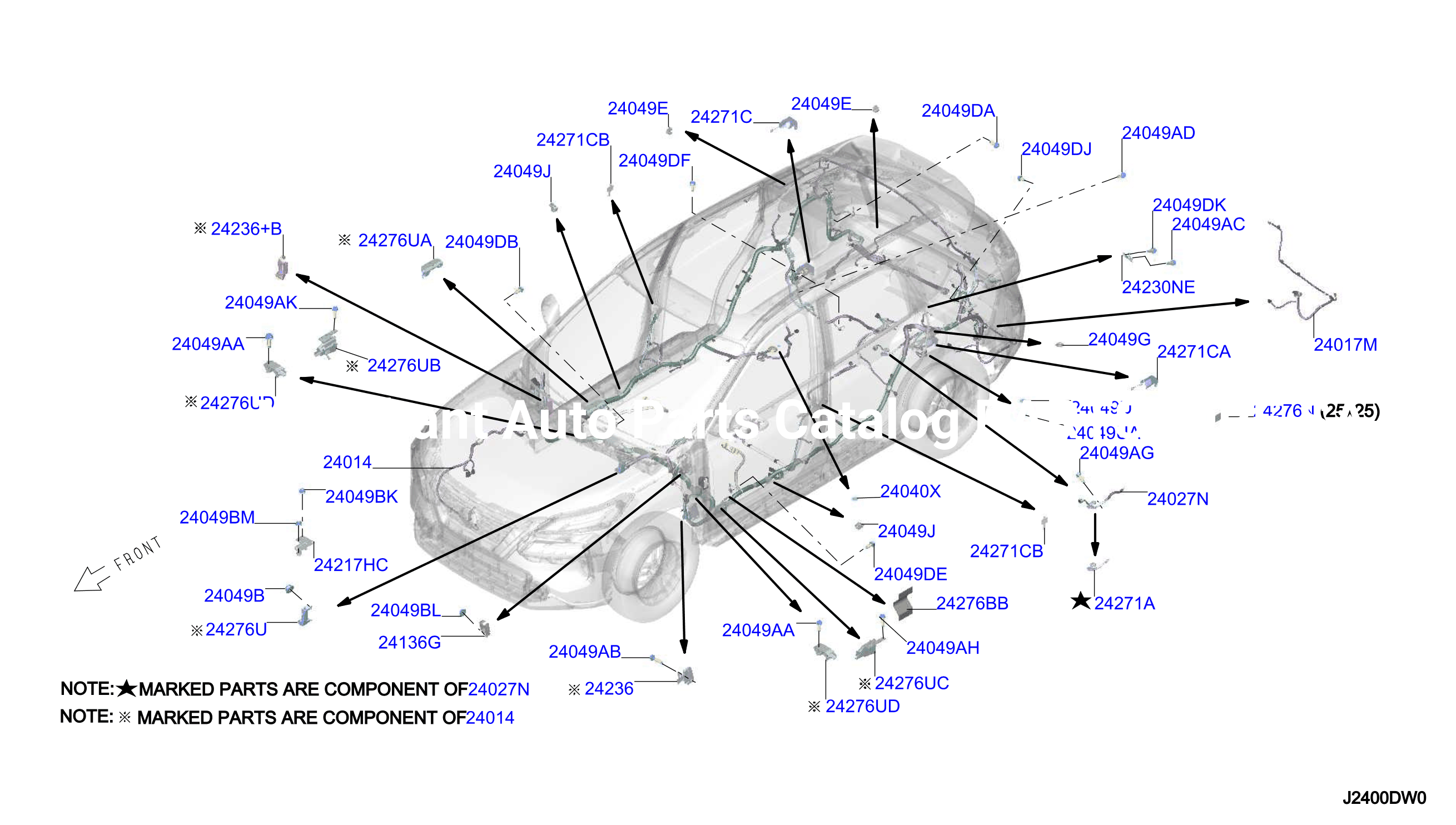

| 240C-009-01 | Wiring Body | 2022 - ... |
BODY: 2ROW
ENGINE: KR15DDT
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125A6051 | 24049AA | BOLT | ||
| 01125A6101 | 24049AB | BOLT | ||
| 01225A6011 | 24049B | NUT | ||
| 01225A6051 | 24049BL | NUT | ||
| 242750E000 | 24271CB | PROTECTOR - HARNESS | ||
| 0145600031 | 24049DA | SCREW | ||
| 0145600411 | 24049DK | SCREW | ||
| 0165800033 | 24049G | PLUG | ||
| 240956RP0A | 24027N | HARNESS - SUB, TAIL | ||
| 242106RA0B | 24049J | CLAMP | ||
| 242306RU1C | 24230NE | BRACKET | ||
| 242366RA1B | 24236+B | BRACKET - HARNESS CONNECTOR | ||
| 242366RA2A | 24236 | BRACKET - HARNESS CONNECTOR | ||
| 242706RM1C | 24276U | PROTECTOR - HARNESS | ||
| 242706RM1D | 24276UA | PROTECTOR - HARNESS | ||
| 242706RN0A | 24271A | PROTECTOR - HARNESS | ||
| 242706UM0B | 24276UB | PROTECTOR - HARNESS | ||
| 242706UM0C | 24276UC | PROTECTOR - HARNESS | ||
| 242706UM0D | 24276UD | PROTECTOR - HARNESS | ||
| 242716RA0A | 24276N | PROTECTOR - HARNESS | ||
| 24271N7100 | 24276BB | PROTECTOR - HARNESS | ||
| 242726RA0A | 24271C | PROTECTOR - HARNESS | ||
| 242726RA1A | 24271CA | PROTECTOR - HARNESS | ||
| 243186RU1A | 24217HC | BRACKET | ||
| 24346JG02A | 24136G | BRACKET - CONNECTOR | ||
| 36457R8000 | 24049E | CLIP | ||
| 64891W5000 | 24049U | COVER - HOLE |
