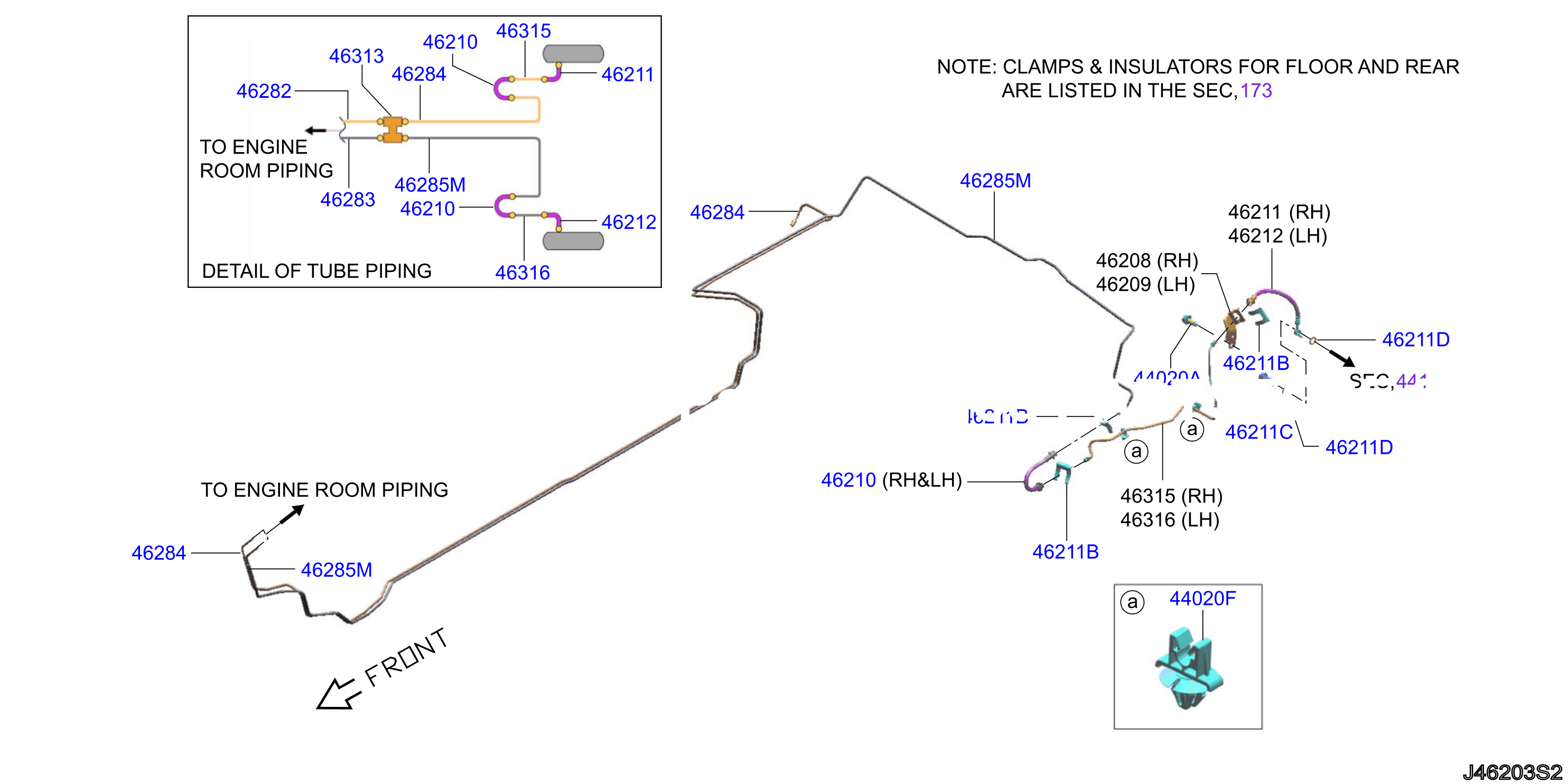

Brake Piping Control Rear Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462CC-002-01 | Brake Piping Control Rear Piping | 2017 - 2017 |
BODY: 2ROW
GRADE: EA7
|
Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N8021 | 44020A | BOLT | |||
| 462062J00A | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 46208JY01A | 46208 | BRACKET - BRAKE HOSE, RH | |||
| 46209JY01A | 46209 | BRACKET - BRAKE HOSE, LH | |||
| 462104CE0C | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 462104CE0D | 46211 | HOSE ASSY - BRAKE, REAR RH | |||
| 462104CE0E | 46212 | HOSE ASSY - BRAKE, REAR LH | |||
| 46237A4600 | 46211D | GASKET - BRAKE HOSE | |||
| 462824CE0A | 46282 | TUBE ASSY - BRAKE, REAR | |||
| 462824CE1A | 46282 | TUBE ASSY - BRAKE, REAR |
of
3
