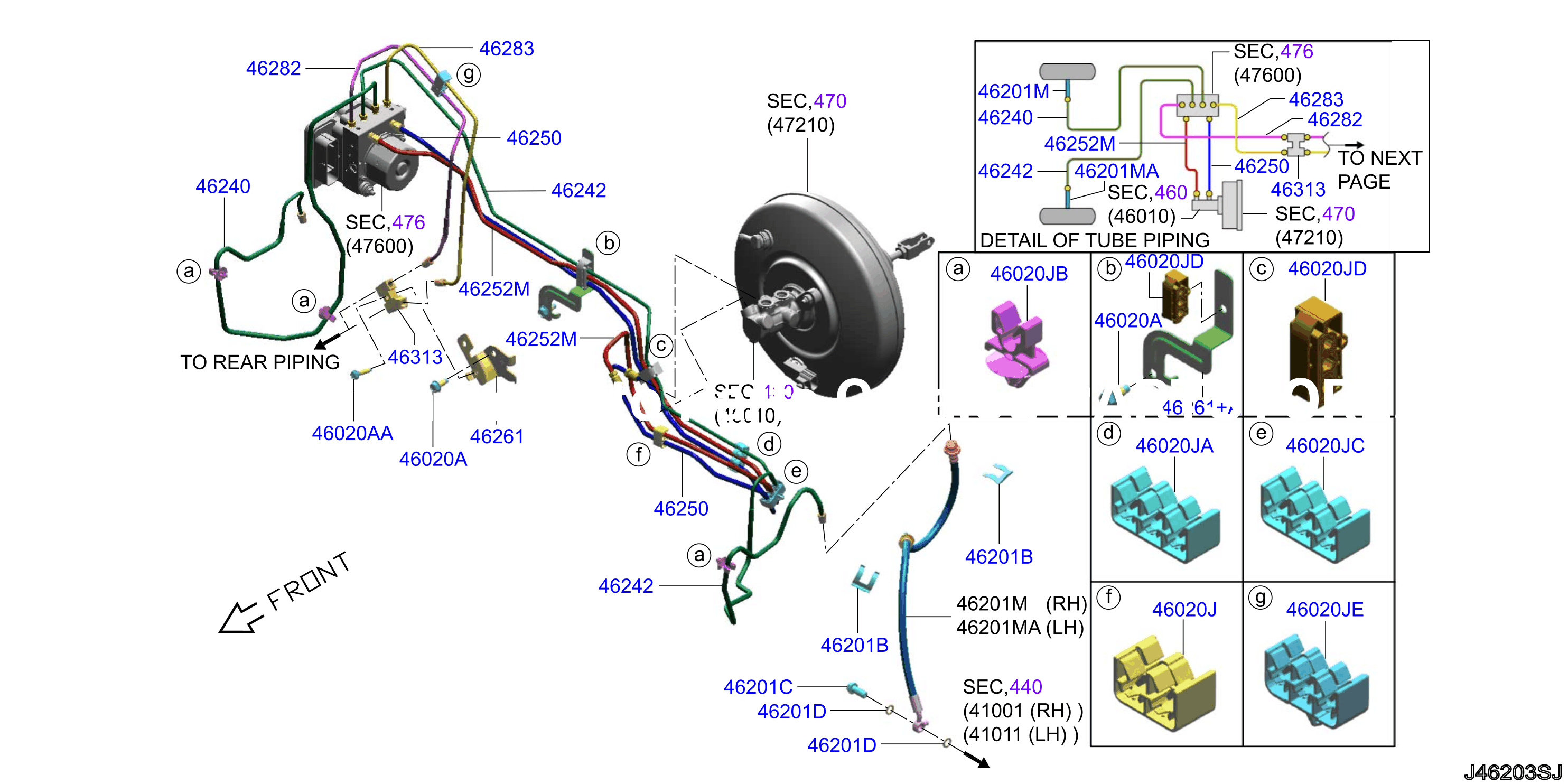

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462B-001-01 | Brake Piping Control Front Piping | 2017 - ... |
BODY: 2ROW
ENGINE: MR20DD
|
No illustration for this section
The full parts list is available below
Parts in this diagram 35
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A8031 | 46020A | BOLT | |||
| 01125N6041 | 46020AA | BOLT | |||
| 01125N8021 | 46020A | BOLT | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462104CE0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462104CE0B | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 462104CE1A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 462404BC0C | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 462404CE0A | 46240 | TUBE ASSY - BRAKE, FRONT RH |
of
4
