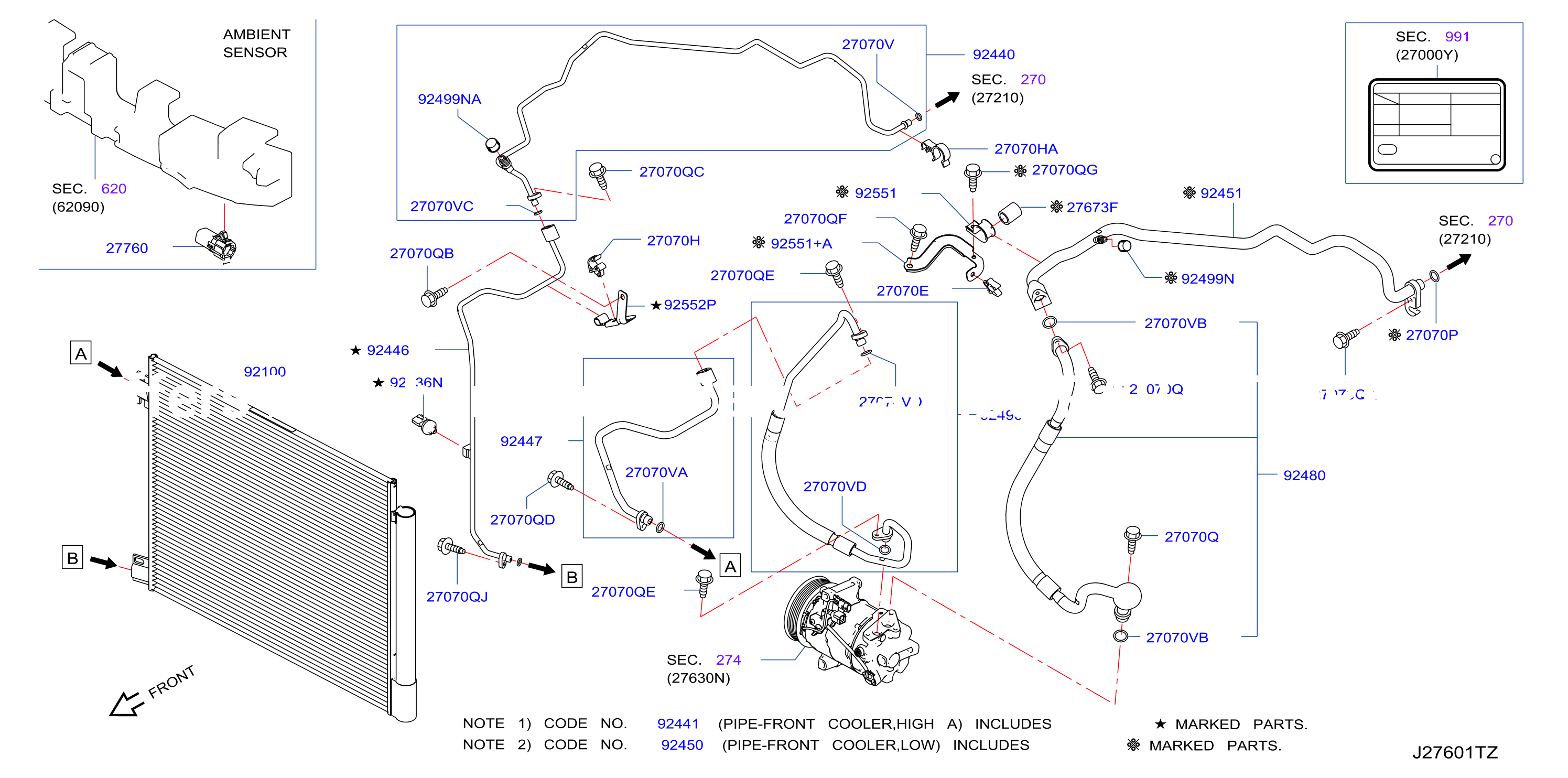

Condenser Liquid Tank Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276B-001-01 | Condenser Liquid Tank Piping | 2014 - 2017 |
BODY: 3ROW
ENGINE: R9M
|
No illustration for this section
The full parts list is available below
Parts in this diagram 32
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A6021 | 27070QB | BOLT | |||
| 01125A6051 | 27070Q | BOLT | |||
| 01125N6011 | 27070QB | BOLT | |||
| 01125N6021 | 27070Q | BOLT | |||
| 01125N6031 | 27070QA | BOLT | |||
| 16439AL602 | 27070H | CLAMP | |||
| 277223RA0A | 27760 | SENSOR ASSY - AMBIENT | |||
| 46271EW00A | 27070E | CLIP | |||
| 921004BE0A | 92100 | CONDENSER & LIQUID TANK ASSY | |||
| 921004BE0B | 92100 | CONDENSER & LIQUID TANK ASSY |
of
4
