| Code | Name | Period | Specifications |
|---|---|---|---|

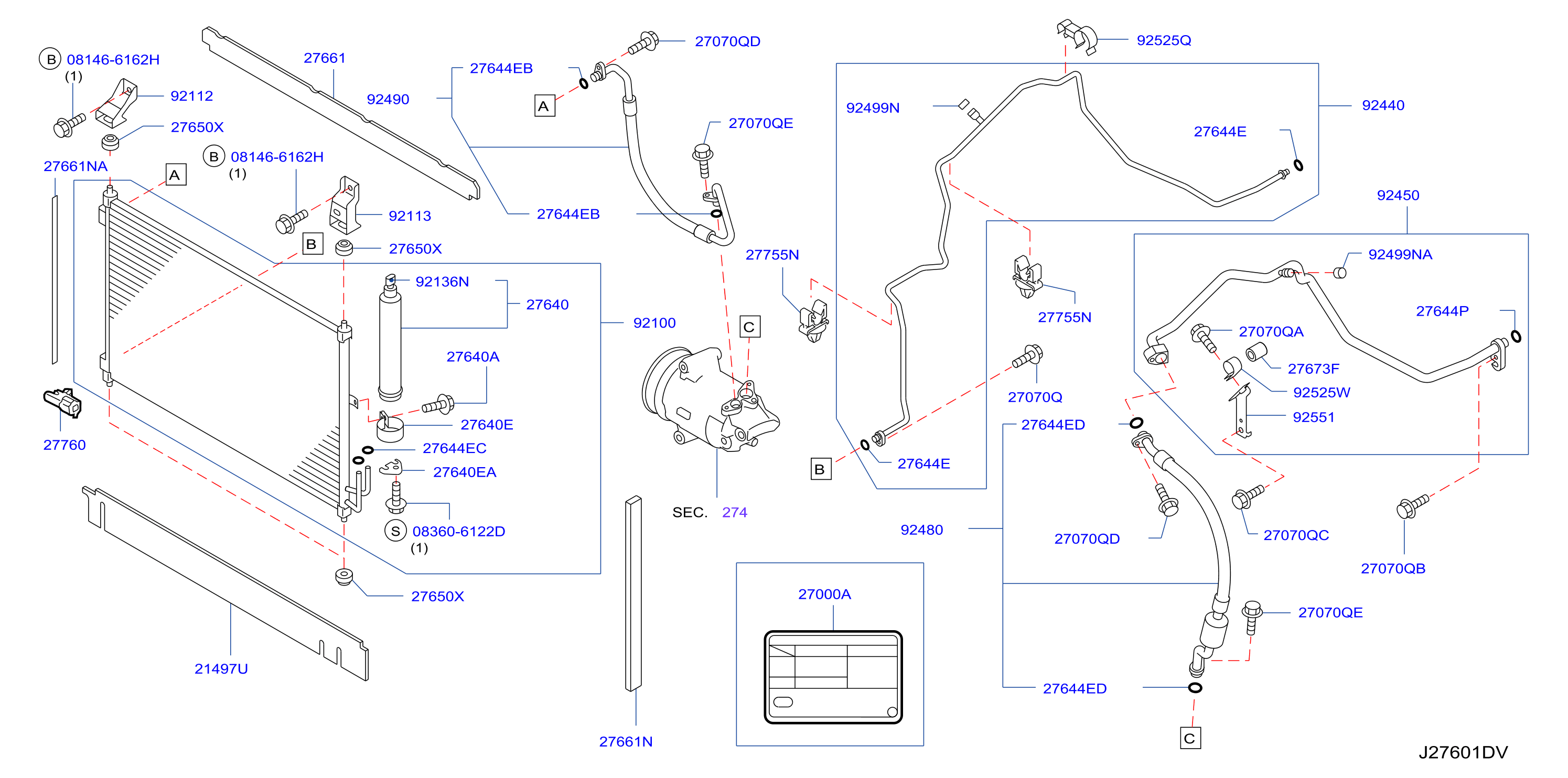

| 276C-002-01 | Condenser Liquid Tank Piping | 2010 - ... |
BODY: W
ENGINE: M9R
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125N6011 | 27070QA | BOLT | ||
| 01125N6021 | 27070Q | BOLT | ||
| 01125N6031 | 27070QB | BOLT | ||
| 01125N6121 | 27070Q | BOLT | ||
| 081466162H | 081466162H | BOLT - HEX | ||
| 083606122D | 083606122D | SCREW - MACHINE | ||
| 214963UC0A | 27661 | SEAL - CONDENSER | ||
| 214973UC0A | 21497U | SEAL - LOWER | ||
| 21497JG70A | 21497U | SEAL - LOWER | ||
| 2709079923 | 27000A | LABEL - AIR CONDITIONER | ||
| 277221VA0A | 27760 | SENSOR ASSY - AMBIENT | ||
| 2772231U00 | 27760 | SENSOR ASSY - AMBIENT | ||
| 462713ZA0A | 27755N | INSULATOR | ||
| 4627160U05 | 27755N | INSULATOR | ||
| 92100JG000 | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 92112JG000 | 92112 | BRACKET ASSY - CONDENSER | ||
| 92113JG00A | 92113 | BRACKET ASSY - CONDENSER | ||
| 921184M400 | 27650X | MOUNTING - RUBBER, CONDENSER UPPER | ||
| 92128CB01A | 27640A | SCREW | ||
| 92131JF00A | 27640 | TANK ASSY - LIQUID | ||
| 92131JF01A | 27640 | TANK ASSY - LIQUID | ||
| 92131JK20A | 27640 | TANK ASSY - LIQUID | ||
| 921354W000 | 27640E | BRACKET - LIQUID TANK | ||
| 921361FA0A | 92136N | SENSOR ASSY - PRESSURE | ||
| 921366J010 | 92136N | SENSOR ASSY - PRESSURE | ||
| 921454W000 | 27640EA | BRACKET - LIQUID TANK | ||
| 92184JG00A | 27661N | SEAL - CONDENSER, SIDE | ||
| 92184JG70A | 27661NA | SEAL - CONDENSER, SIDE | ||
| 92440JG600 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92440JG60B | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92450JG700 | 92450 | PIPE - FRONT COOLER, LOW | ||
| 92450JG70B | 92450 | PIPE - FRONT COOLER, LOW | ||
| 92471N8210 | 27644E | SEAL - O RING | ||
| 92472N8210 | 27644EB | SEAL - O RING | ||
| 92473N8210 | 27644P | SEAL - O RING | ||
| 92474N8210 | 27644ED | SEAL - O RING | ||
| 92480JG700 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 92490JG700 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 9249989920 | 92499N | CAP - CHARGE VALVE | ||
| 9249989921 | 92499NA | CAP - CHARGE VALVE | ||
| 92499JG00A | 92499N | CAP - CHARGE VALVE | ||
| 92499JG00B | 92499NA | CAP - CHARGE VALVE | ||
| 9255164Y01 | 92525Q | CLIP | ||
| 92551JG00A | 92551 | BRACKET - PIPE | ||
| 92555JG00A | 92525W | CLIP | ||
| 92557JG00A | 27673F | PROTECTOR - CLAMP TUBE |
